SPCW130.100 SiWay RF-Expander

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54554-F101-B100
  • 4025515471196
Produktinformasjon "SPCW130.100 SiWay RF-Expander"

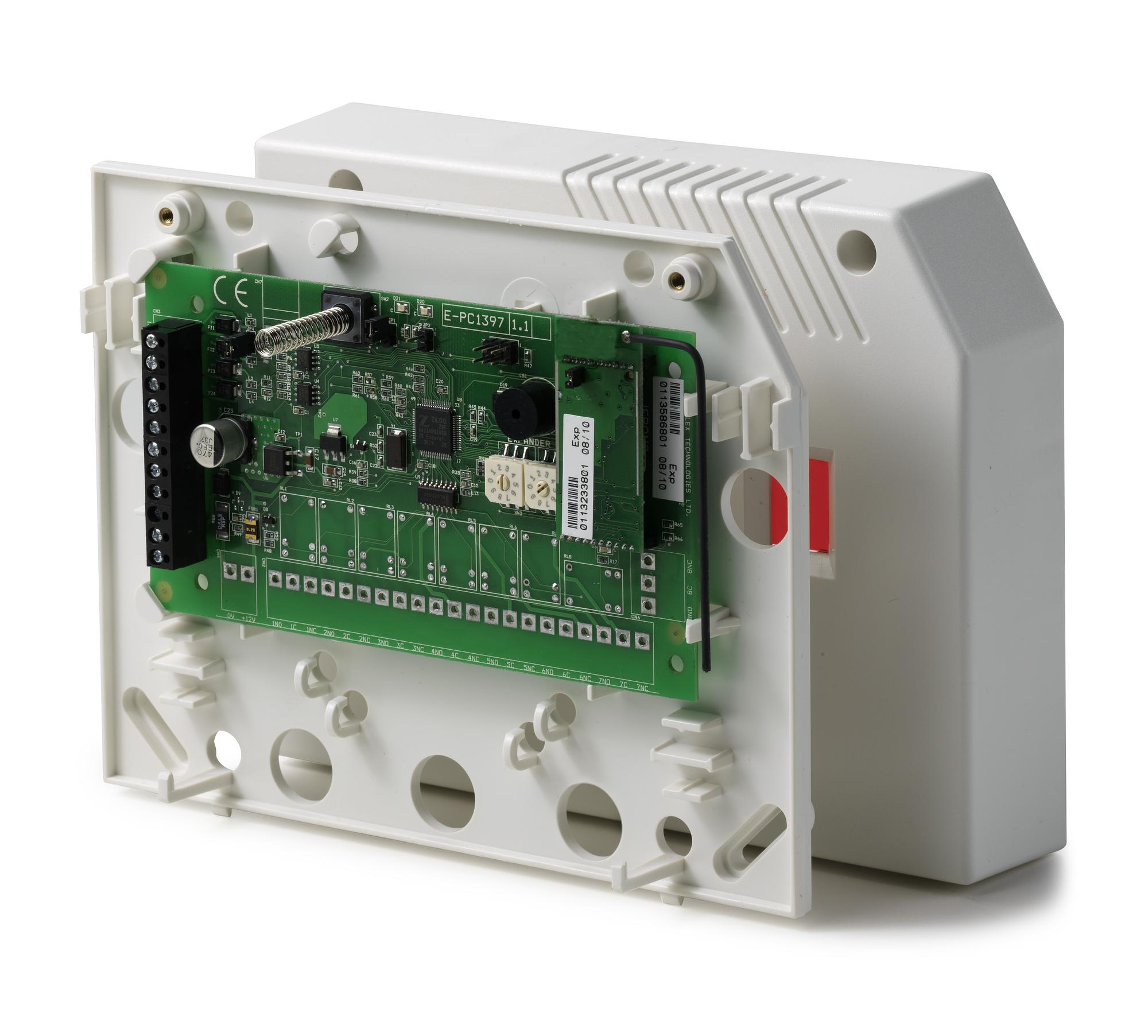

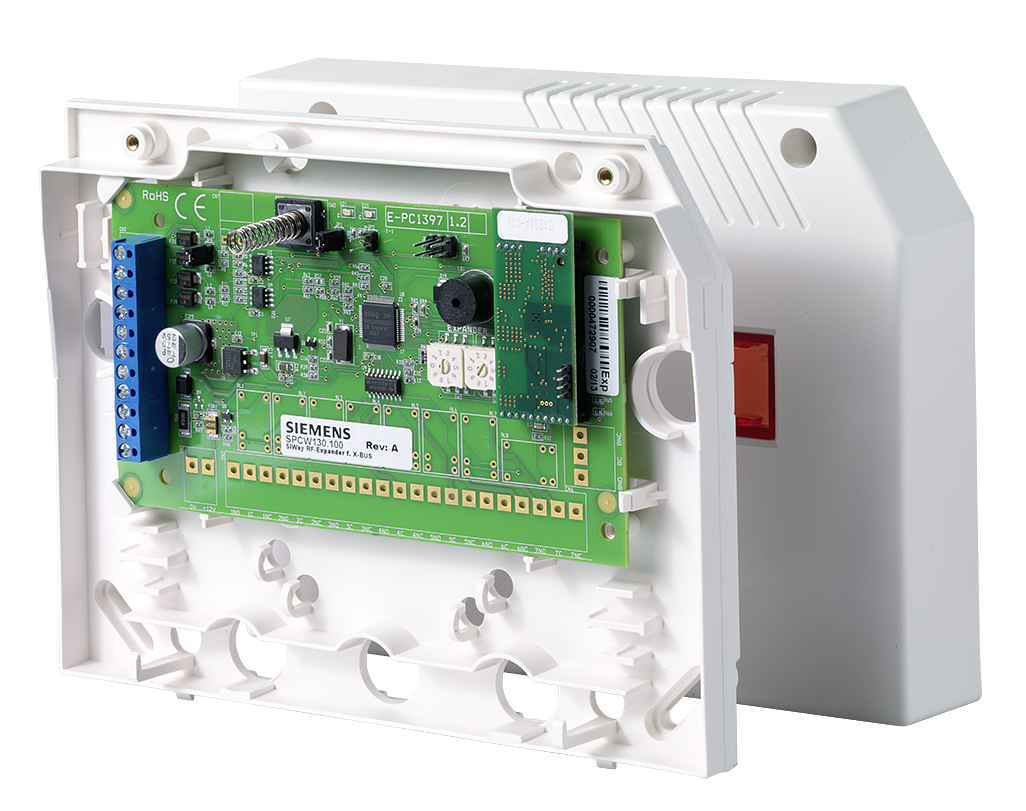

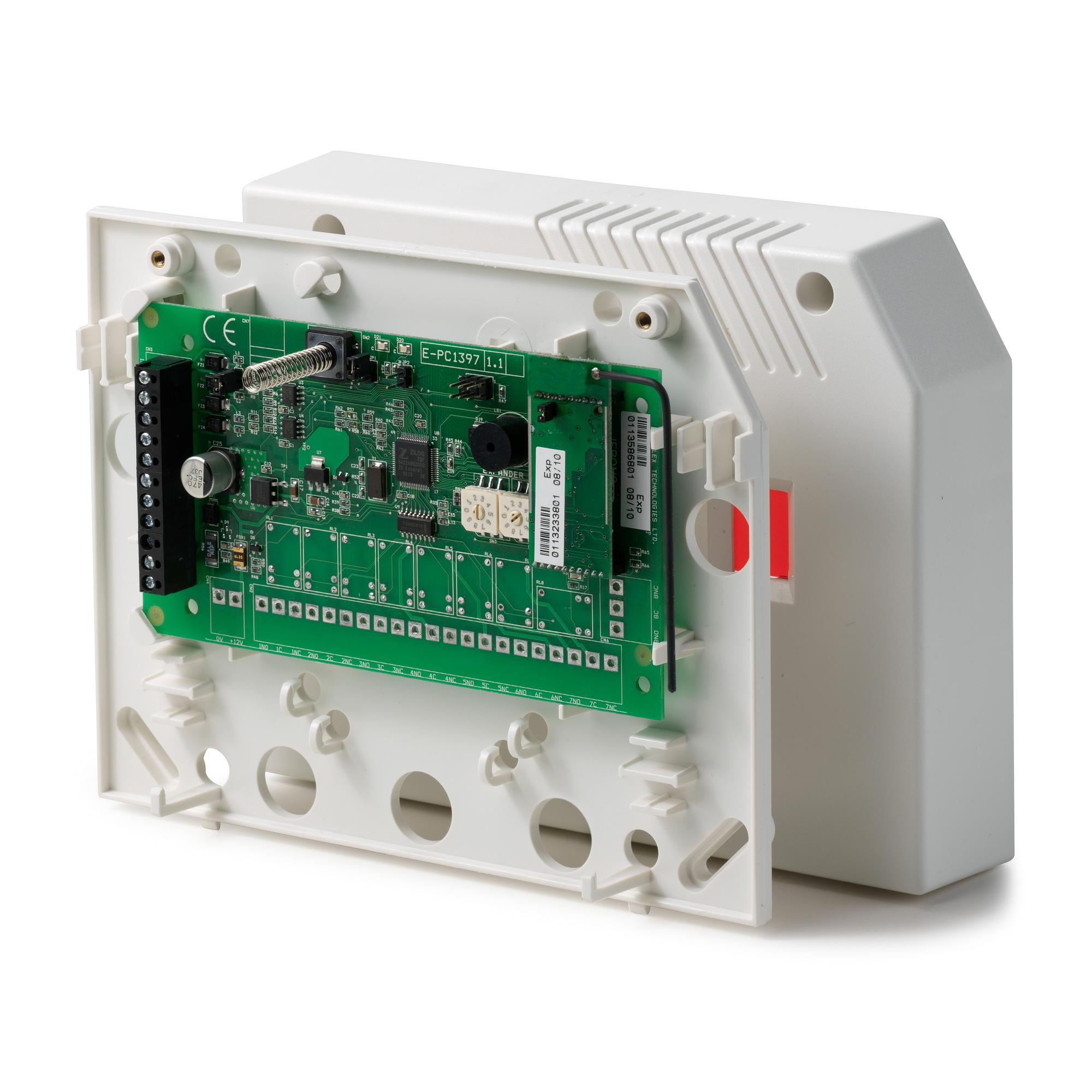

The SPCW130.100 SiWay RF-expander is connected to the X-BUS and provides a wireless access point for the Intrunet wireless detectors and remote controls linked to the system.The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Bruttovekt (KG) 0.4
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515471196
Mindestabnahme 1
ECCN N
Materialkode V54554-F101-B100
Netto vekt 0.380
Statistisk kode 85311030
Opprinnelsesland PH
ECCN: N
Quiescent current: Max. 60 mA at 12 VDC
Operating current: Max. 60 mA at 12 VDC
Weight: 0.340 kg
Interfaces: X-BUS (in, out, branch)
Tamper contact: Front spring tamper
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Tamper switch: Ja
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 200 x 153 x 47 mm (housing), 150 x 82 x 20 mm (PCB)
