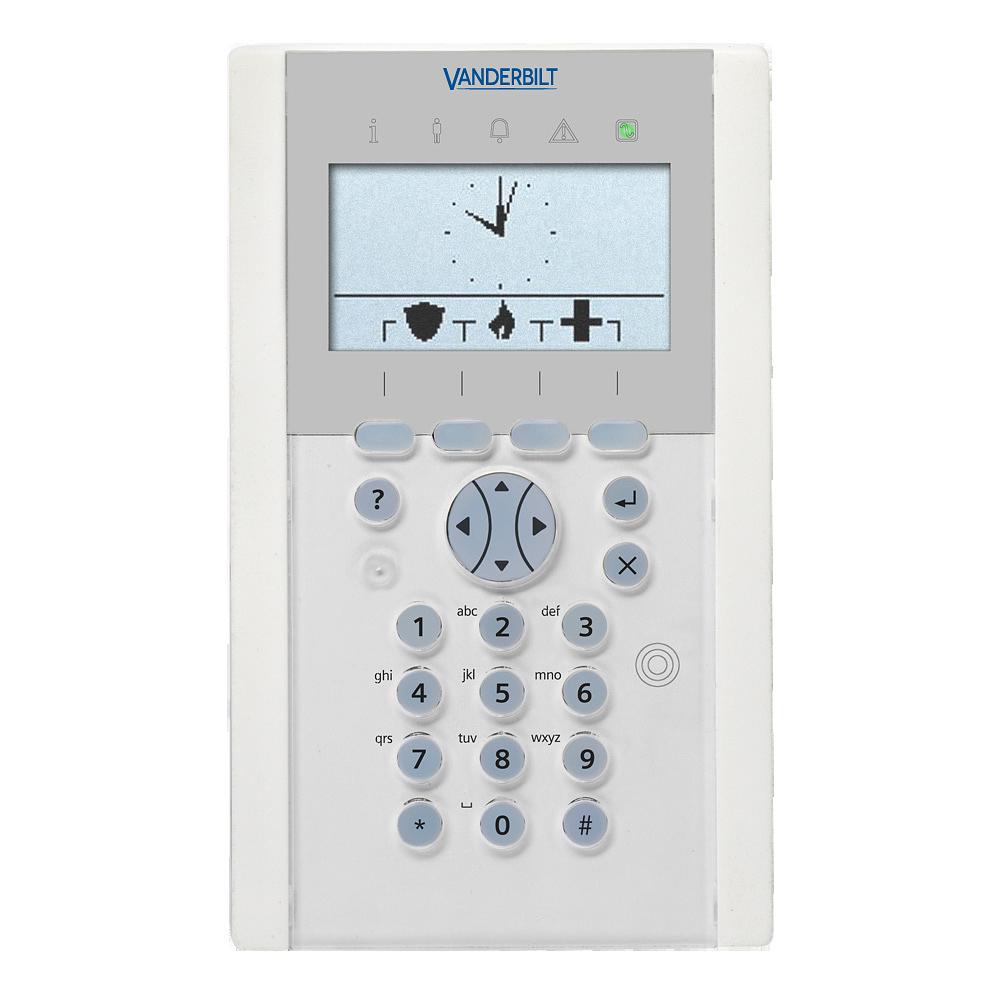

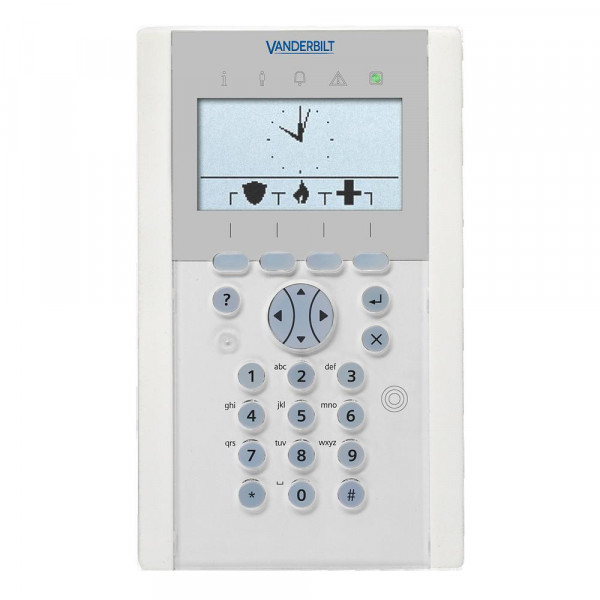

SPCK623.100 Comfort Keypad w. Audio/CR

SPCK623.100 Comfort Keypad w. Audio/CR
Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54543-F111-A100
  • EAN/UPC Strekkode: 4025515470977
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon Software
Beskrivelse
Lukk meny
Produktinformasjon "SPCK623.100 Comfort Keypad w. Audio/CR"
The SPCK623.100 comfort keypad is ideal to operate single area and multi area applications in a user friendly way. The 4 soft keys and the multi dimensional navigation key allow an easy operation with a minimum of operation steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. Customer logo, emergency or quick set functions can be displayed in idle state. The integrated card reader enables quick setting / unsetting of areas by use of a proximity card only or in combination with a valid user PIN. The built in speaker and sensitive microphone support audio features such as alarm verification or voice annunciation. The functionality can be enhanced with the SPCE110 key switch expander or the SPCE120 indication expander.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.6
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470977
Mindestabnahme 1
ECCN N
Materialkode V54543-F111-A100
Statistisk kode 85311030
Netto vekt 0.570
Opprinnelsesland PH
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Interfaces: X-BUS (in, out)
Operating temperature: 5 ~ +40 °C
Quiescent current: Max. 110 mA at 12 VDC
Operating current: Max. 230 mA at 12 VDC (backlight, LEDs, audio, reader operated)
Audio: Supported via integrated speaker and microphone
Approval: EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C
Housing: Plastic housing (Polycarbonate)
Weight: 0.380 kg
LED Indicators: 5 status LEDs
LCD Display: 128 x 64 pixels (approx. 6 x 20 characters)
Tamper contact: Front / back tamper
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 112 x 185 x 28 (mm)
