PDM-I18T PIR AM detector

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54530-F107-A100
  • 4025515470397
Produktinformasjon "PDM-I18T PIR AM detector"

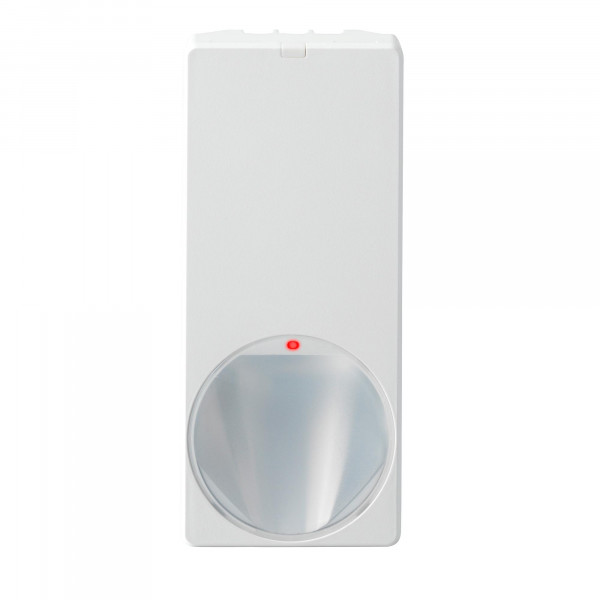

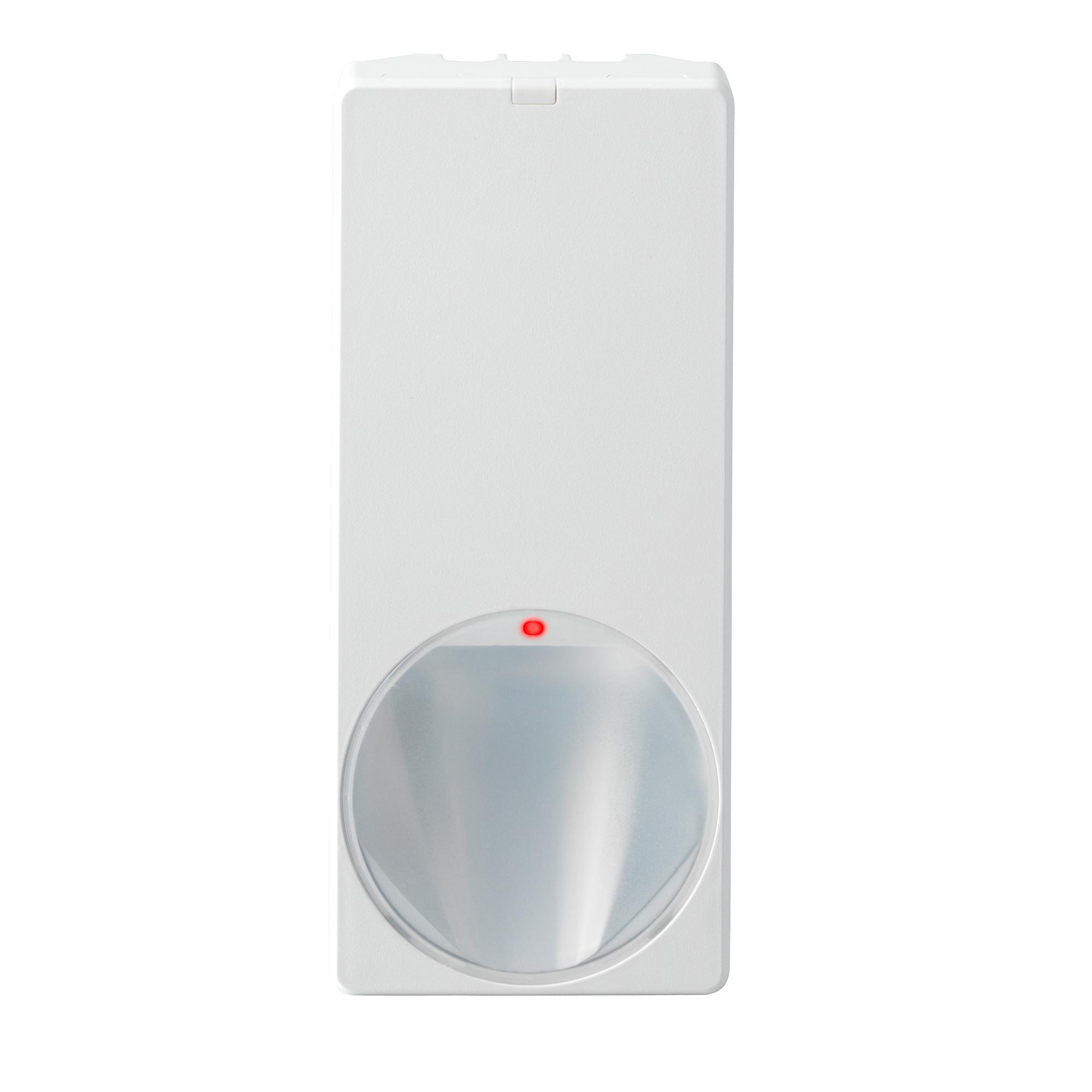

MAGIC motion detector PDM-I18T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Bruttovekt (KG) 0.16
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470397
Mindestabnahme 1
Statistisk kode 85311030
Opprinnelsesland RO
Netto vekt 0.095
Materialkode V54530-F107-A100
ECCN EAR99
Operating temperature: -10°C …+55°C
Supply voltage: 9 ... 16VDC (12V nom.)
Outputs: 30VDC / 100mA, NC
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Walking speed: 0.1 ... 4m/s
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Air humidity (EN 60721): < 85% RH, non-condensing
Detection characteristics / range: Volumetric / 18m
Storage temperature: -20°C …+60°C
Pet immunity: no
Weight: 0.115kg
Approval: EN50131-2-2 Grade 3 VdS Class C
Current consumption: 3.9mA (rms) 6.6mA (max. peak)
Dimensions (W x H x D): 64mm x 147mm x 35mm
Colour: RAL9003
Housing protection (EN 60529): IP41 / IK02
Sensitivity evaluation mode: 4 settings
Optical system: MAGIC mirror
