E100 Central Controller

Forhåndsvisning: E100 Central Controller Forhåndsvisning: E100 Central Controller Forhåndsvisning: E100 Central Controller
E100 Central Controller
E100 Central Controller
E100 Central Controller

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54502-F101-A100
  • EAN/UPC Strekkode: 7330082004232
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon Software nyttige lenker
Beskrivelse
Lukk meny
Produktinformasjon "E100 Central Controller"

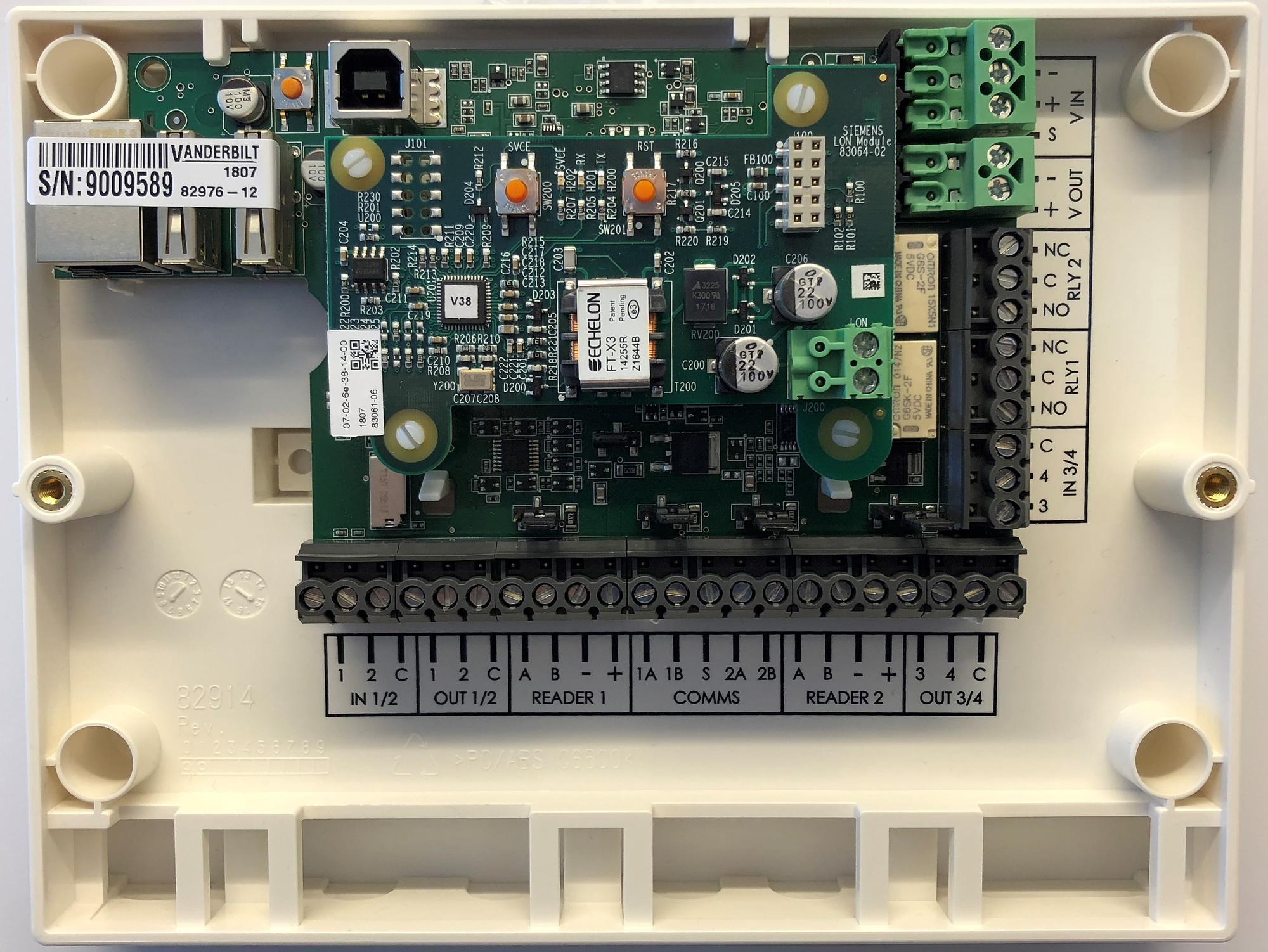

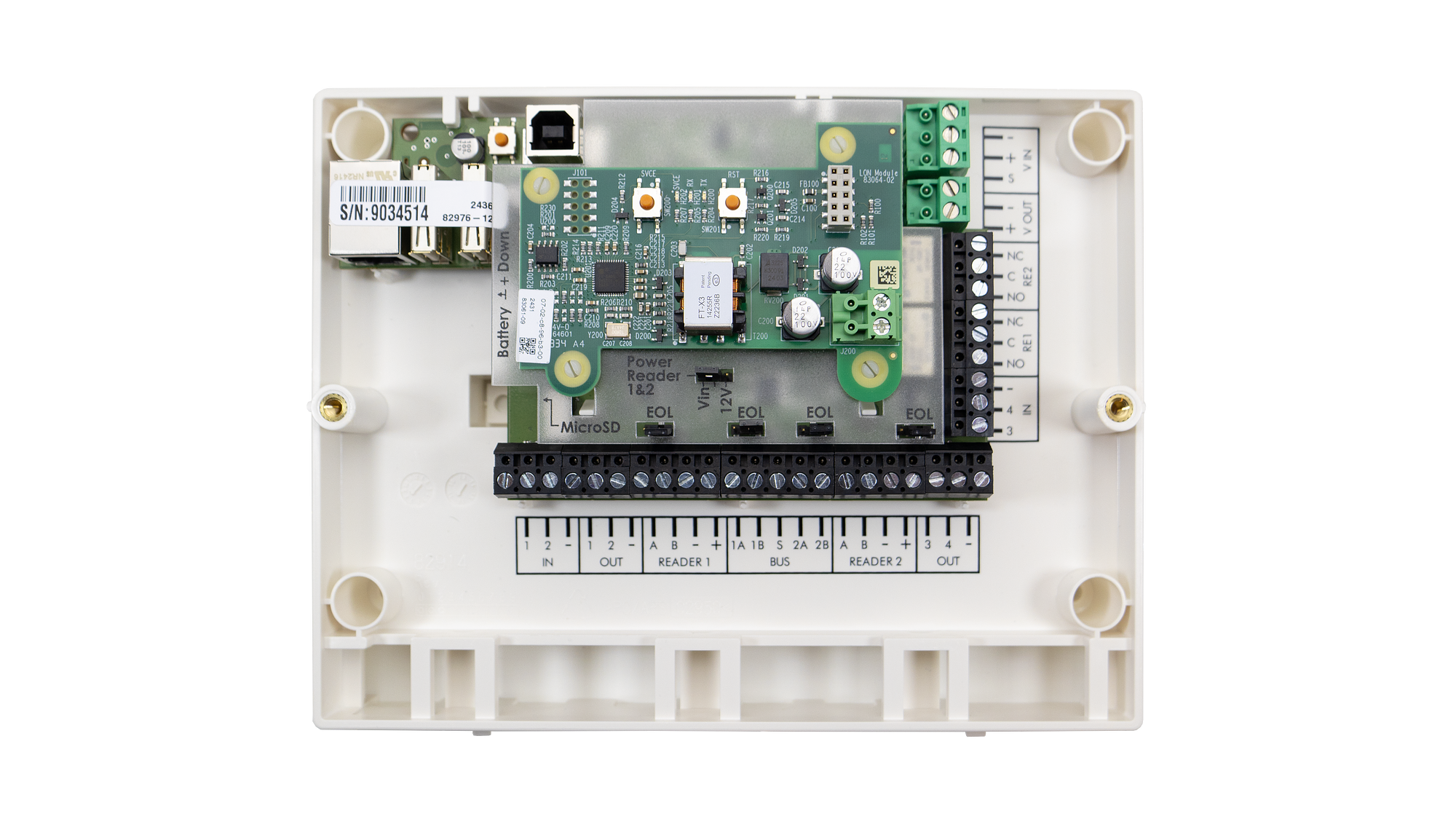

The E100 is a central controller for the Omnis system. It can also act as a combined central and door controller. A total of 79 downstream devices, the internal door controller included, can be managed by the E100.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.635
Kjøp enhet PCE
EAN/UPC Strekkode: 7330082004232
Mindestabnahme 1
Opprinnelsesland SE
ECCN EAR99
Materialkode V54502-F101-A100
Netto vekt 0.100
Statistisk kode 84715000
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Communication protocol: Echelon LonTalk, TCP/IP, OSDP, Wiegand, Clock & Data
Dimensions (W x H x D): 201 x 156 x 53 [mm]
Card capacity: 60,000
Operating temperature: - 40 to +55 C
Current consumption: 125mA idle, 400mA max @24VDC
Power supply: 20-29 VDC
Weight: 650 grams
Tamper switch: Removal from wall and removal of cover.
Colour: White
Interfaces: 1 x RJ45 TCP/IP (10/100 Mbit/s), 2 x USB A, 1 x USB B
