E100-S Satellite Controller

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54502-F103-A100
  • 7330082004249
Produktinformasjon "E100-S Satellite Controller"

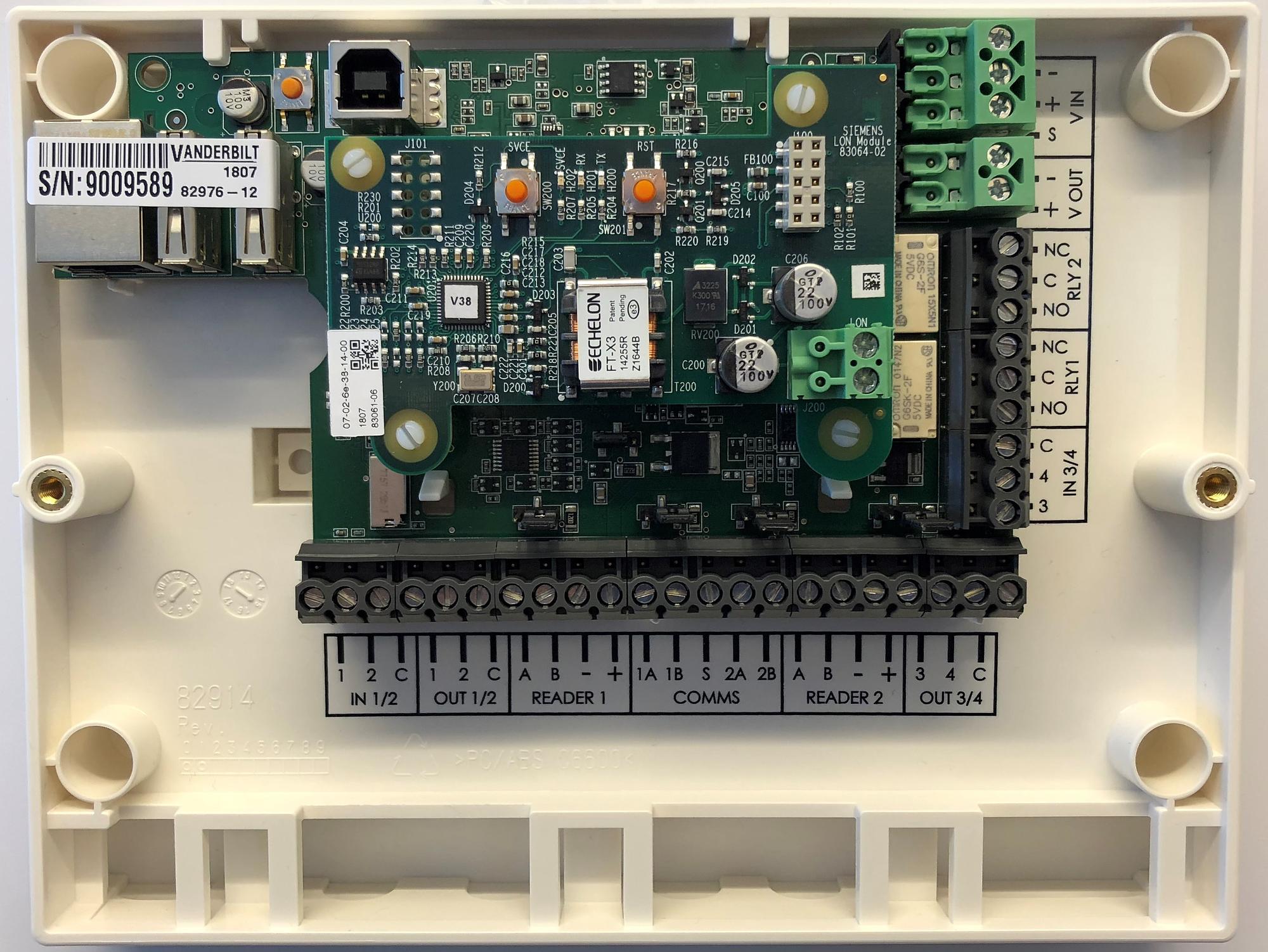

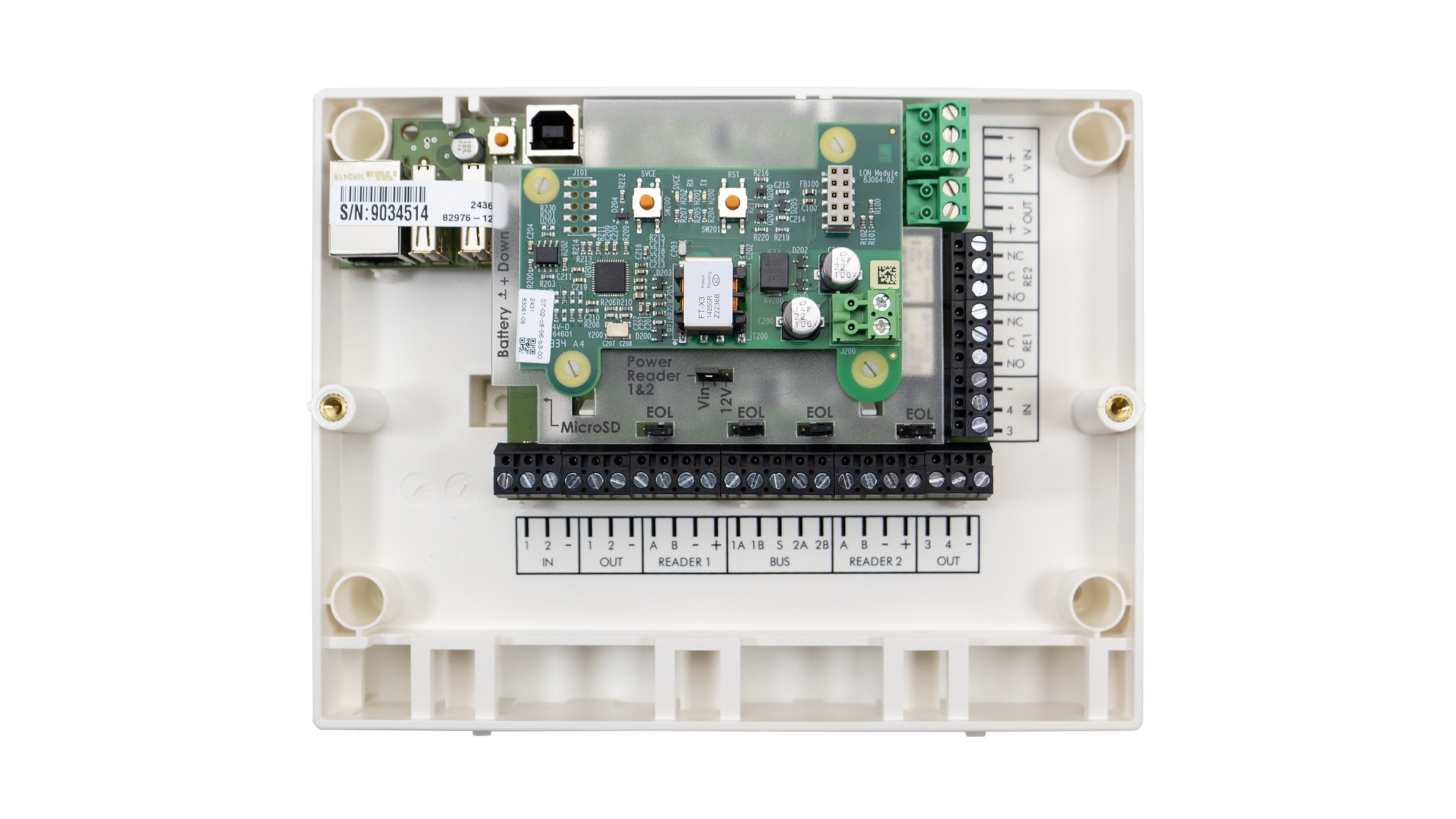

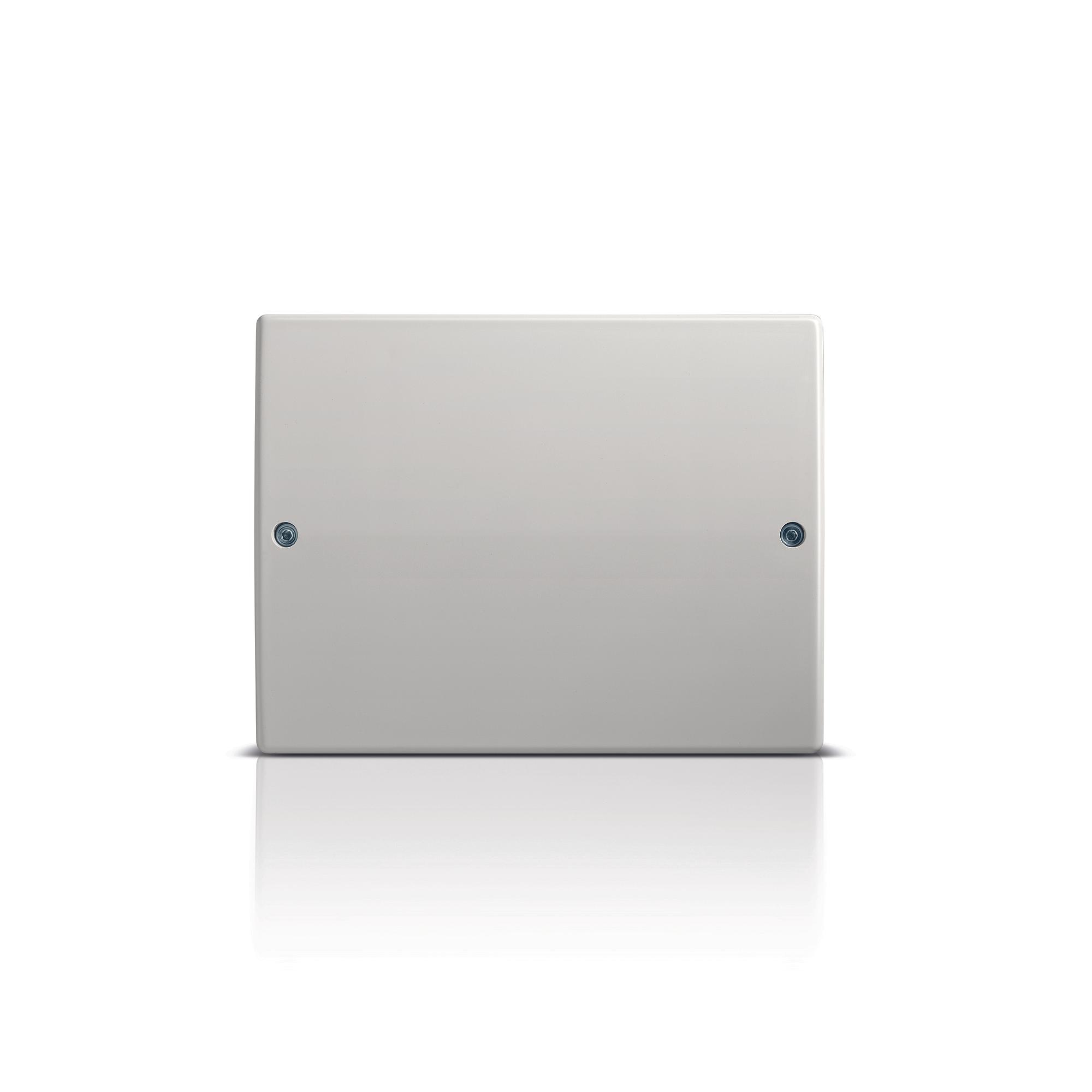

The E100-S is a central controller for the Omnis system. It can also act as a combined central and door controller. A total of 10 downstream devices, the internal door controller included, can be managed by the E100-S.
Bruttovekt (KG) 0.635
Kjøp enhet PCE
EAN/UPC Strekkode: 7330082004249
Mindestabnahme 1
Opprinnelsesland SE
ECCN EAR99
Netto vekt 0.635
Materialkode V54502-F103-A100
Statistisk kode 84715000
Colour: White
Weight: 0.650 kg
Operating temperature: -40 ~ +55 C
Dimensions (W x H x D): 201 x 156 x 53 (mm)
Communication protocol: Echelon LonTalk, TCP/IP, OSDP, Wiegand, Clock & Data
Card capacity: 60,000
Current consumption: 125mA idle, 400mA max @24VDC
Power supply: 20-29 VDC
Tamper switch: Removal from wall and removal of cover.
Interfaces: 1 x RJ45 TCP/IP (10/100 Mbit/s), 2 x USB A, 1 x USB B
