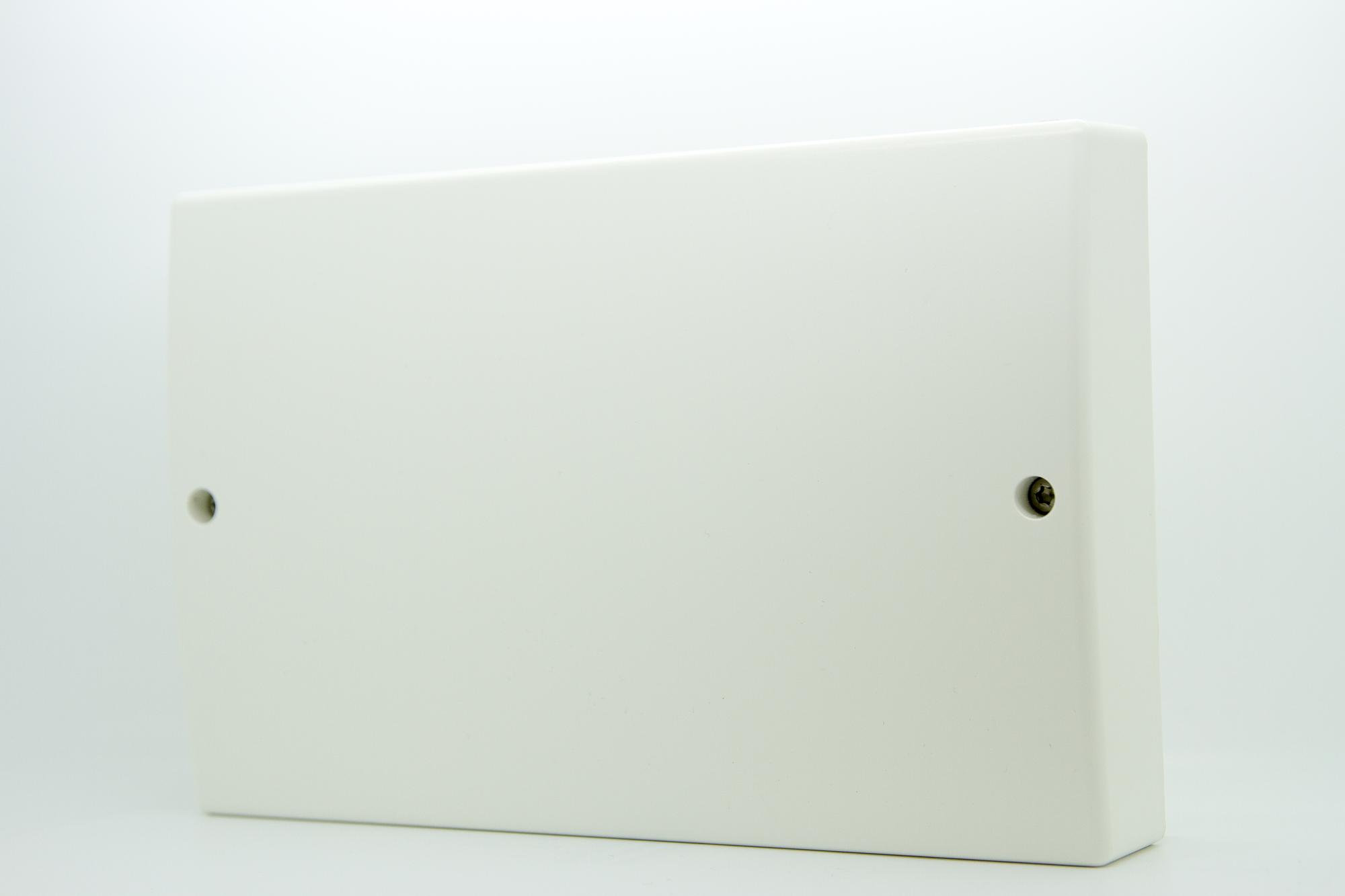

E200 Door Controller

Forhåndsvisning: E200 Door Controller Forhåndsvisning: E200 Door Controller
E200 Door Controller
E200 Door Controller

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54503-C107-A100
  • EAN/UPC Strekkode: 4025515469445
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon Software nyttige lenker
Beskrivelse
Lukk meny
Produktinformasjon "E200 Door Controller"

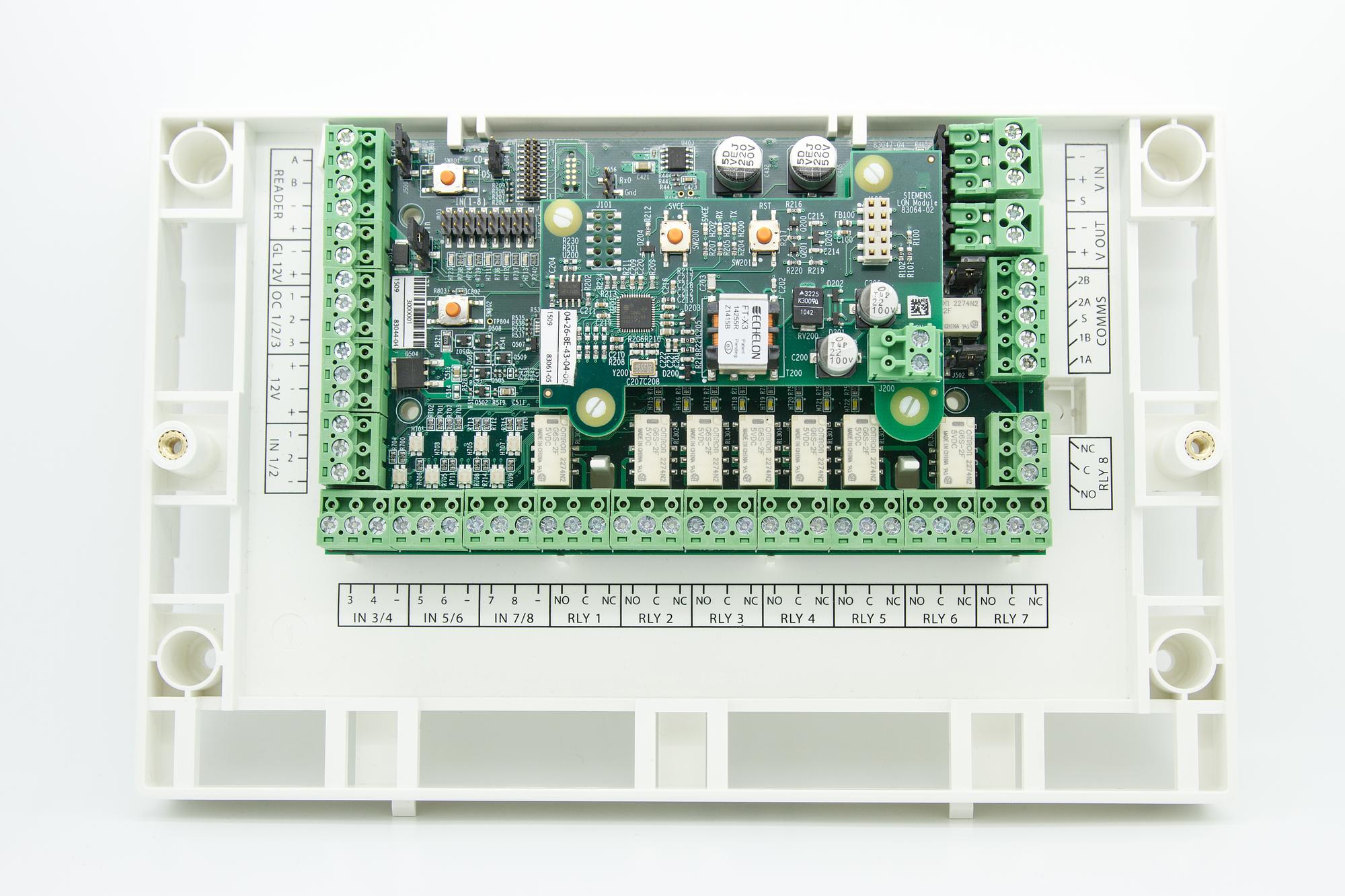

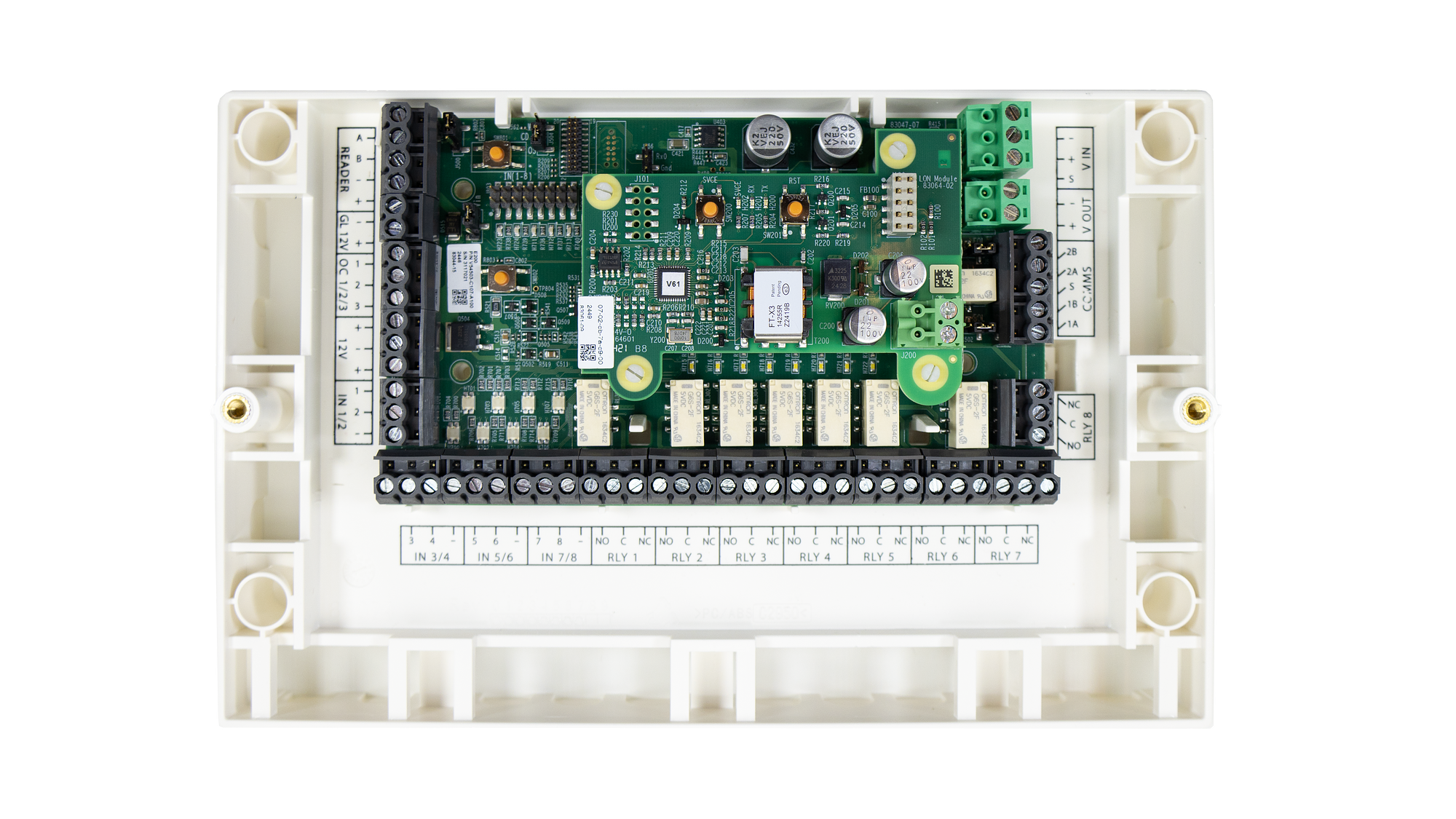

E200 is used for installation of both access control and intrusion. It is possible to connect a reader to the RBE2V. It has 8 inputs and 8 outputs.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.796
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515469445
Mindestabnahme 1
Statistisk kode 85311030
Materialkode V54503-C107-A100
ECCN 5A992
Netto vekt 0.650
Opprinnelsesland RO
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Dimensions (W x H x D): 239 x 156 x 53 [mm]
Tamper contact: Removal from wall and removal of cover
Relay outputs: 8
Current consumption: 116mA idle, 193mA max @24VDC
Alarm inputs: 8
Color: White
Communication protocol: Echelon Lon Talk
Power supply: 20-29 VDC
Weight: 0.630 kg
Operating temperature: -40 to +55 °C
Dokumentasjon
