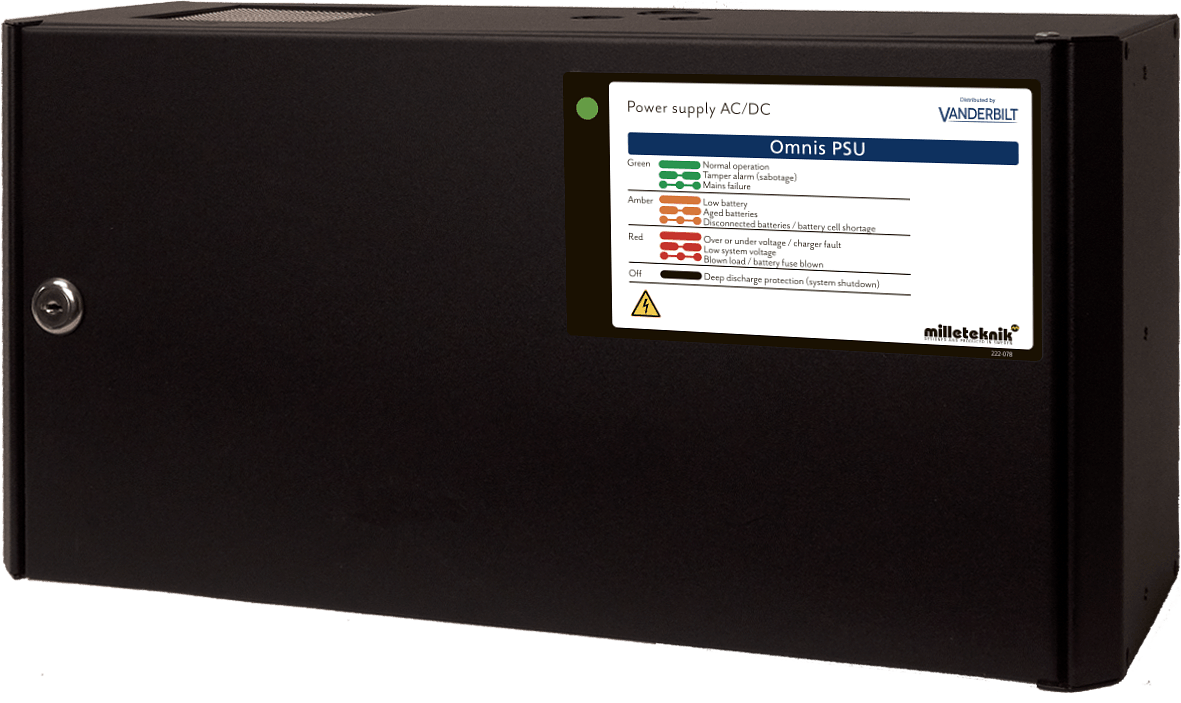

Produktinformasjon "P5S - Omnis PSU 5A Small"

The P5S Omnis PSU is an SSF1014 approved 24V/5A PSU that is monitored in the Omnis system via a RS485 interface. The cabinet can house 2x14Ah batteries.

Lukk meny

Certificate (CE) - Issued by Supplier, on 12/02/2020

Bruttovekt (KG)	6.5
Kjøp enhet	PCE
Mindestabnahme	1
ECCN	N
Materialkode	N54506-Z110-A300
Statistisk kode	85044060
Opprinnelsesland	SE
Netto vekt	5.500

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Lukk meny

Power supply:	5A @ 27,3V DC
Power output:	2 Prioritized Outputs
Interface:	OSDP over RS485
Number of on-board relays:	0
Additional components:	2 Free Expansion Slots
Battery:	2 x 14Ah
Protection rating:	IP32
Mounting:	Wall-mount or Rack-mount (5U)
Weight (without battery):	5,5 kg
Mains voltage:	230V AC
Dimensions (W x H x D):	437 x 222 x 145 mm
Operating temperature:	+5 to +40 ºC
