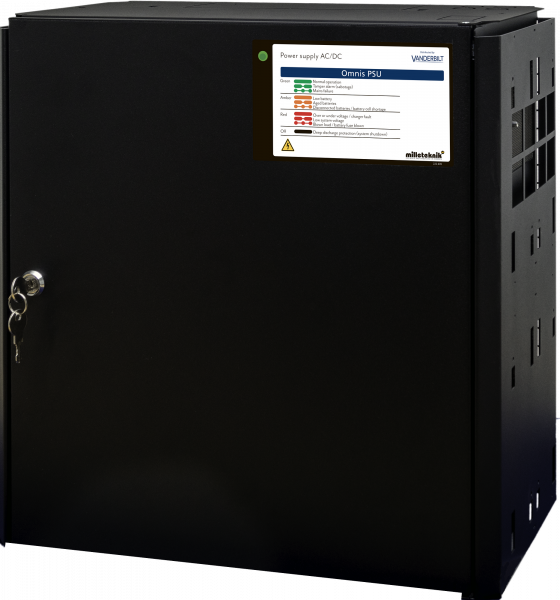

P10L - Omnis PSU 10A Large

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • N54506-Z112-A300
Produktinformasjon "P10L - Omnis PSU 10A Large"
The P10L Omnis PSU is an SSF1014 approved 24V/10A PSU that is monitored in the Omnis system via a RS485 interface. The cabinet can house 2x45Ah batteries. Additional batteries can be added with the FLX Battery Box.
Bruttovekt (KG) 13
Kjøp enhet PCE
Mindestabnahme 1
ECCN N
Statistisk kode 85044060
Materialkode N54506-Z112-A300
Opprinnelsesland SE
Netto vekt 12.000
Mains voltage: 230V AC
Dimensions (W x H x D): 437 x 444 x 212 (mm)
Weight: 13 kg
Power supply: 10A @ 27,3V DC
Power output: Including Additional Components: 2 + 7 Prioritized Outputs + 3 Selectable Prioritized/Unprioritized Outputs
Additional components: 7 Prioritized Load Outputs and 3 Selectable Unpriorizied/Prioritized Load Outputs
Mounting: Wall-mount or Rack-mount (10U)
Battery: 2 x 45Ah (not included)
Interface: OSDP over RS485
Number of on-board relays: 0
Protection rating: IP32
Operating temperature: +5 ~ +40 ºC
