PDM-I12T PIR AM detector

Forhåndsvisning: PDM-I12T PIR AM detector Forhåndsvisning: PDM-I12T PIR AM detector
PDM-I12T PIR AM detector
PDM-I12T PIR AM detector

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54530-F105-A100
  • EAN/UPC Strekkode: 4025515470373
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon nyttige lenker
Beskrivelse
Lukk meny

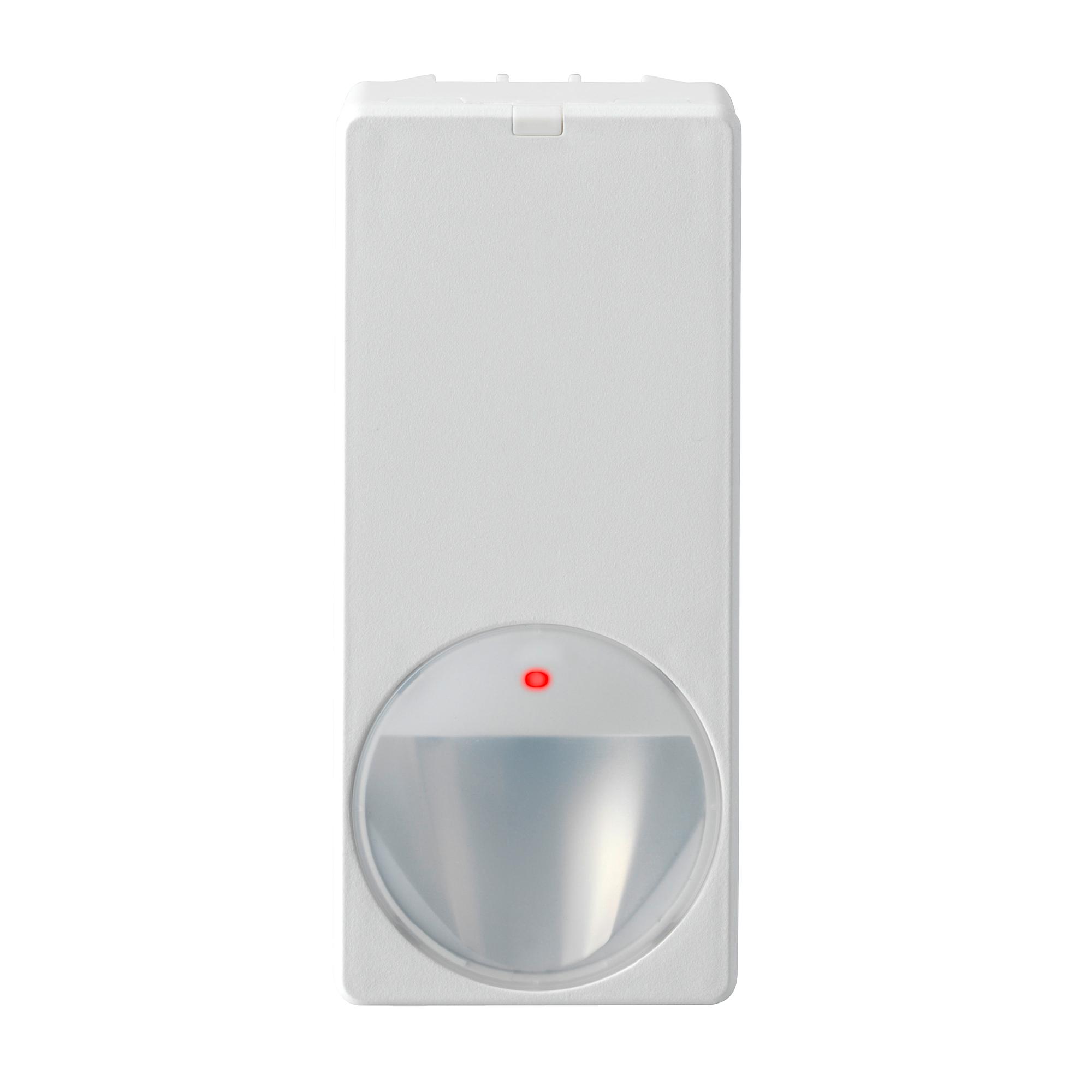

Produktinformasjon "PDM-I12T PIR AM detector"
MAGIC motion detector PDM-I12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.105
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470373
Mindestabnahme 1
Statistisk kode 85311030
ECCN EAR99
Opprinnelsesland RO
Netto vekt 0.104
Materialkode V54530-F105-A100
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Approval: EN50131-2-2 Grade 3 VdS Class C
Colour: RAL9003
Current consumption: 3.9mA (rms) 6.6mA (max peak)
Outputs: 30VDC / 100mA, NC
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Air humidity (EN 60721): < 85% RH, non-condensing
Sensitivity evaluation mode: 4 settings
Weight: 0.095kg
Dimensions (W x H x D): 57 x 128 x 32 (mm)
Walking speed: 0.1 ~ 4m/s
Storage temperature: -20° ~ +60°C
Operating temperature: -10° ~ +55°C
Housing protection (EN 60529): IP41 / IK02
Pet immunity: Yes (optional)
Optical system: MAGIC mirror
Detection characteristics / range: Volumetric / 12m
Supply voltage: 9 ~ 16VDC (12V nom.)
Dokumentasjon
