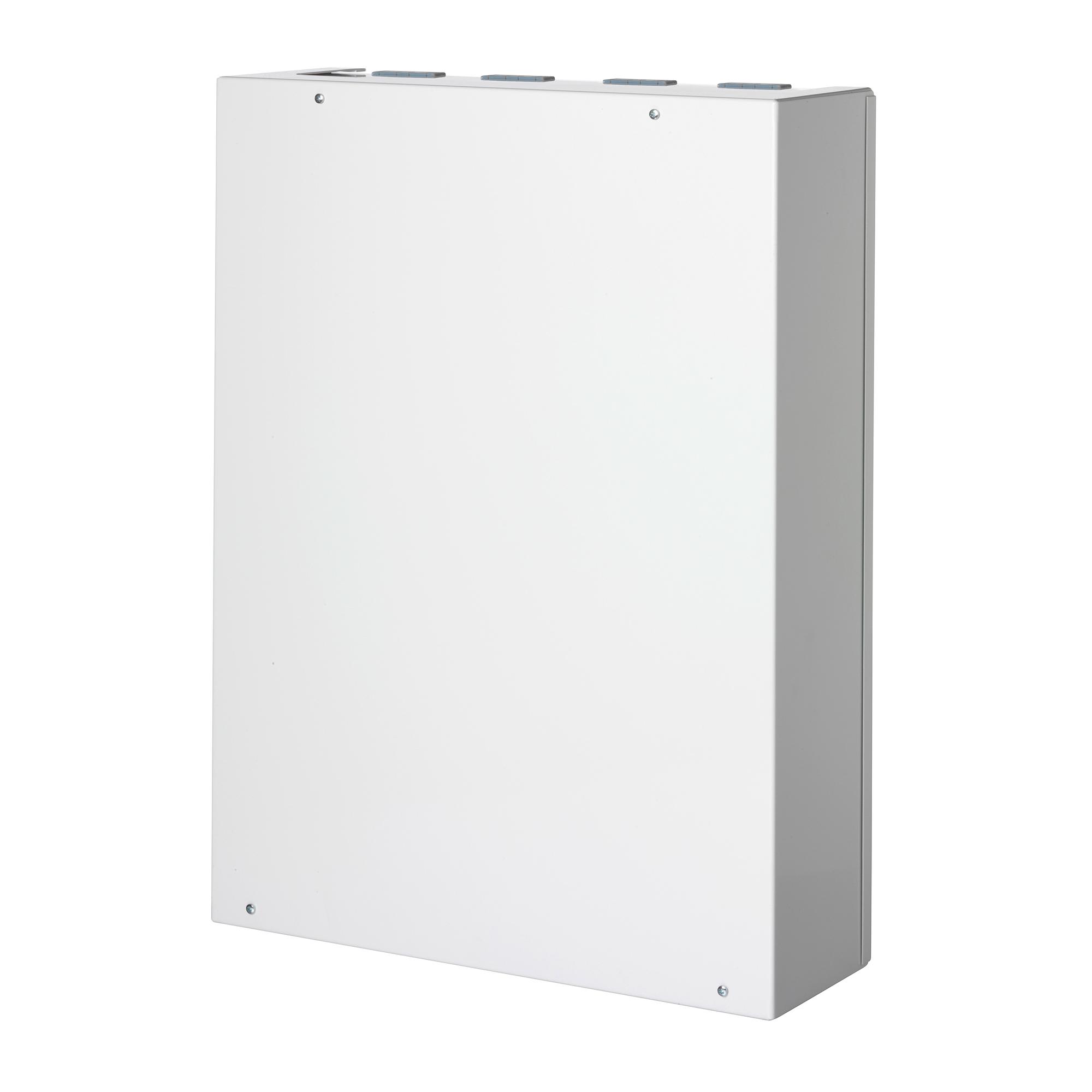

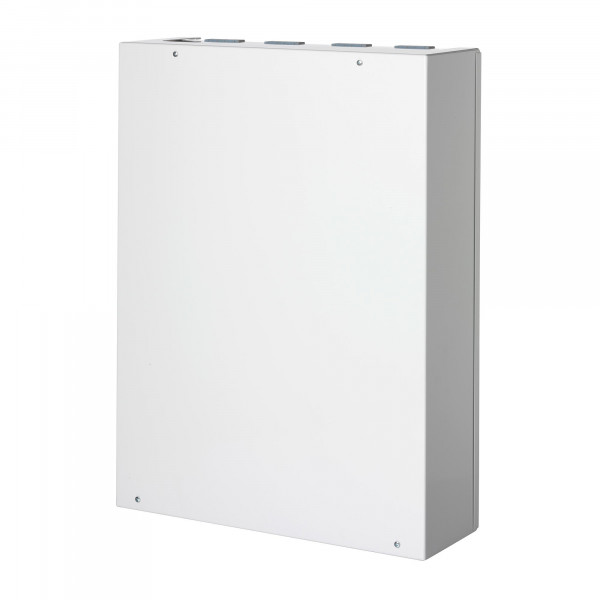

SPC5350.320-L1 Intrusion CP, G5

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54541-C117-A100
  • 4025515470809
Produktinformasjon "SPC5350.320-L1 Intrusion CP, G5"
The SPC5350.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 128 zones (16 on-board), 128 outputs (12 on-board), 16 system keypads, 16 doors, 8 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 16 areas, 500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 64 detectors (mixed with wired zones). The panel comes in a tamper protected metal housing with space for 2 optional 27 Ah batteries and 4 additional expanders.
Bruttovekt (KG) 21
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470809
Mindestabnahme 1
Statistisk kode 85311030
Opprinnelsesland PH
Netto vekt 19.760
Materialkode V54541-C117-A100
Tamper contact: Front / back tamper, 1 auxiliary tamper contact input
Max. number of hardwired zones: 128
Door capacity: Max. 16 entry doors or 8 entry/exit doors
Verification: 8 verification zones with max. 4 IP-cameras and 8 audio devices.
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.)
Housing: Metal housing (1.5 mm mild steel)
Language: Multi-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv.
Number of on-board zones: 16
Relay outputs: 4 (single-pole changeover, 30 V DC / max. 1 A resistive switching current)
Operating current: Max. 415 mA at 12 VDC (all relays activated)
Operating temperature: 0 ~ +40 °C
Quiescent current: Max. 350mA at 12 VDC
Weight: 18.600 kg (housing incl. cover), 11.500 kg (housing without cover)
Power output: Max. 2,2 A bei 12 V DC (8 separate mit 300 mA abgesicherte Ausgänge, kombinierbar)
Approval: DE: VdS G112124, Klasse C AT: W 130923/09 E, Klasse WS In Zertifizierungsverfahren nach SES EN CH Grad 3 FFIS A 11001 A - 1 bis Kat. 2 Ablauf der FFIS Genehmigung per 31.12.2014
Tamper switch: Front och bortbrytning samt en extra ingång för extern sabotage
Housing material: Contenitore in metallo (acciaio dolce 1,5 mm )
Max. number of wireless zones: 64 (take away wired zones)
Dimensions (W x H x D): 498 x 664 x 157 (mm)
EOL resistor: 4K7/4K7 (default), 25 other resistor combinations selectable, Anti-mask support
Remote controls: Up to 50
Output voltage: 13-14 VDC in normal conditions (mains powered and fully charged battery)
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Colour: RAL 9003 (signal white)
Firmware: V3.6
Event memory: 10'000 intrusion events, 10'000 access events
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Interfaces: 2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45)
Weight (without battery): 18.600 kg (housing incl. cover) 11.500 kg (housing without cover)
