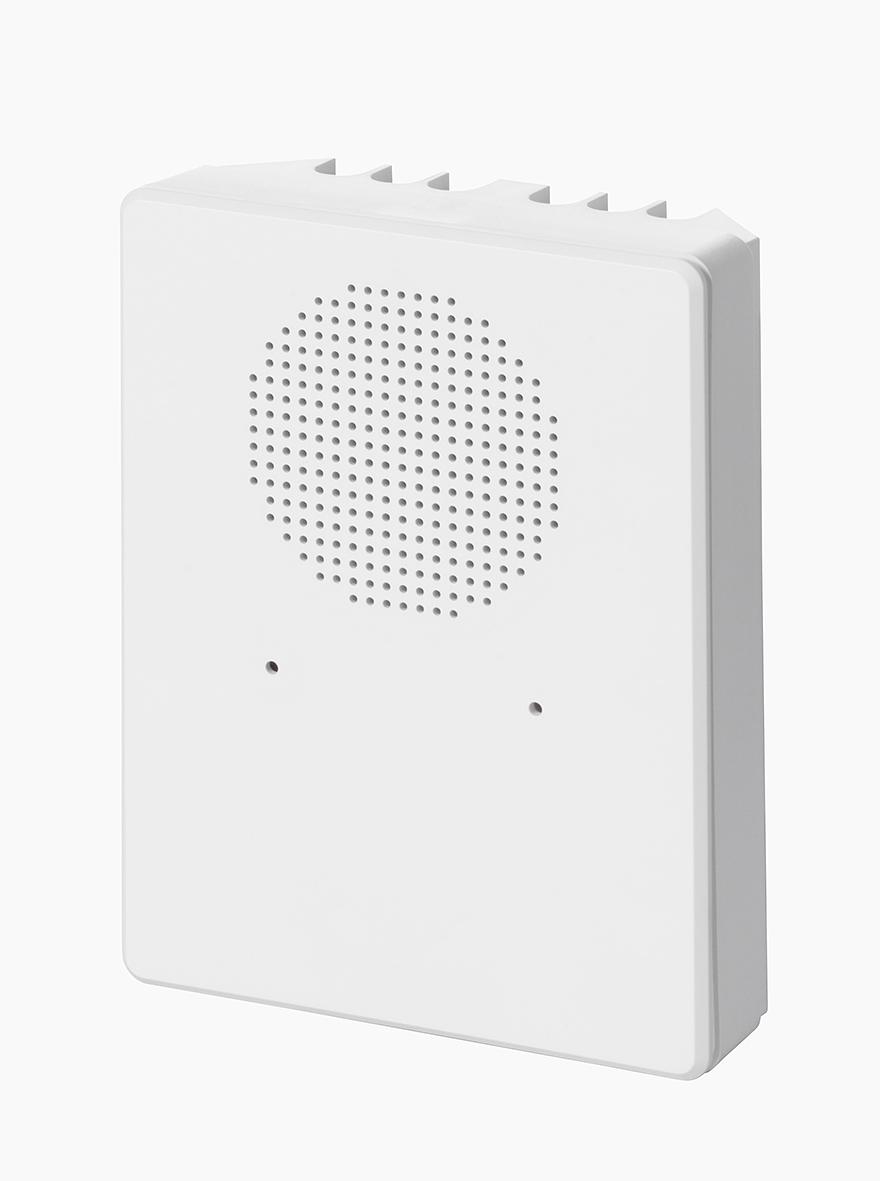

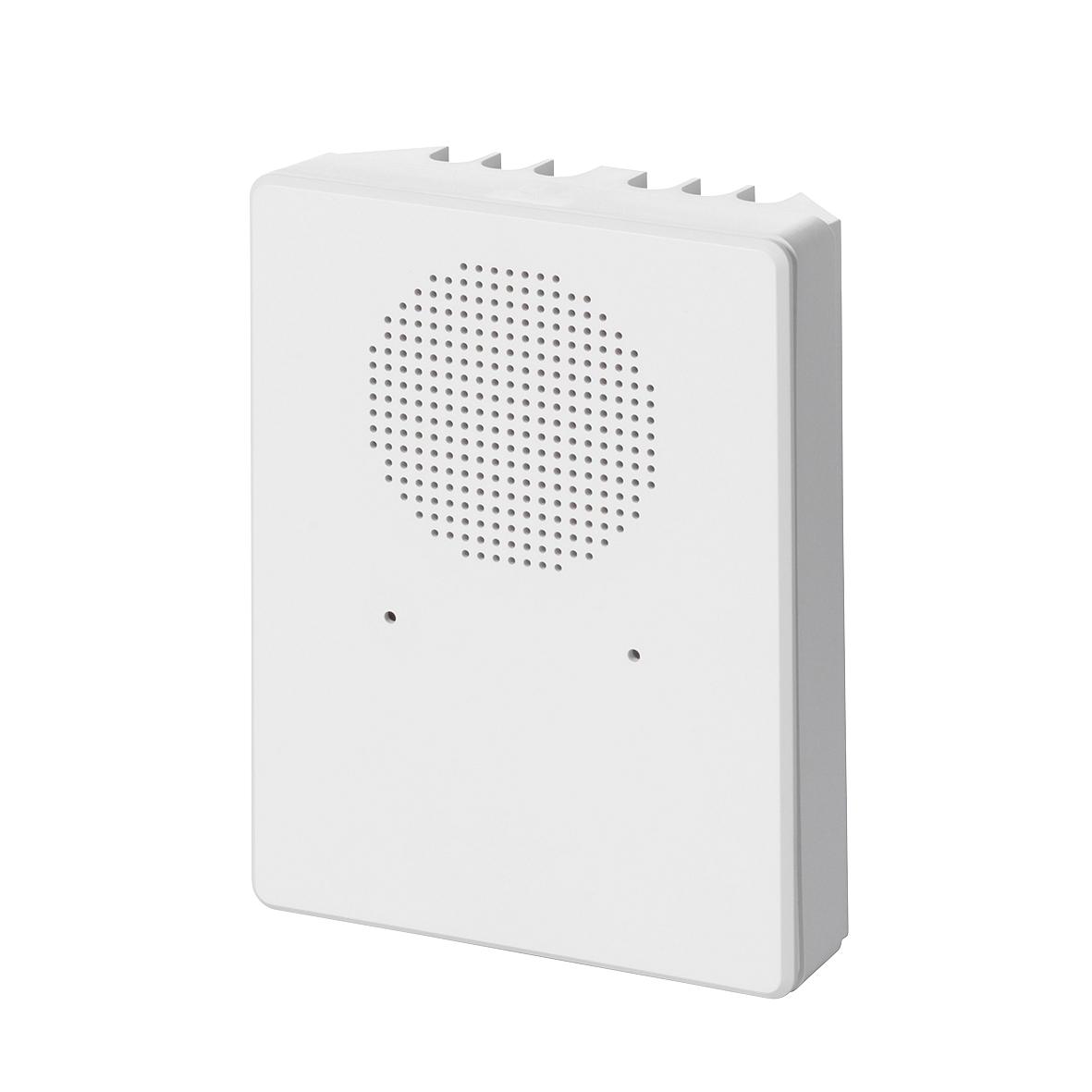

SPCV341.000 Audio Exp. 4 In/1 LineOut

Forhåndsvisning: SPCV341.000 Audio Exp. 4 In/1 LineOut Forhåndsvisning: SPCV341.000 Audio Exp. 4 In/1 LineOut
SPCV341.000 Audio Exp. 4 In/1 LineOut
SPCV341.000 Audio Exp. 4 In/1 LineOut

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54542-F109-B100
  • EAN/UPC Strekkode: 4025515470892
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon
Beskrivelse
Lukk meny
Produktinformasjon "SPCV341.000 Audio Exp. 4 In/1 LineOut"
The SPCV341.000 Audio Expander extends the acre Intrusion system via X-BUS with an audio verification zone, 4 wired zones and 1 line output to drive an external audio pre-amplifier. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the acre Intrusion system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.425
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470892
Mindestabnahme 1
Statistisk kode 85311030
ECCN 3A991
Materialkode V54542-F109-B100
Netto vekt 0.404
Opprinnelsesland RO
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Operating voltage: 9.5 ~ 14 VDC
Audio outputs: 1 line output (100 Ω / 0.775V RMS, suitable for connection to audio pre-amplifier).
Weight: 0.420 kg
Mounting: Flat surface, wall-mounted or corner-mounted at 45 °
Quiescent current: Max. 60 mA at 12 VDC (without satellites)
Operating current: Max. 75 mA at 12 VDC (without satellites)
Tamper contact: Front / back tamper switch
Interfaces: X-BUS (in, out), Audio (A+, A-)
Audio: Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators: 1 (red)
Number of on-board zones: 4
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 106 × 141 × 42 (mm)
Dokumentasjon
Lukk meny
