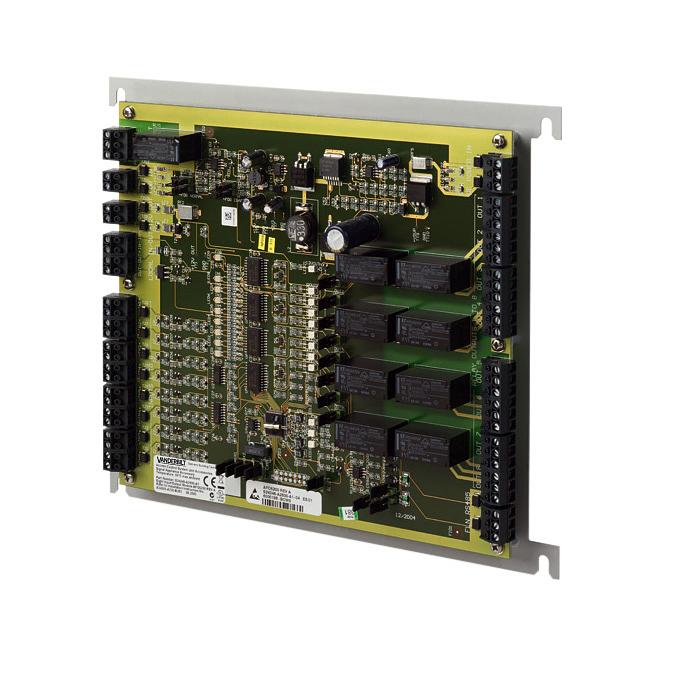

AFO5200 8-Input/Output Module

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her

Produkt-nr.: V24246-A2600-A1
EAN/UPC Strekkode: 4025515475323

Lukk meny

Produktinformasjon "AFO5200 8-Input/Output Module"

The AFO5200 is an advanced‚ multi-purpose module that provides an interface between field-level input devices (such as passive infrared detectors) and output devices (such as locking devices) to the advanced central controller (AC5100‚ AC5102 or AC5200).

Lukk meny

Bruttovekt (KG)	1.1
Kjøp enhet	PCE
EAN/UPC Strekkode:	4025515475323
Mindestabnahme	1
Opprinnelsesland	HU
Materialkode	V24246-A2600-A1
Netto vekt	1.045
Statistisk kode	84733020
ECCN	EAR99

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Lukk meny

Dimensions (W x H x D):	250 x 210 x 40 mm
Weight:	1 kg
Operating temperature:	0 to +50 °C (32 to 122 °F)
Indicators:	Power, Activity, Communication Inputs, Output Peripheral supplies Fire override
Outputs:	8 x Relays (30 VDC, 2 A) 1 x Local output (open-collector 9.7-12 VDC, 100 mA) 1 x Fire override relays (30 VDC, 2 A)
Inputs:	8 x Isolated (internally supplied, unsupervised or supervised) 1 x Local input 1 x Fire override (potential-free or internally supplied)
Approval:	CE, UL294, C-Tick
Current consumption:	Max. 2 A at 12 V, max. 1.5 A at 24 V
Operating voltage:	12 VDC ±10% or 24 VDC ±10%
Interface:	To controller: RS485
Interfaces:	Al controllore: RS485
Firmware:	Flash upgradeable
