ACC-AP SiPass integrated IP Door Contr.

ACC-AP SiPass integrated IP Door Contr.
Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54502-C160-A100
  • EAN/UPC Strekkode: 7330082004805
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon nyttige lenker
Beskrivelse
Lukk meny

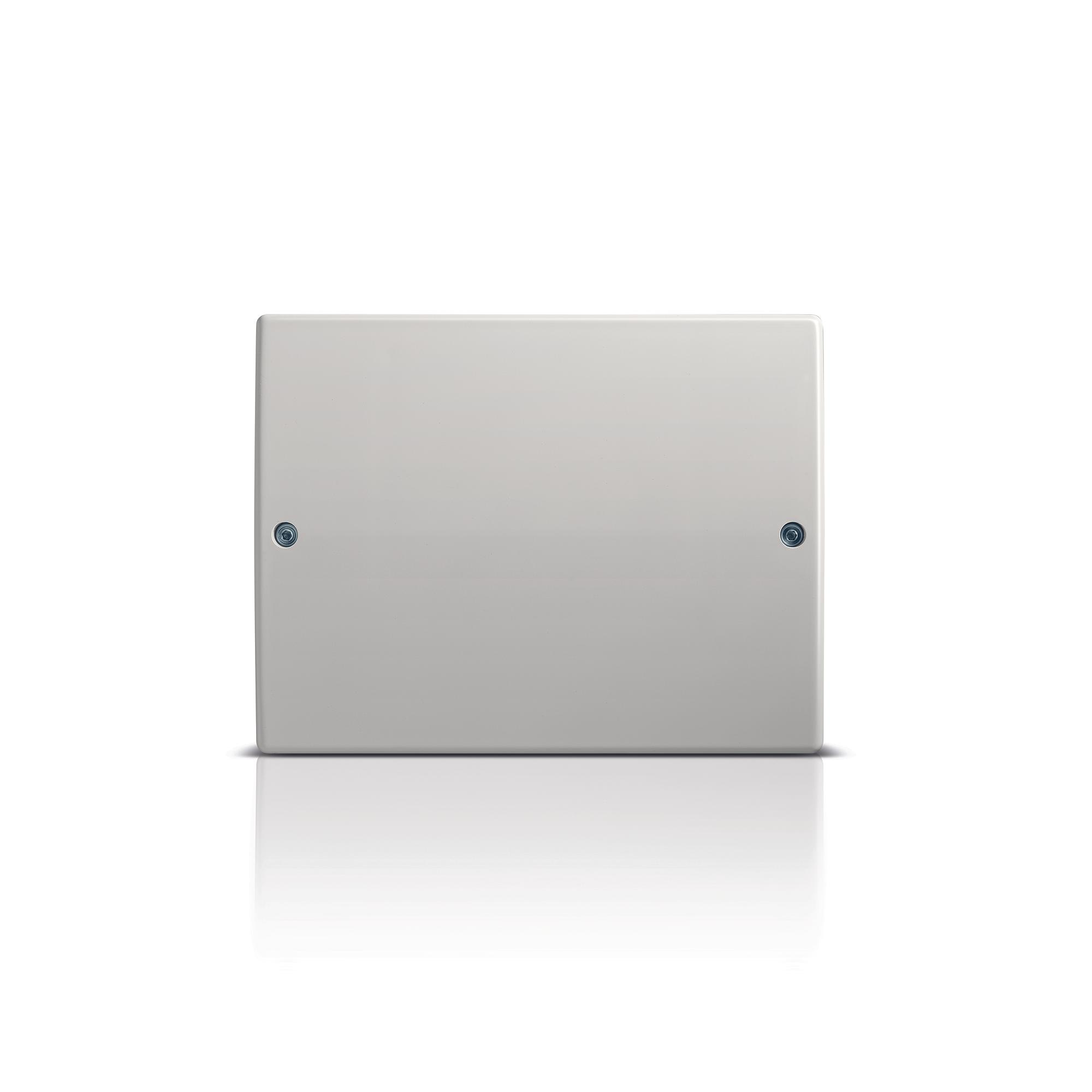

Produktinformasjon "ACC-AP SiPass integrated IP Door Contr."
The ACC-AP IP Door Controller is used for controlling up to two doors as part of the SiPass integrated Access Control system. The controller can be configured for 1 or 2 doors and can be programmed with up to 500‚000 cardholders. The ACC-AP offers the ability to connect 2 OSDP readers to be used for entry or exit and can be placed in different heights to accommodate for instance wheelchairs or garage barriers. The ACC-AP has 4 inputs, 2 relay outputs and 4 open-collector outputs. The inputs and outputs are user configurable to meet a majority of use cases. This controller is also capable of supporting FLN devices and of hosting units such as the 8IO, OPM and IPM.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.626
Kjøp enhet PCE
EAN/UPC Strekkode: 7330082004805
Mindestabnahme 1
Statistisk kode 84715000
Materialkode V54502-C160-A100
Netto vekt 0.626
Opprinnelsesland DK
ECCN EAR99
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Power consumption: Without reader Idle: 12V DC: 200 mA 24V DC: 125 mA Full on without readers 12V DC: 600mA 24V DC: 400 mA
