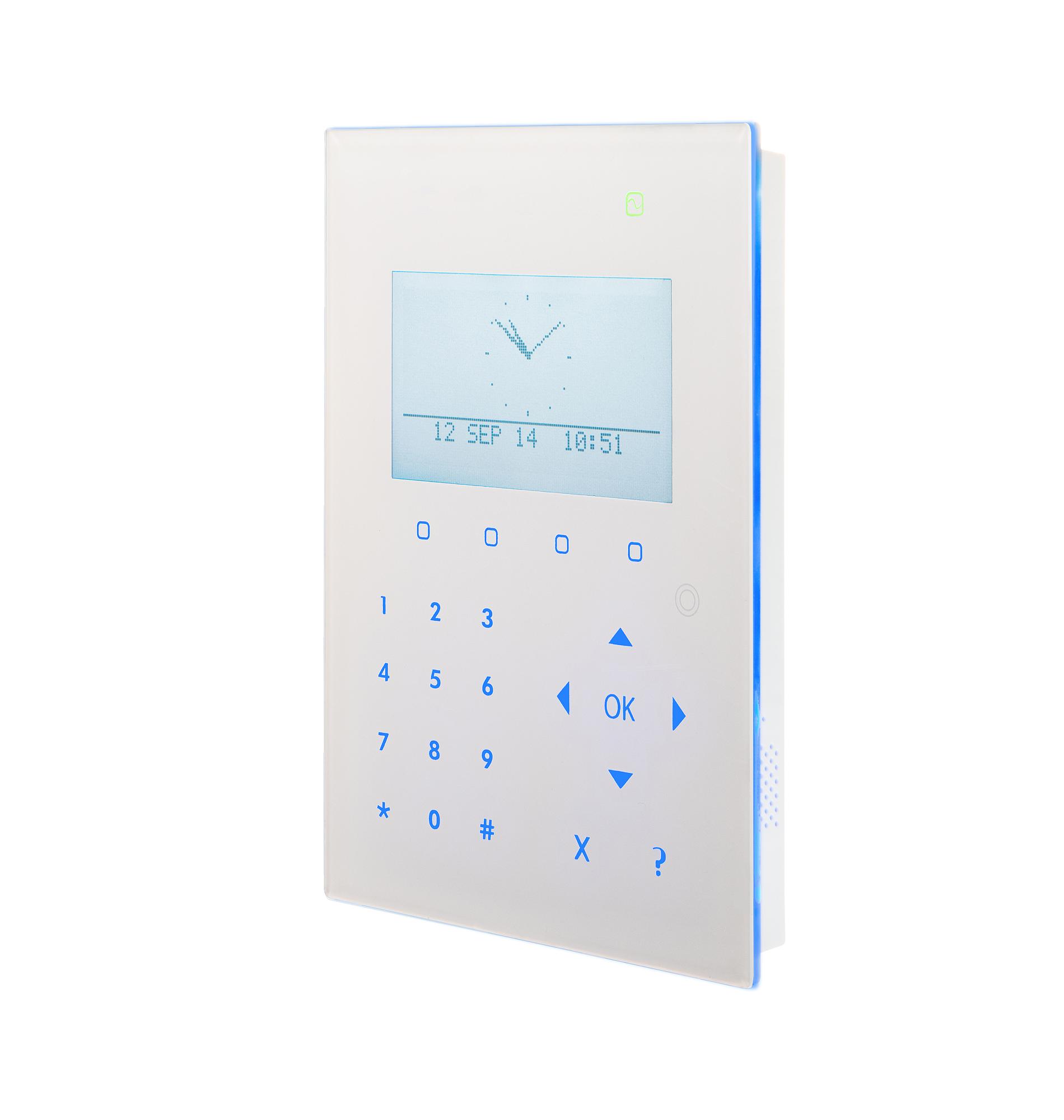

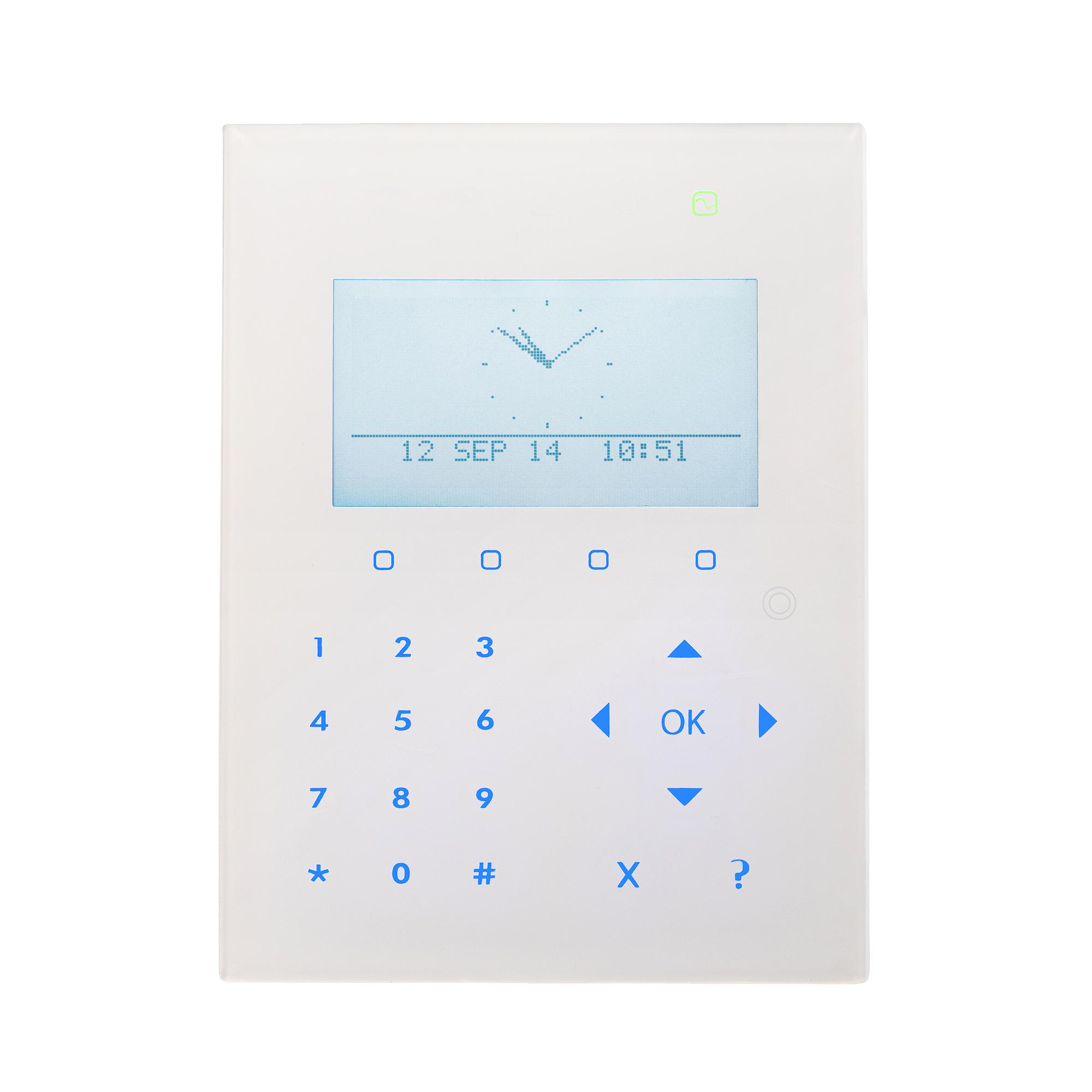

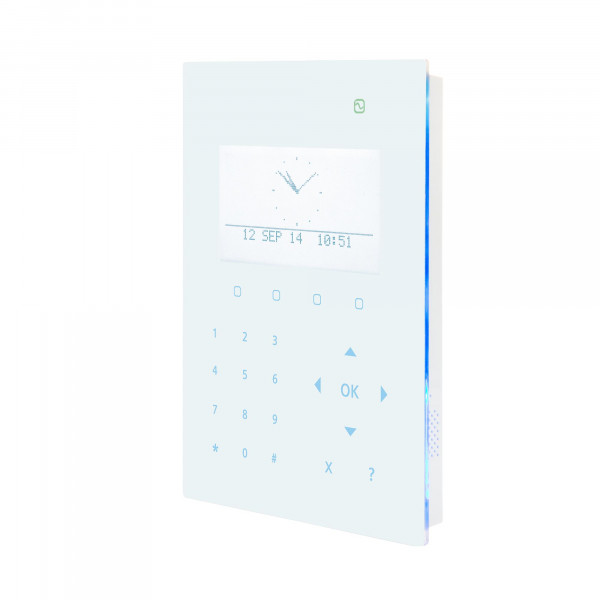

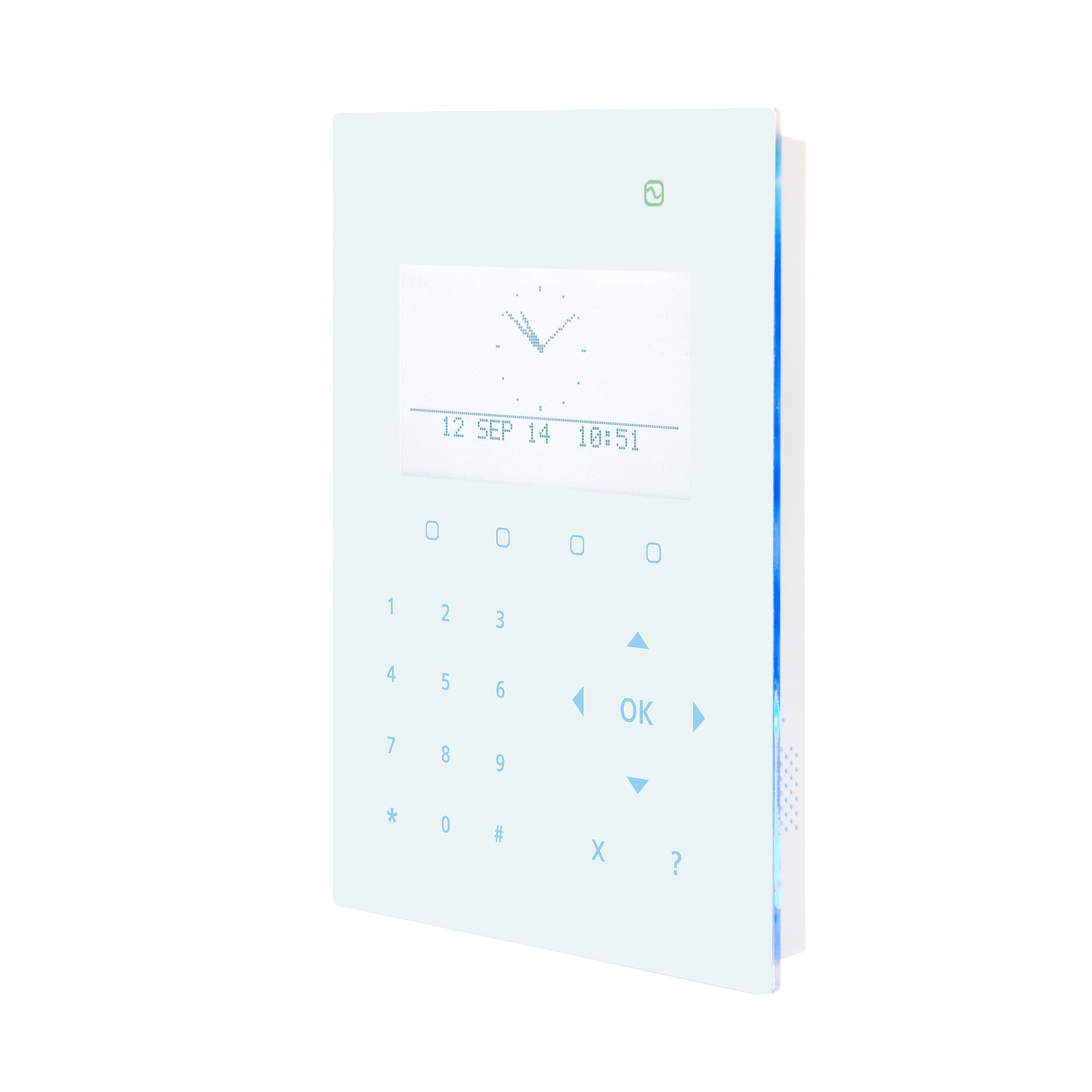

SPCK520.100-N Compact Keypad Neu.

Forhåndsvisning: SPCK520.100-N Compact Keypad Neu. Forhåndsvisning: SPCK520.100-N Compact Keypad Neu. Forhåndsvisning: SPCK520.100-N Compact Keypad Neu. Forhåndsvisning: SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54543-F115-A100
  • EAN/UPC Strekkode: 4025515470984
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon Software
Beskrivelse
Lukk meny
Produktinformasjon "SPCK520.100-N Compact Keypad Neu."
The SPCK520.100-N Compact Keypad is slim, stylish and feature packed. With touch key technology, the 4 soft keys and navigation keys allow easy operation with a minimum number of steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. The integrated speaker enhances the user experience with audio annunciation. Customer logo, emergency or quick set functions can be displayed in idle state. Various mounting options and accessories provide a complete keypad interface.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.325
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470984
Mindestabnahme 1
ECCN N
Materialkode V54543-F115-A100
Statistisk kode 85311030
Netto vekt 0.309
Opprinnelsesland PH
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Interfaces: X-BUS (in, out)
Housing: Plastic housing (PMMA, PC ABS, ABS)
Weight: 0.250 kg
Mounting: Flat surface, wall-mounted or flush mounted using SPCY520 / SPCY521
Operating current: Max. 210 mA at 12 VDC (backlight, LEDs, voice annunciation operated)
Audio: Supported via integrated speaker
Keypad: Touch key technology
Operating temperature: 5 ~ +40 °C
Quiescent current: Max. 55 mA at 12 VDC
LED Indicators: 5 status LEDs
LCD Display: 128 x 64 pixels (approx. 6 x 20 characters)
Tamper contact: Front / back tamper
Colour: RAL 9003 (signal white)
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 110 x 150 x 17.5 (mm)
Dokumentasjon
Lukk meny
Software
Lukk meny
