SPCE110.100 Key Switch Expander

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54542-F104-A100
  • 4025515470830
Produktinformasjon "SPCE110.100 Key Switch Expander"

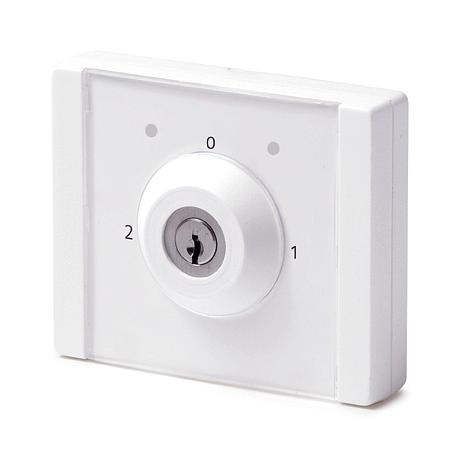

The SPCE110.100 is a universal key switch expander with 2 tri-color LEDs, a 3-position key switch and buzzer. The freely programmable user interface indicates the configured status information with LEDs (e.g. key switch position, area setting states) and enables activation of application specific processes by changing the key switch position (e.g. unlock keypad or indication expander, setting of an area, open or close a gate). The expander also provides one freely programmable volt free relay output with either NO or NC terminal. The key switch is delivered with a standard cylinder and should can be replaced.
Bruttovekt (KG) 0.52
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470830
Mindestabnahme 1
ECCN N
Materialkode V54542-F104-A100
Statistisk kode 85311030
Netto vekt 0.494
Opprinnelsesland PH
ECCN: N
Weight: 0.270 kg
Quiescent current: Max. 30 mA at 12 VDC
Operating current: Max. 50 mA at 12 VDC (relay and LEDs operated)
Operating voltage: 9.5 - 14 VDC
LED Indicators: 2 tri-color LEDs
Number of on-board relays: 1 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Approval: EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C
Housing: Plastic housing (Polycarbonate)
Tamper contact: Front / back tamper
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Interfaces: X-BUS (in, out)
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 112 x 92 x 38 mm
