SPCP332.300 Smart PSU (7AH) w. I/O-Exp.

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54545-C102-A100
  • 4025515471028
Produktinformasjon "SPCP332.300 Smart PSU (7AH) w. I/O-Exp."

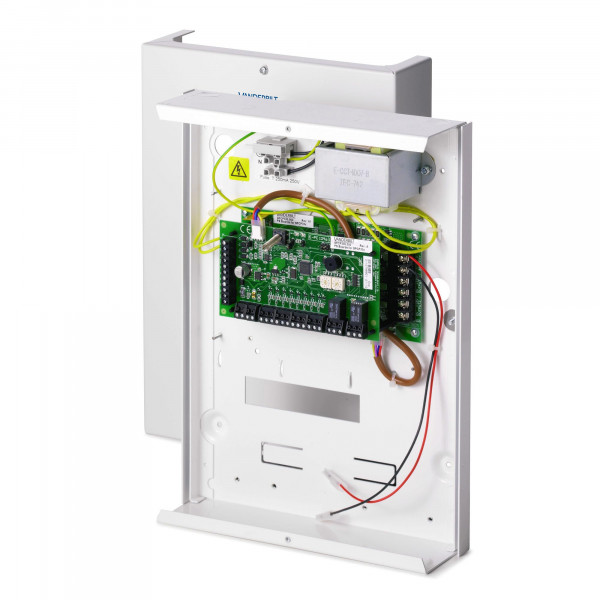

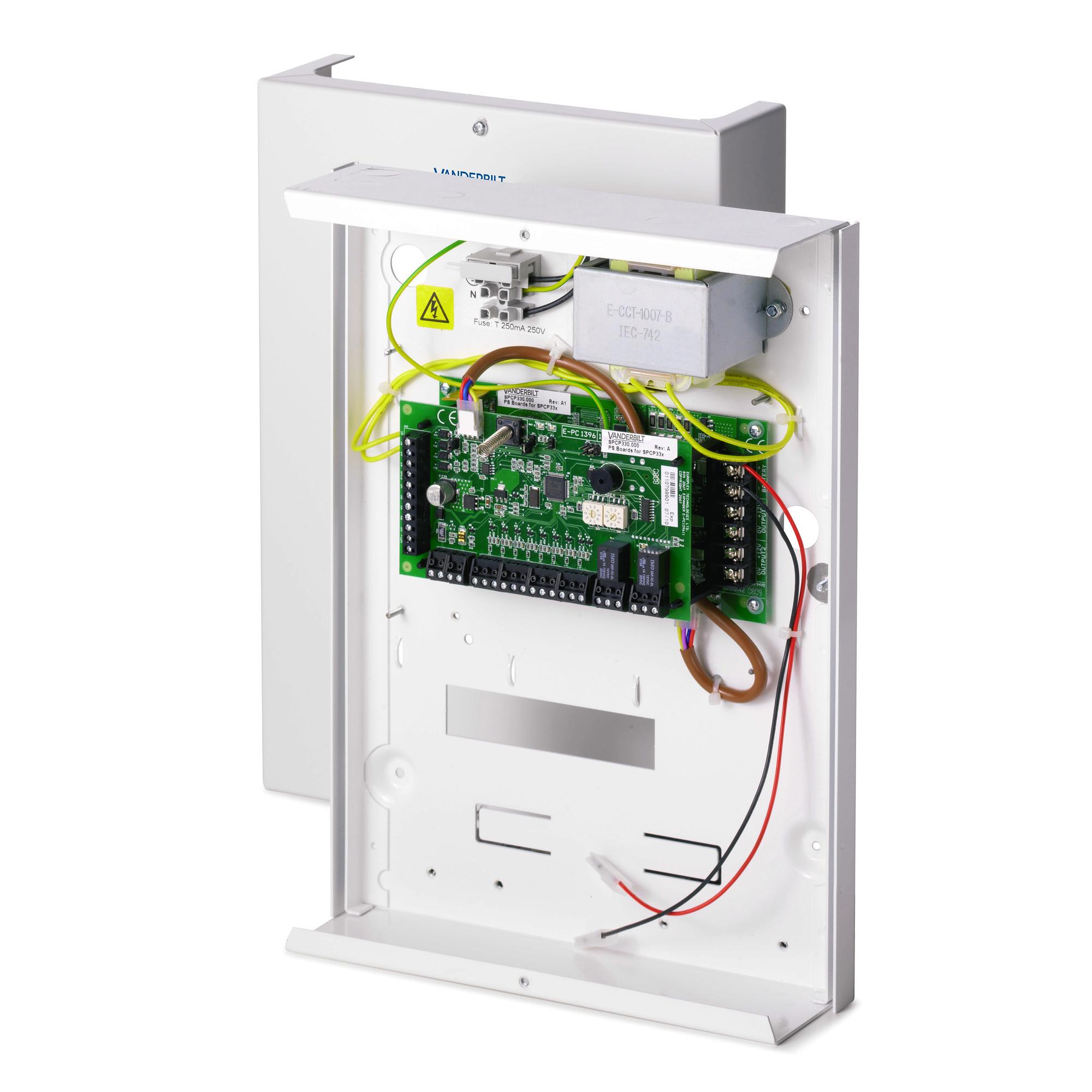

The SPCP332.300 smart power supply expander (PSU) extends the acre Intrusion system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders), 8 wired zones and 2 fully programmable relay outputs. The PSU comes in a tamper protected metal housing with space for an optional 7 Ah battery.
Bruttovekt (KG) 5.3
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515471028
Mindestabnahme 1
Statistisk kode 85389099
Opprinnelsesland PH
Materialkode V54545-C102-A100
Netto vekt 5.035
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Weight: 4.700 kg
Quiescent current: Max. 77mA at 12 VDC
Output voltage: 11-14 VDC in normal conditions (mains powered and fully charged battery)
Operating current: Max. 117 mA at 12 VDC (all relays activated)
Number of on-board relays: 2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Interfaces: X-BUS (in, out, branch)
Power output: Max. 1500 mA bei 12 VDC (750 mA pro Ausgang)
Tamper contact: Front spring tamper
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Housing: Small metal housing (1.2 mm mild steel)
Operating temperature: 0 ~ +40 °C
Number of on-board zones: 8
Colour: RAL 9003 (signal white)
Dimensions (W x H x D): 264 x 357 x 81 mm
