SPCE651.100 Expander,8 In/2 Out, Analy.

SPCE651.100 Expander,8 In/2 Out, Analy.
Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54542-F102-A100
  • EAN/UPC Strekkode: 4025515470823
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon Software
Beskrivelse
Lukk meny
Produktinformasjon "SPCE651.100 Expander,8 In/2 Out, Analy."

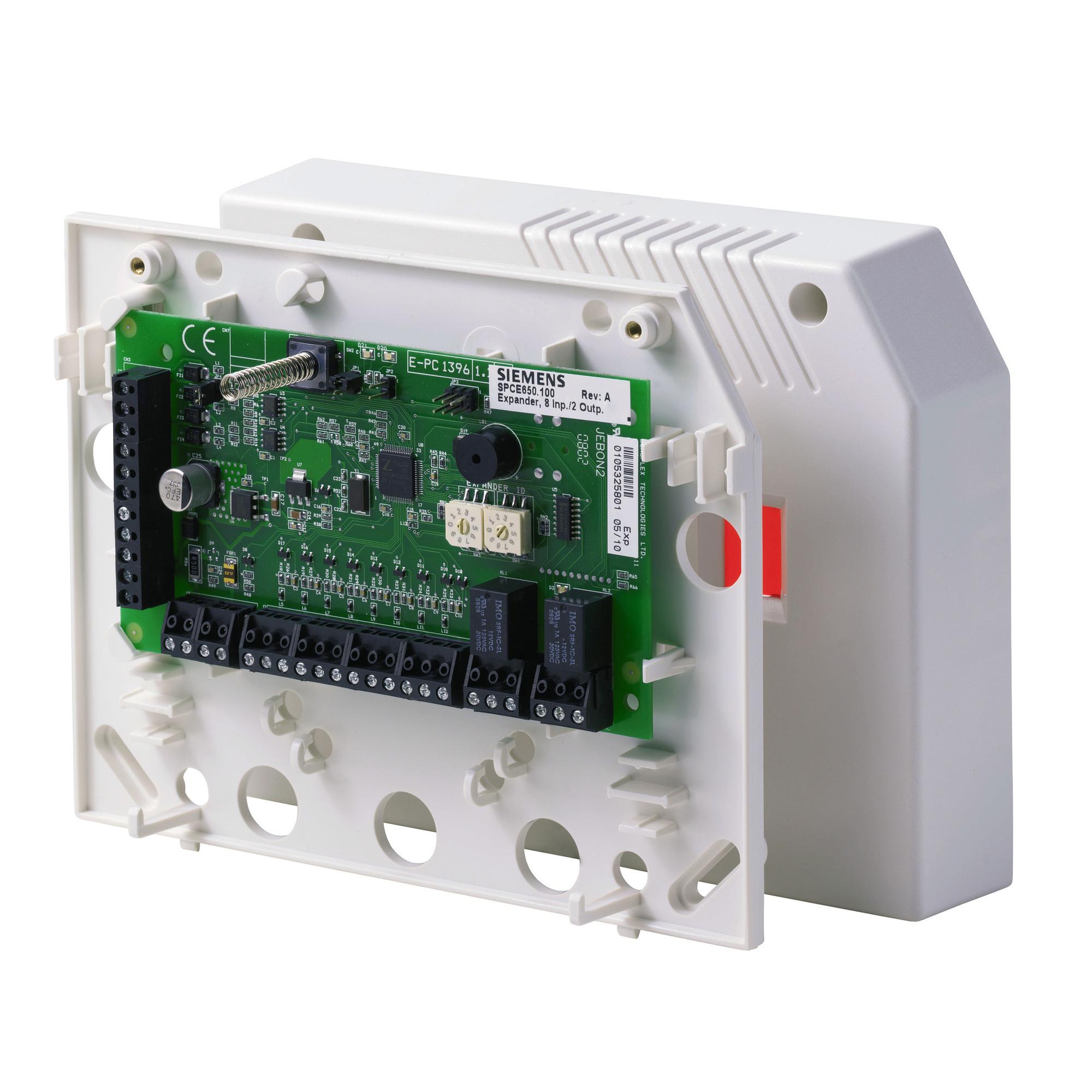

The SPCE651.100 expander extends the acre Intrusion system via X-BUS with 8 analysed zones and 2 fully programmable relay outputs. Analysed zones allow to connect inertia sensors. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.48
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470823
Mindestabnahme 1
ECCN N
Materialkode V54542-F102-A100
Statistisk kode 85311030
Netto vekt 0.456
Opprinnelsesland PH
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Operating temperature: -10 ~ +50 °C
Approval:
Weight: 0.350 kg
Number of on-board relays: 2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Number of on-board zones: 8 (analysed)
Quiescent current: Max. 40 mA at 12 VDC
Operating current: Max. 80 mA at 12 VDC (all relays activated)
Interfaces: X-BUS (in, out, branch)
Tamper contact: Front spring tamper
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 200 x 153 x 47 (mm) (housing),150 x 82 x 20 (mm) (PCB)
