SPCG310.000 E-Bus Gateway

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54554-A101-A100
  • 4025515471134
Produktinformasjon "SPCG310.000 E-Bus Gateway"

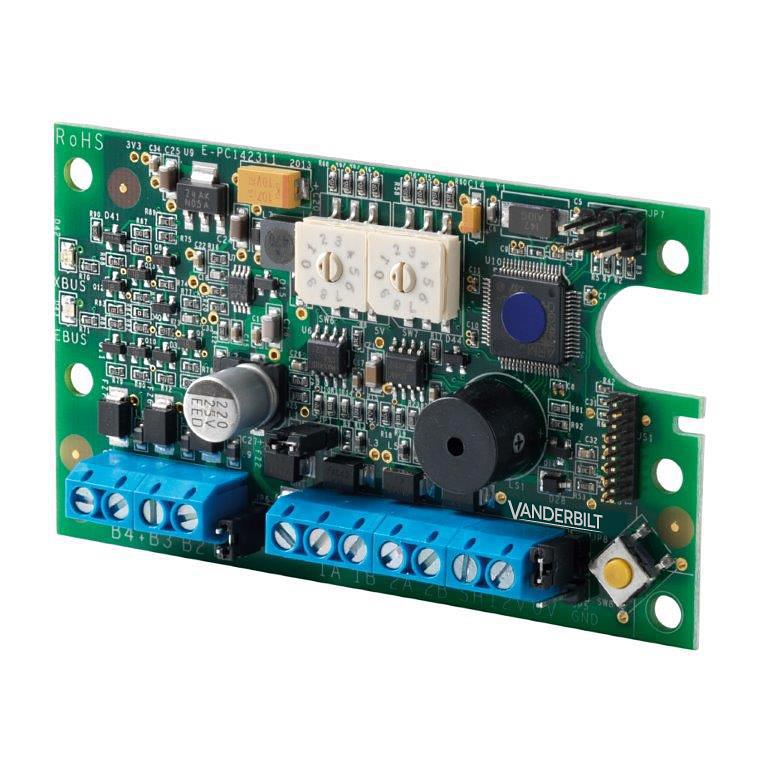

The SPCG310.000 E-BUS Gateway provides an interface between SPC X-BUS and Sintony E-BUS. The gateway enables the SPC controller to recognize Sintony peripheral devices by simulating the E-BUS devices so they appear to the SPC controller as X-BUS devices. The SPC controller supports up to five SPC E-BUS Gateways on its X-BUS. The maximum number of Sintony input zones supported by SPC is 252 and the maximum number of Sintony outputs is 174. The SPCG310.000 is supplied without housing. There are a number of housing options available. The SPC E-BUS Gateway can be mounted within the SPC controller housing, Sintony power supply units or in Sintony transponder housing.
Bruttovekt (KG) 0.08
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515471134
Mindestabnahme 1
Statistisk kode 85311030
Materialkode V54554-A101-A100
Netto vekt 0.076
Opprinnelsesland PH
ECCN EAR99
Interfaces: X-BUS (In / Out) E-Bus
Tamper switch: Yes
Dimensions (L x W x H): 52 x 92 x 13mm
Max. number of hardwired zones: 252 (Sintony Inputs)
Compatibility: - SAT12/SMT12 - SMT22 - SAT24/SMT24 - SMT44 - SAK41 - SAK51 - SAK53 - SAP08 - SAP14 - SAP20 - SAP25
Relative humidity: Max. 90% (non-condensing)
Weight: 0.020 kg
Operating temperature: -10 to +50 °C
Mounting: - SPC controller housing - Sintony transponder housing - Sintony PSU housing
Quiescent current: 40 mA
Operating current: 40 mA
Operating voltage: 9.5 - 14 V DC
Tamper contact: Tamper switch
ECCN: EAR99
