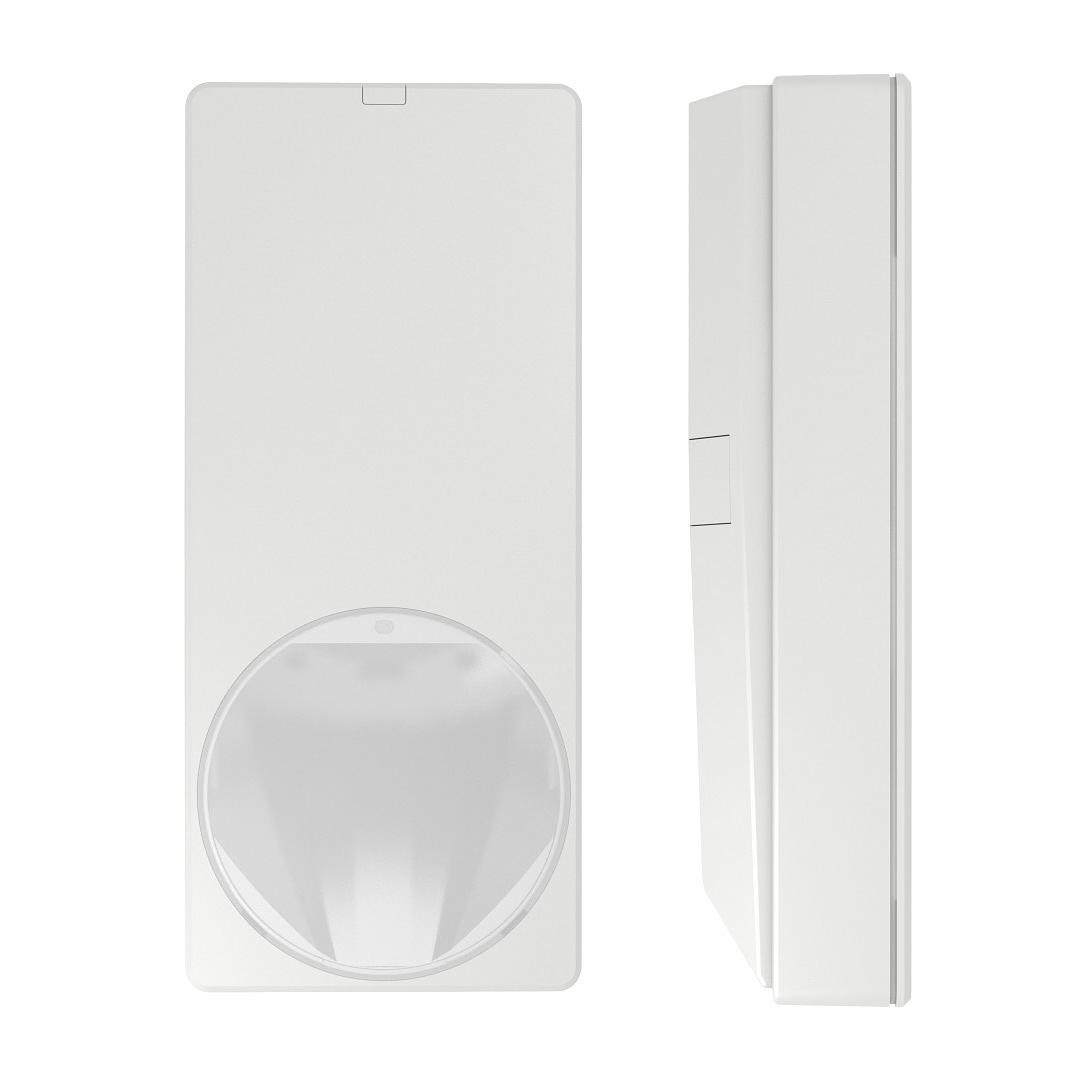

PDM-I18 PIR detector

Forhåndsvisning: PDM-I18 PIR detector Forhåndsvisning: PDM-I18 PIR detector
PDM-I18 PIR detector
PDM-I18 PIR detector

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54530-F106-A100
  • EAN/UPC Strekkode: 4025515470380
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon nyttige lenker
Beskrivelse
Lukk meny
Produktinformasjon "PDM-I18 PIR detector"
MAGIC motion detector PDM-I18 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.16
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470380
Mindestabnahme 1
Statistisk kode 85311030
ECCN EAR99
Opprinnelsesland RO
Netto vekt 0.117
Materialkode V54530-F106-A100
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Pet immunity: no
Supply voltage: 9 ... 16VDC (12V nom.)
Outputs: 30VDC / 100mA, NC
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Air humidity (EN 60721): < 85% RH, non-condensing
Approval: EN50131-2-2 Grade 2 VdS Class B
Current consumption: 2.5mA (rms) 4.7mA (max. peak)
Colour: RAL9003
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW
Weight: 0.115kg
Dimensions (W x H x D): 64 x 147 x 35 (mm)
Storage temperature: -20° ~ +60°C
Operating temperature: -10° ~ +55°C
Detection characteristics / range: Volumetric / 18 m
Housing protection (EN 60529): IP41 / IK02
Sensitivity evaluation mode: 4 settings
Optical system: MAGIC mirror
Walking speed: 0.2 ~ 3m/s
