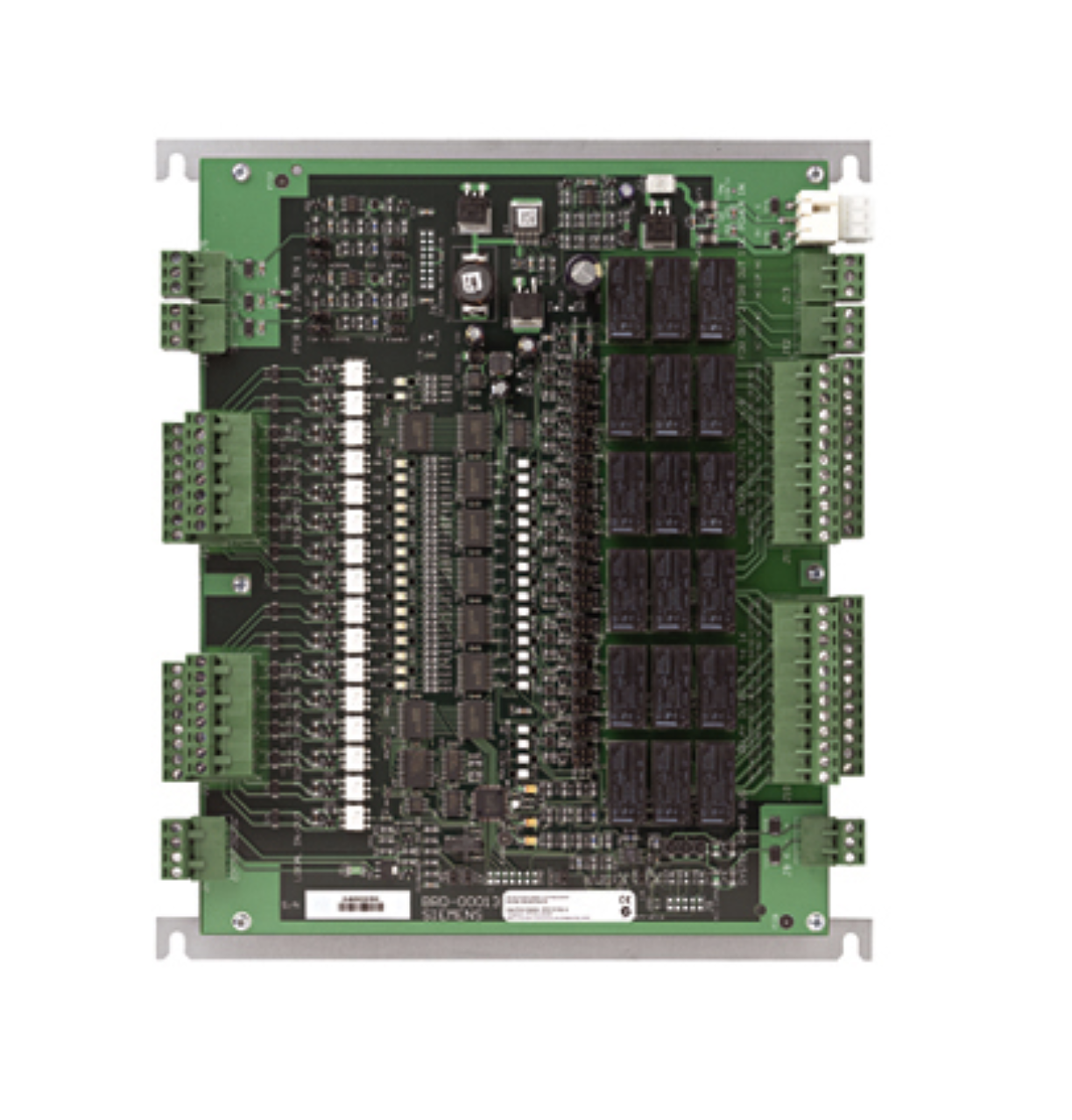

AFO5100 Output Module

AFO5100 Output Module
Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V6FL7820-8CC10
  • EAN/UPC Strekkode: 4025515475132
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon
Beskrivelse
Lukk meny
Produktinformasjon "AFO5100 Output Module"
The AFO5100 is an advanced‚ multi-purpose module that provides an interface between powered field-level input contact devices (such as elevator buttons) and output devices (such as override mechanisms) to the advanced central controller (AC5100‚ AC5102 or AC5200). It is designed for use in elevators that are integrated within an access control environment. A single AFO5100 can provide access control for up to 16 floors and multiple AFO5100 modules can be combined in an elevator system to provide access control for all floors. The fire override mechanism allows floors to be made automatically accessible during an emergency situation‚ a critical feature for sites where legislation requires strict emergency responses.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 1.47
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515475132
Mindestabnahme 1
Opprinnelsesland HU
Materialkode V6FL7820-8CC10
Netto vekt 1.392
Statistisk kode 84733020
ECCN EAR99
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Dimensions (W x H x D): 216 x 267 x 30 mm
Weight: 1.3 kg
Outputs: 16 x Relays (30 VDC‚ 2 A) 1 x Tamper (open-collector 12 VDC‚ 100 mA) 2 x Fire override relays (30 VDC‚ 2 A)
Inputs: 16 x Isolated (unsupervised external voltage required) 1 x Tamper (internally supplied) 2 x Fire override (potential-free or internally supplied)
Indicators: Power‚ Activity‚ Communication Inputs‚ Output Peripheral supplies Fire override
Power consumption: 50 W
Operating voltage: 12 VDC ±10% or 24 VDC ±10%
Interface: To controller: RS485
Interfaces: Al controllore: RS485
Operating temperature: 0 to +50 °C
Approval: CE‚ UL294‚ C-Tick
Firmware: Flash upgradeable
