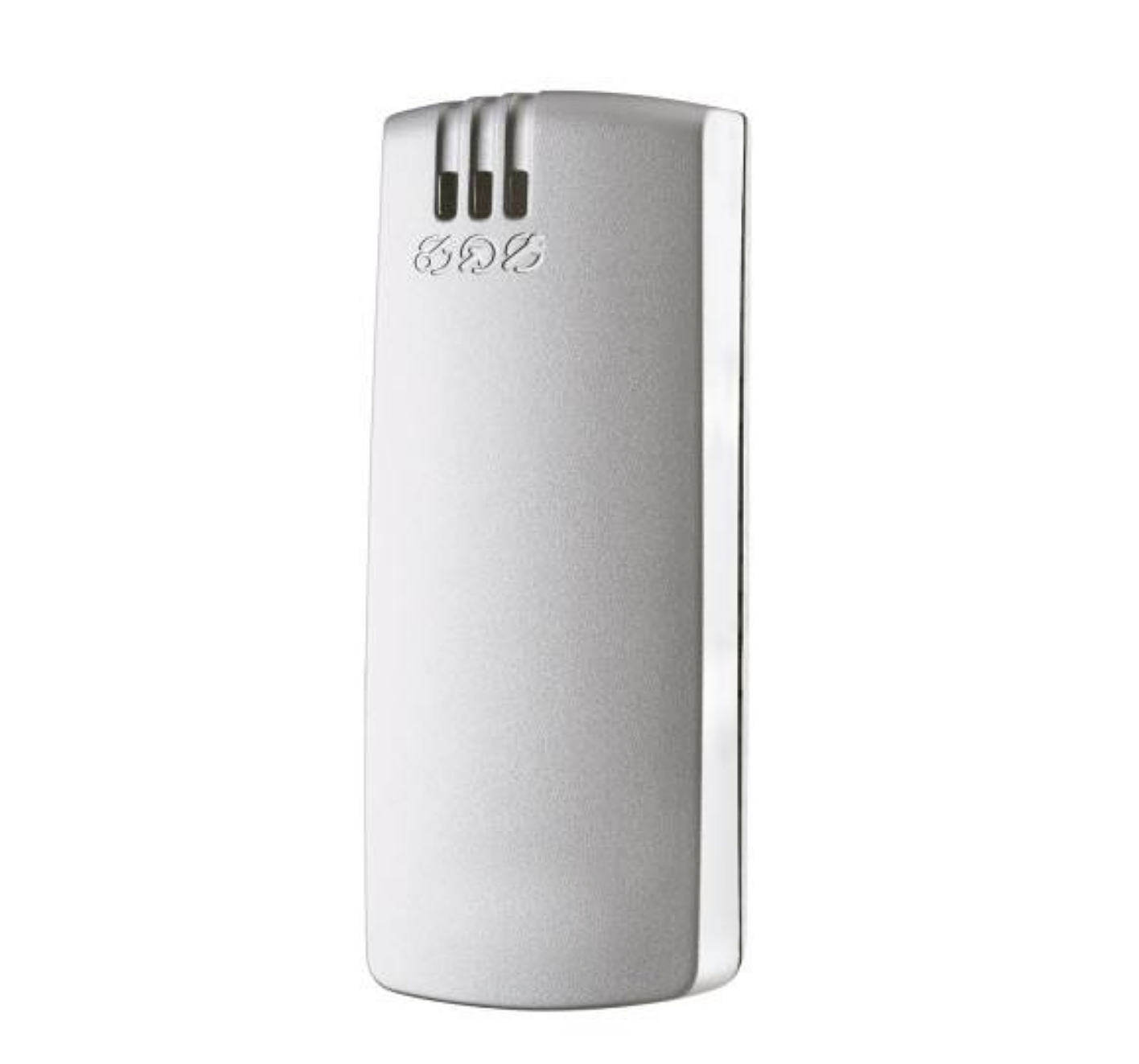

ARS6311-RX Miro/CerPass Card Reader

ARS6311-RX Miro/CerPass Card Reader
Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V24246-Z3900-A1
  • EAN/UPC Strekkode: 4025515474500
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon
Beskrivelse
Lukk meny
Produktinformasjon "ARS6311-RX Miro/CerPass Card Reader"
The ARS6311-RX is a compact and economical reader designed for use with all SiPass systems. In combination with the AC6311 I/O board, it can also be used in standalone mode.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.32
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515474500
Mindestabnahme 1
ECCN N
Statistisk kode 84716070
Opprinnelsesland PL
Netto vekt 0.304
Materialkode V24246-Z3900-A1
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Card compatibility: ABR5100-PR ABR5100-BL ABR5100-TG
Housing protection: IP65
Environment: Indoor & outdoor
Tamper switch: Yes
Tamper protection: Yes
Operating temperature: -25 ~ +60 °C
Colour: Silver (RAL9006)
Current consumption: 32 mA @ 12V DC
Keypad: No
Housing material: ABS plastic
Card read distance: 12 cm (approx.)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz), Vanderbilt Prox
Interface to controller: Clock&Data and Wiegand (26/34/42 bit)
Weight: 0.30kg
Dimensions (W x H x D): 40 x 100 x 25 (mm)
Operating voltage: 10 ~ 16 VDC
Housing protection (EN 60529): IP65
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Housing: ABS plastic
Operation temperature: -25°C ~ +60°C
