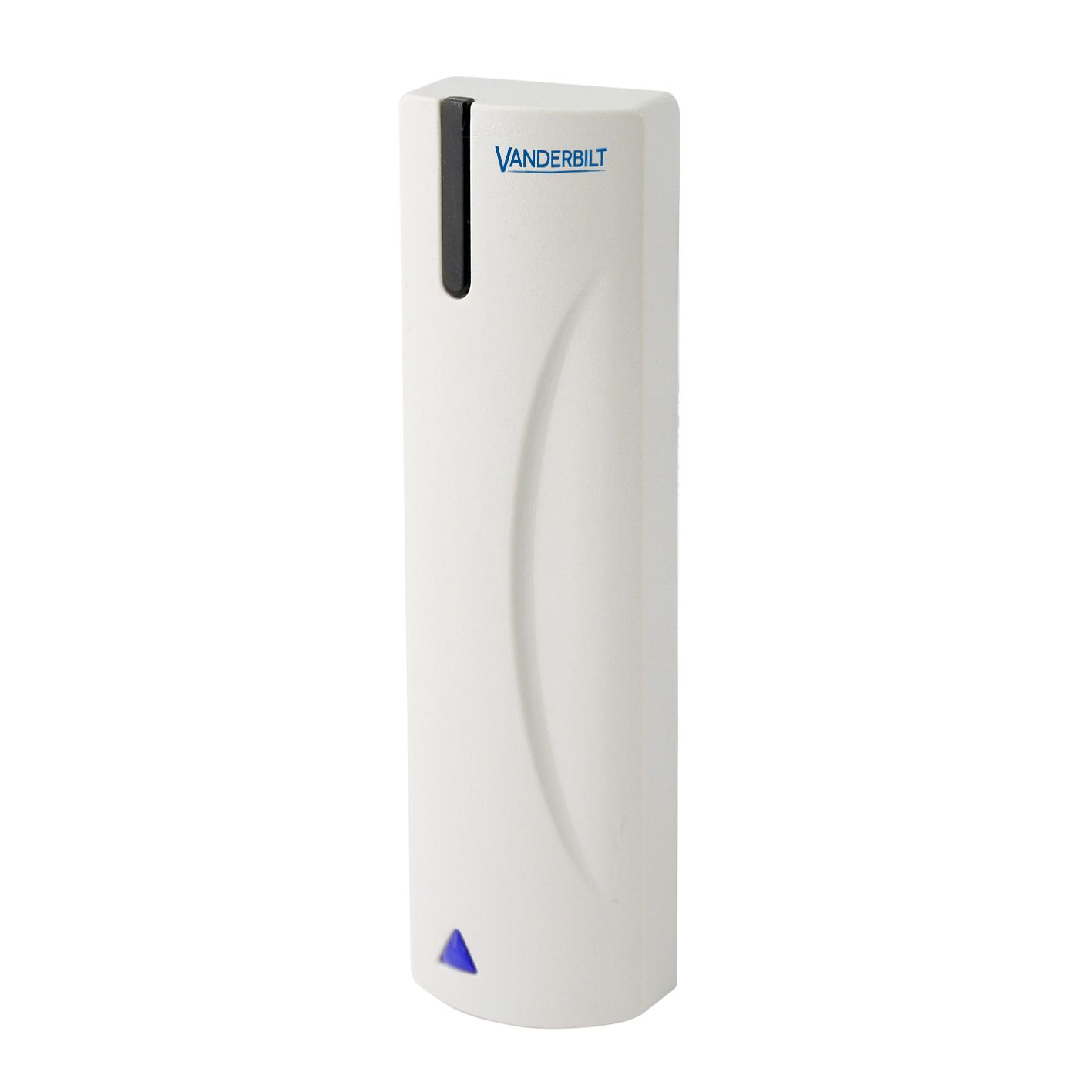

PR500-EM Prox 125kHz Mullion Reader

PR500-EM Prox 125kHz Mullion Reader
Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V24246-F3913-A1
  • EAN/UPC Strekkode: 4025515473527
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon
Beskrivelse
Lukk meny
Produktinformasjon "PR500-EM Prox 125kHz Mullion Reader"
The PR500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It has slim and compact design and blends in well in many environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.11
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515473527
Mindestabnahme 1
Statistisk kode 84719000
ECCN EAR99
Opprinnelsesland PH
Netto vekt 0.110
Materialkode V24246-F3913-A1
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Housing protection (EN 60529): IP55
Environment: Indoor or outdoor use
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
Card compatibility: IB41-EM, IB42-EM IB44-EM, IB45-EM
Tamper protection: No
Card read distance: Up to 10 cm
Current consumption: 22 mA @ 12V DC 25 mA @ 24V DC
Keypad: No
Weight: 0.11 kg
Housing material: ABS base with clip on ABS front cover
Housing: ABS base with clip on ABS front cover
Operation temperature: -30°C ~ +50°C
Operating temperature: -30 ~ +50 °C
Dimensions (W x H x D): 40 x 140 x 18.5 (mm)
Tamper switch: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Housing protection: IP55
Colour: White
Operating voltage: 10.6 ~ 32 VDC
