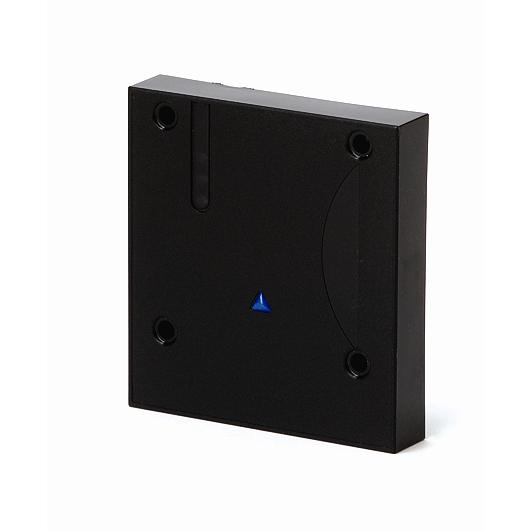

PM500-EM Prox 125kHz Reader panel mount

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her

Produkt-nr.: V24246-F3903-A1
EAN/UPC Strekkode: 4025515473510

Lukk meny

Produktinformasjon "PM500-EM Prox 125kHz Reader panel mount"

The PM500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It is designed to fit most remote call point enclosures. It is supplied with a custom-machined perspex front panel for increased aesthetic appeal. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.

Lukk meny

Certificate (CE) - Issued by Vanderbilt, on 04/11/2020

Bruttovekt (KG)	0.18
Kjøp enhet	PCE
EAN/UPC Strekkode:	4025515473510
Mindestabnahme	1
Opprinnelsesland	PH
ECCN	EAR99
Statistisk kode	84716070
Netto vekt	0.171
Materialkode	V24246-F3903-A1

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Lukk meny

Housing protection (EN 60529):	IP55
Colour:	Black
Weight:	0.15 kg
Interface to controller:	BC-Link, Clock&Data or Wiegand* (*req.config card)
Card technology:	EM4102 (also known as Miro or UNIQUE 125 KHz)
Card compatibility:	IB41-EM, IB42-EM IB44-EM, IB45-EM
Tamper protection:	No
Card read distance:	Up to 5 cm
Tamper switch:	No
Current consumption:	20 mA @ 12V DC 24 mA @ 24V DC
Housing material:	High impact polycarbonate outer casing, with encapsulated electronics
Housing:	High impact polycarbonate outer casing, with encapsulated electronics
Operation temperature:	-30°C ~ +50°C
Operating temperature:	-30 ~ +50 °C
Operating voltage:	10.6 ~ 32 VDC
Environment:	Indoor or outdoor use
Keypad:	No
Indicators:	3 x LED (red/yellow/green) 1 x Buzzer
Housing protection:	IP55
Dimensions (W x H x D):	68 x 73 x 13.5 (mm)
