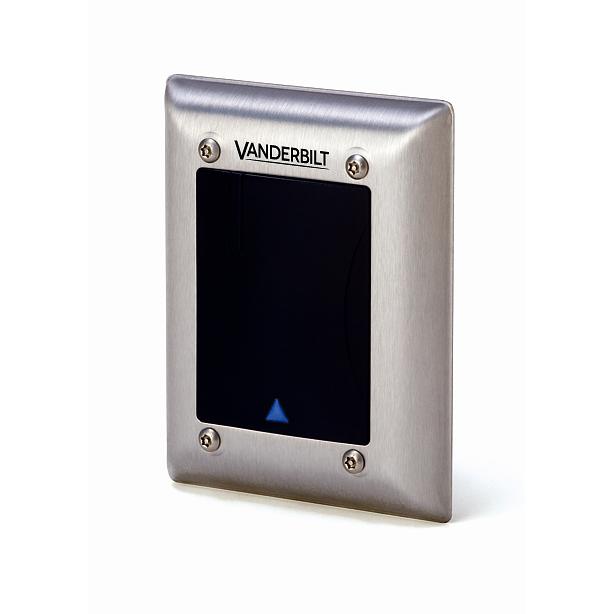

HD500-EM Prox 125kHz Reader Heavy Duty

HD500-EM Prox 125kHz Reader Heavy Duty
Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V24246-F3901-A1
  • EAN/UPC Strekkode: 4025515473497
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon
Beskrivelse
Lukk meny
Produktinformasjon "HD500-EM Prox 125kHz Reader Heavy Duty"
The HD500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). Vandal-proof and fire-resistant, it is popular both in vulnerable locations and modern office environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.33
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515473497
Mindestabnahme 1
Opprinnelsesland PH
ECCN EAR99
Statistisk kode 84716070
Netto vekt 0.314
Materialkode V24246-F3901-A1
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Weight: 0.24 kg
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
Card compatibility: IB41-EM, IB42-EM IB44-EM, IB45-EM
Card read distance: Up to 6 cm
Current consumption: 20 mA @ 12V DC 22 mA @ 24V DC
Colour: Black and stainless steel
Tamper protection: No
Operating voltage: 10.6 to 32 VDC
Housing material: Polycarbonate case, fully encapsulated electronics, stainless steel outer frame
Housing protection (EN 60529): IP65
Housing: Polycarbonate case, fully encapsulated electronics, stainless steel outer frame
Housing protection: IP65
Operating temperature: -30 ~ +50 °C
Environment: Indoor or outdoor use
Tamper switch: No
Keypad: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Dimensions (W x H x D): 100 x 128 x 18 (mm)
