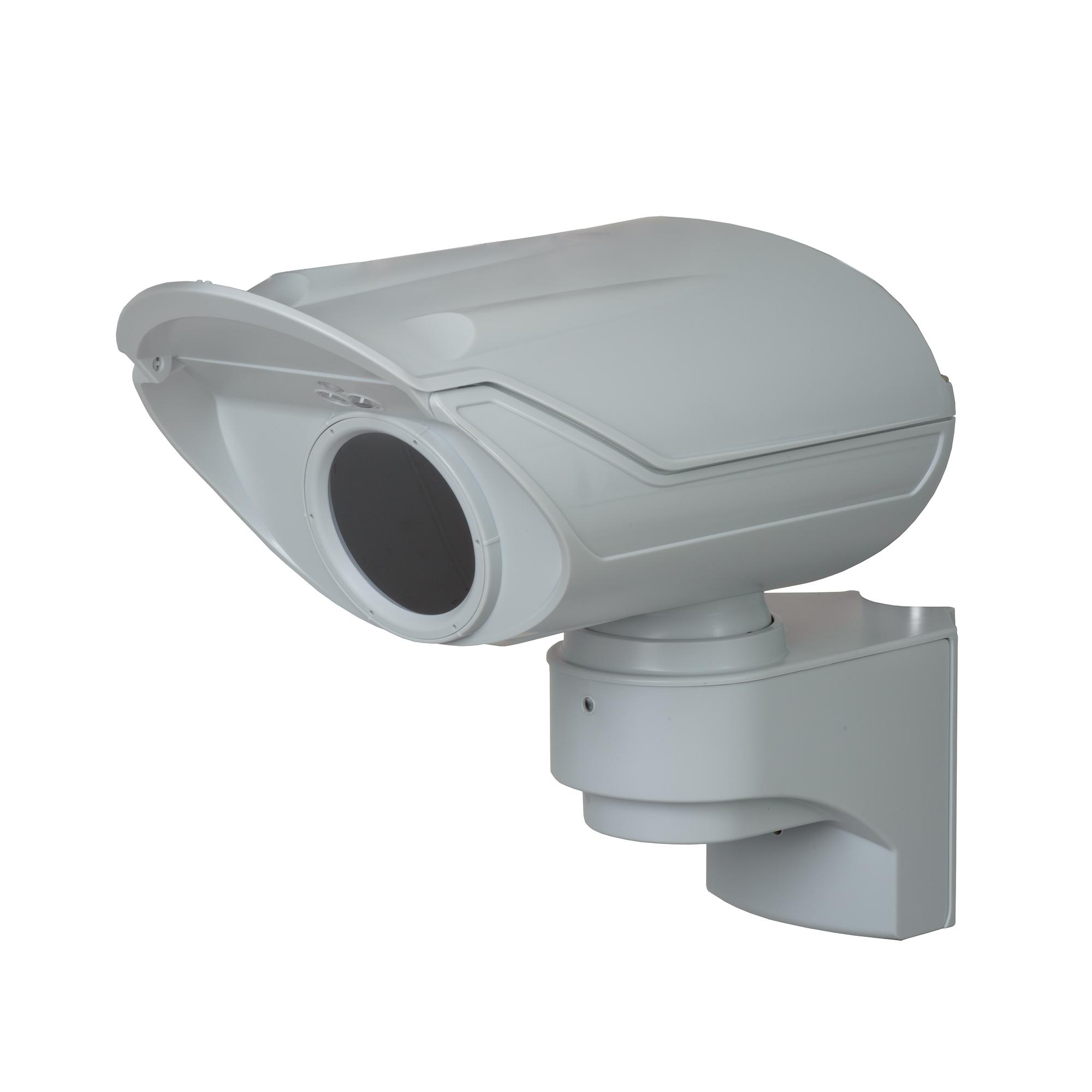

PRO-E-100H Ext long rng curtain/heater

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54533-Z116-A100
  • 4025515476894
Produktinformasjon "PRO-E-100H Ext long rng curtain/heater"
The PRO-E-100H is suitable for outdoor applications requiring a medium range curtain view. The detector has a universal mounting facility for walls or poles. Sophisticated tamper detection provides a secure method of external detection. The detector has an internal cable management system. The detector has quick set up function, with options for additional settings. Heater for harsh environments.
Bruttovekt (KG) 1.975
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515476894
Mindestabnahme 1
Statistisk kode 85319000
Materialkode V54533-Z116-A100
ECCN EAR99
Netto vekt 1.650
Opprinnelsesland CN
Cable entry: diameter 2 x 4-7 (mm)
Switching voltage: 10.5 - 30 VDC, 24VAC+/- 15% auto-sensing
Alarm output: Programmable 1 x fault = power supply, temperature, heating, anti-mask, watchdog. Programmable 1 x tamper = housing cover, alignment, cable management cover, removal Programmable 2 x 360Protect = anti-mask, zone, or other events
Detection characteristics / range: 150m x 3.3m (Lx W) -1m and up to +8m near surrounding area
Housing material: Luran® S (ASA)
Sensitivity: Default 40%, 75% , 100% (standard sensitivity)
Mounting: Wall and pole mounting, cable management bracket included
Weight: 0.98Kg
Sensitivity adjustment: 20% - 140% (% of standard)
Housing protection: IP65
Dimensions (L x W x H): 358 x 188 x 290 (mm)
