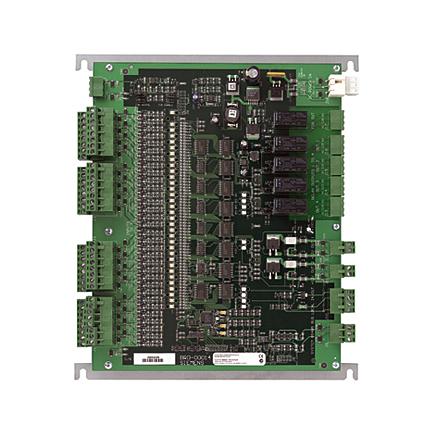

Produktinformasjon "AFI5100 Input Point Module"

The AFI5100 is a programmable input controller used as part of a SiPass integrated system. It provides a local interface between the advanced central controller (AC5100‚ AC5102 or AC5200) and the devices used to monitor a facility‚ such as infrared detectors. When an input device that is connected to an AFI5100 changes status‚ the AFI5100 registers the status change and forwards this data to the controller. After checking the validity of the data‚ the controller sends the message to the SiPass integrated server‚ so the alarm-handling mechanism can respond appropriately.

Lukk meny

Bruttovekt (KG)	1.33
Kjøp enhet	PCE
EAN/UPC Strekkode:	4025515475125
Mindestabnahme	1
Opprinnelsesland	HU
ECCN	EAR99
Materialkode	V6FL7820-8CB10
Netto vekt	1.140
Statistisk kode	84733020

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Lukk meny

Firmware:	Flash upgradeable
Operating temperature:	0 ~ +50 °C
Current consumption:	50 W
Interfaces:	To controller: RS485
Indicators:	Power‚ Activity‚ Communication Inputs‚ Output Peripheral supplies Fire override
Outputs:	4 x Auxiliary relays (30 VDC‚ 2 A) 1 x Alarm output (open-collector 12VDC‚ 200 mA) 1 x Fire override relay (30 VDC‚ 2 A)
Inputs:	32 x internally supplied (supervised or unsupervised) 1 x Tamper (internally supplied) 1 x Fire override (potential-free or internally supplied)
Power consumption:	50 W
Operating voltage:	12 VDC ±10% or 24 VDC ±10%
Interface:	To controller: RS485
Weight:	1.35 kg
Approval:	CE‚ UL294‚ C-Tick
Dimensions (W x H x D):	250 x 287 x 30 (mm)
