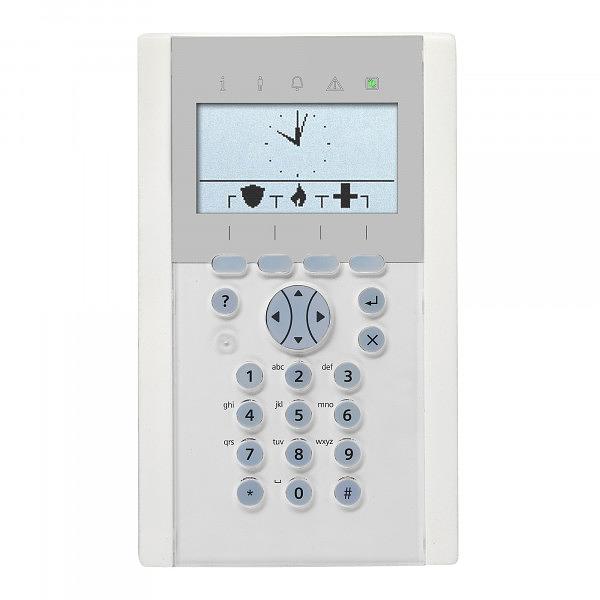

ATI5100 Intrusion arming terminal

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V24246-F2605-A1
  • 4025515474449
Produktinformasjon "ATI5100 Intrusion arming terminal"
ATI5100 is a field terminal designed for use with SiPass integrated. It acts as a local interface between an advanced central controller (AC5100‚ AC5102 or AC5200) and authorised cardholders‚ enabling them to carry out tasks such as arming and disarming intrusion alarm areas.
Bruttovekt (KG) 0.555
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515474449
Mindestabnahme 1
Statistisk kode 84733020
ECCN 3A991
Materialkode V24246-F2605-A1
Netto vekt 0.527
Opprinnelsesland PH
Housing protection: IP30
Operating voltage: 9.5 – 14 VDC
Current consumption: Max. 155 mA at 12 VDC
Buzzer: Integrated Sound
Approval: CE- UL Pending
Dimensions (W x H x D): 112 x 185 x 28 mm
Housing: Polycarbonate
Display: LC: 128 x 64 dots Four lines with 16 characters per line
Interface: To controller: RS485
Tamper switch: Yes
Operating temperature: 5° ~ +40 °C
Weight: 0.38 kg
Colour: RAL 9003
Firmware: Flash upgradeable
Relative humidity: Max. 90 % (non-condensing)
