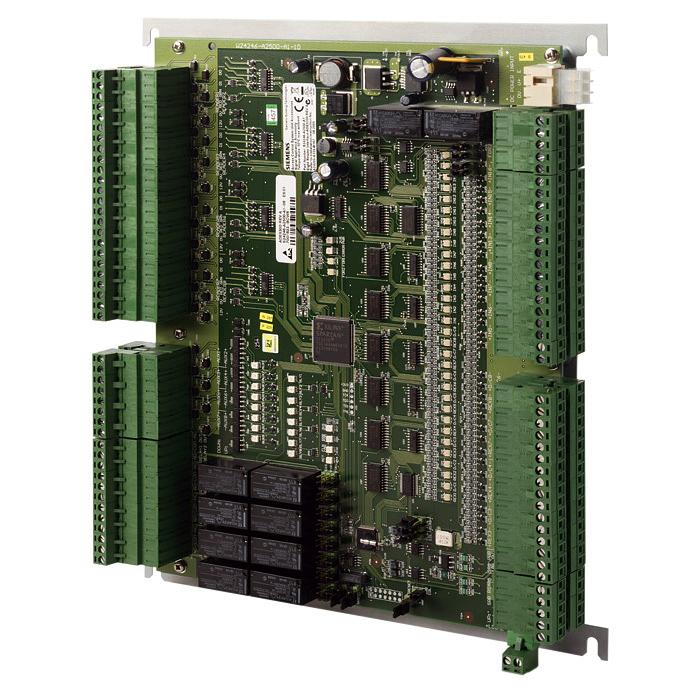

ADE5300 Eight Reader Interface

ADE5300 Eight Reader Interface
Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V24246-A2500-A1
  • EAN/UPC Strekkode: 4025515475316
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon
Beskrivelse
Lukk meny
Produktinformasjon "ADE5300 Eight Reader Interface"
The ADE5300 provides a local interface between the advanced central controller (AC5100‚ AC5102 or AC5200) and up to 8 card readers. From the ADE5300‚ the information held within the access cards is transmitted to the controller. Each time an access attempt is made the controller verifies the data on the ID card and will then either allow or deny access. The ADE5300 can be configured to control up to 8 doors separately or up to 4 doors that include both entry and exit readers. All variations are possible; for example‚ you can have six single-reader doors and 1 dual-reader door connected to one ADE5300.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 1.6
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515475316
Mindestabnahme 1
ECCN N
Opprinnelsesland HU
Materialkode V24246-A2500-A1
Netto vekt 1.520
Statistisk kode 84733020
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Interface: FLN connection to controller: RS485 To readers: Support for eight readers via RS485 or Wiegand
Interfaces: FLN connection to central controller: RS485 Connection to readers: support for 8 RS485 or Wiegand readers
Approval: CE, UL294, C-Tick
Weight: 1.65 kg
Indicators: Power, Activity, FLN Communication, Reader bus communication, Input/output, Fire override
Inputs: 8 x Door contact 8 x Request-to-exit 16 x Auxiliary All inputs unsupervised or supervised 2 x Fire override (normal or enhanced mode)
Outputs: 8 x Lock output relay (30 VDC, 2 A) 8 x Open-collector output (100 mA, 9.7-12 VDC) 2 x Fire override relay (30 VDC, 2 A)
Current consumption: Max. 2 A at 12 V, max. 1.5 A at 24 V
Power output: Reader: 8 x 400 mA‚ 12 VDC Ancillary: 1 x 1.5 A‚ 12 VDC
Operating voltage: 12 VDC ±10 % or 24 VDC -± 10 %
Tamper switch: Optional, auxiliary input
Firmware: Flash upgradeable
Dimensions (W x H x D): 250 x 287 x 50 (mm)
