GB-5000-IN Relay-Interface for GB

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her

Produkt-nr.: V54550-F112-A100
EAN/UPC Strekkode: 4025515478911

Lukk meny

Produktinformasjon "GB-5000-IN Relay-Interface for GB"

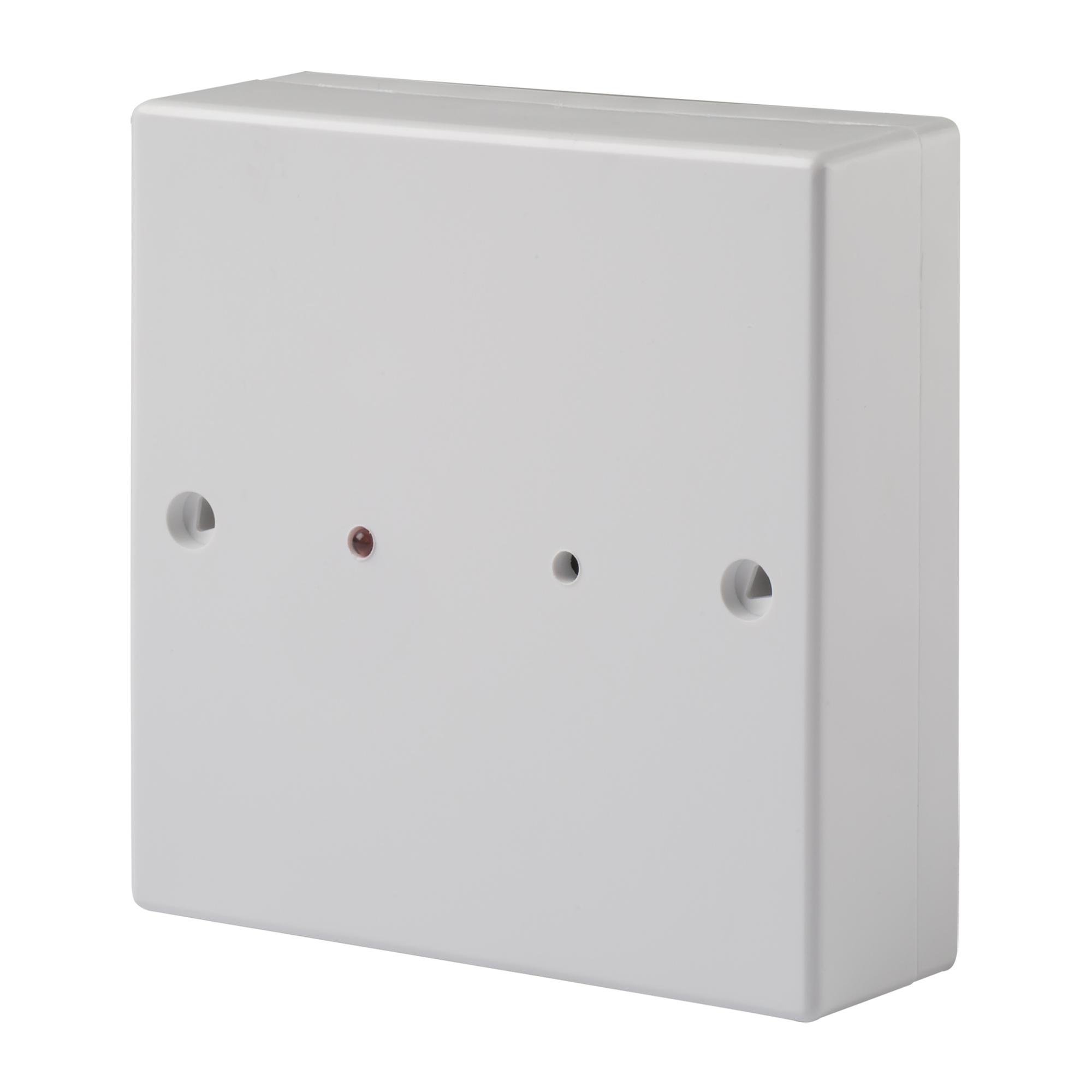

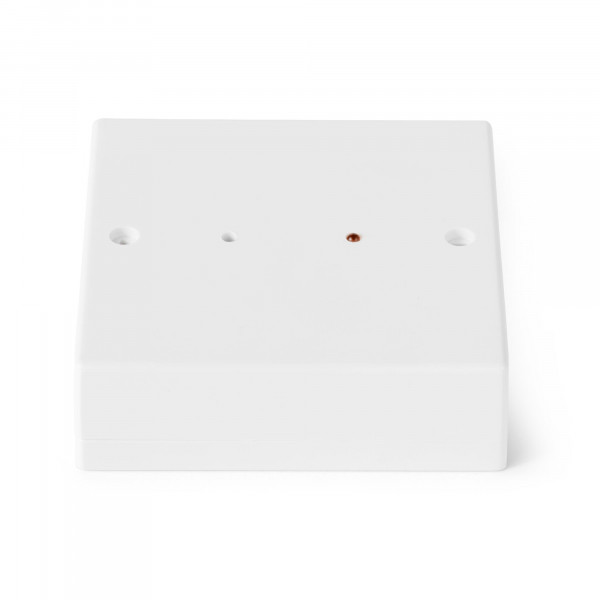

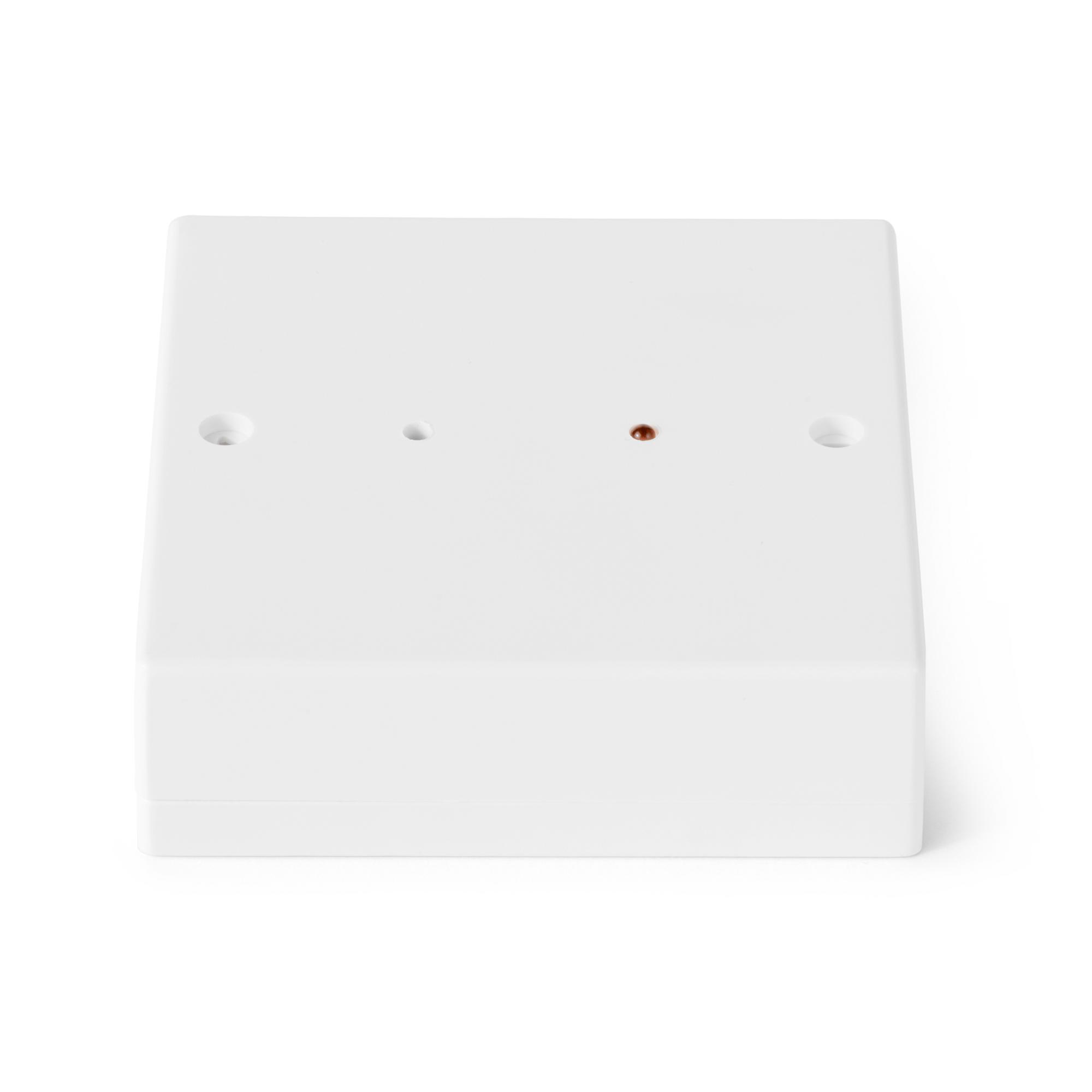

The Relay-Interface is needed, if the line doesn’t allow to connect glass break detectors. This could happen because of several reasons: At series-technology, digital supervision or if the line-voltage is below 3 V. As a connecting link between a glass break detector and the panel, the Relay-Interface can be connected at or in each loop because of it’s floating relay-contact. The electronic is placed in a plastic case. It allows the lead-in of wire on three sides. The housing-cover is monitored against unauthorized opening by a tamper-switch. Secondary Packaging: 25 Units

Lukk meny

Bruttovekt (KG)	0.08
Kjøp enhet	PCE
EAN/UPC Strekkode:	4025515478911
Mindestabnahme	1
ECCN	N
Materialkode	V54550-F112-A100
Statistisk kode	85311030
Netto vekt	0.076
Opprinnelsesland	DE

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Lukk meny

Quiescent current:	5 mA
EOL resistor:	2.2 kΩ
Approval:	VdS Klasse B (pending)
Housing material:	S-B, A-B-S
Operating temperature:	30 °C ~ 60 °C
Switching voltage:	Max. 24 VDC
Current consumption, quiescent:	5 mA
Current consumption:	13.5 mA
Environmental class:	II
Contact resistance:	5 Ω
Switching current:	Max. 200 mA
Supply voltage:	10 ~ 15 V DC
