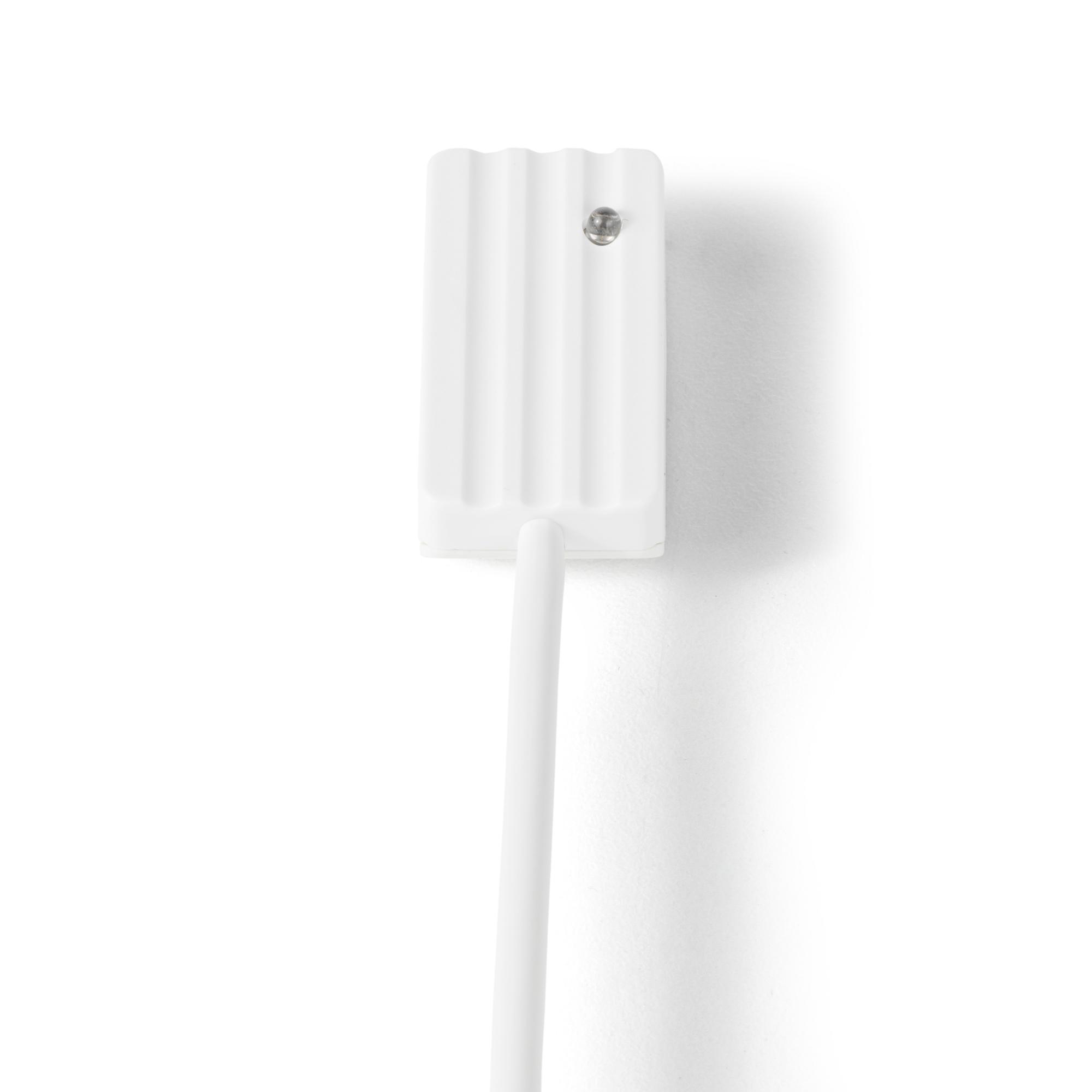

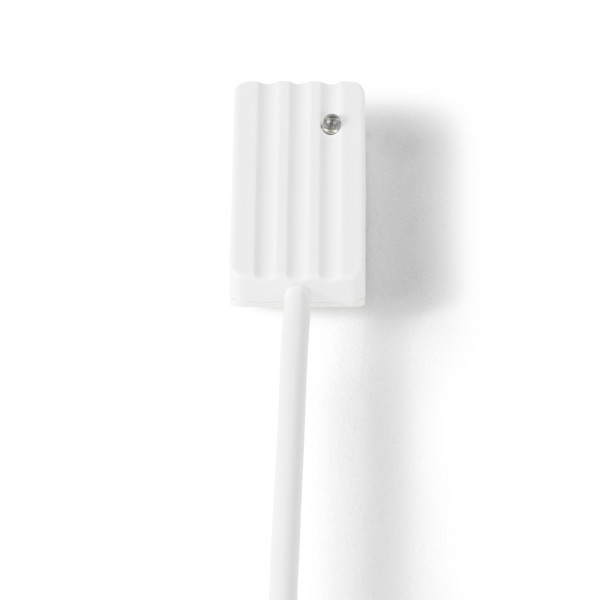

GB-5300-6 Glassbreak detector,6m

Forhåndsvisning: GB-5300-6 Glassbreak detector,6m Forhåndsvisning: GB-5300-6 Glassbreak detector,6m
GB-5300-6 Glassbreak detector,6m
GB-5300-6 Glassbreak detector,6m

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54535-F102-A200
  • EAN/UPC Strekkode: 4025515478461
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon
Beskrivelse
Lukk meny
Produktinformasjon "GB-5300-6 Glassbreak detector,6m"
The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations. The detectors can be used in combination with the interface unit, GB-5000-IN, in bigger installations where you have to consider power consumption. It is possible to connect up to 20 detectors to one interface unit. Secondary Packaging: 25 Units
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.17
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515478461
Mindestabnahme 1
ECCN N
Materialkode V54535-F102-A200
Netto vekt 0.102
Statistisk kode 85311030
Opprinnelsesland DE
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Quiescent current: ˂1 µA (ca. 20 nA)
Reset voltage: Max. 1 V
Current consumption, quiescent: ˂1 µA (ca. 20 nA)
Supply voltage: 3 – 16 V DC
Approval: VdS Klasse B (pending) EN 50131-2-7-2, Grade 2 (pending) SBSC, Larmklass 1/2 (pending)
Environmental class: III
Housing protection: IP67
Housing material: S-B
Operating temperature: -25 ~ 70 °C
Cable length: 6 m
Current consumption: 4 mA (6 VDC)
Dokumentasjon
