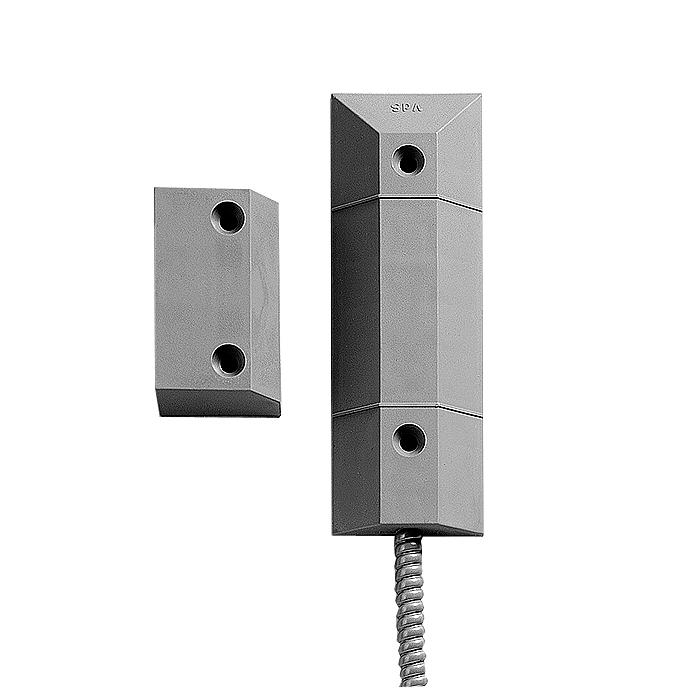

AMK4LSA-1M Magn.cont.surf.mt.,1m

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • VDE6:9906620013
  • 4025515476764
Produktinformasjon "AMK4LSA-1M Magn.cont.surf.mt.,1m"
Bruttovekt (KG) 0.33
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515476764
Mindestabnahme 1
ECCN N
Materialkode VDE6:9906620013
Opprinnelsesland DE
Netto vekt 0.314
Statistisk kode 85365080
Approval: VdS geprüft, Klasse B, Nr.: G 191565
Cable length: 1.2 m
Housing material: PA-GF
Contact resistance: 0.15 Ω
Supply voltage: max. 40 VDC
Colour: Grey
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Housing protection: IP67
Dimensions housing: 146 x 50 x 16.5 (mm)
