PDM-I12T(50) PIR AM detector (50pcs)

Forhåndsvisning: PDM-I12T(50) PIR AM detector (50pcs) Forhåndsvisning: PDM-I12T(50) PIR AM detector (50pcs)
PDM-I12T(50) PIR AM detector (50pcs)
PDM-I12T(50) PIR AM detector (50pcs)

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: L54543-F105-A100
Beskrivelse Import og eksport Ressourcen Teknisk data Dokumentasjon
Beskrivelse
Lukk meny
Produktinformasjon "PDM-I12T(50) PIR AM detector (50pcs)"

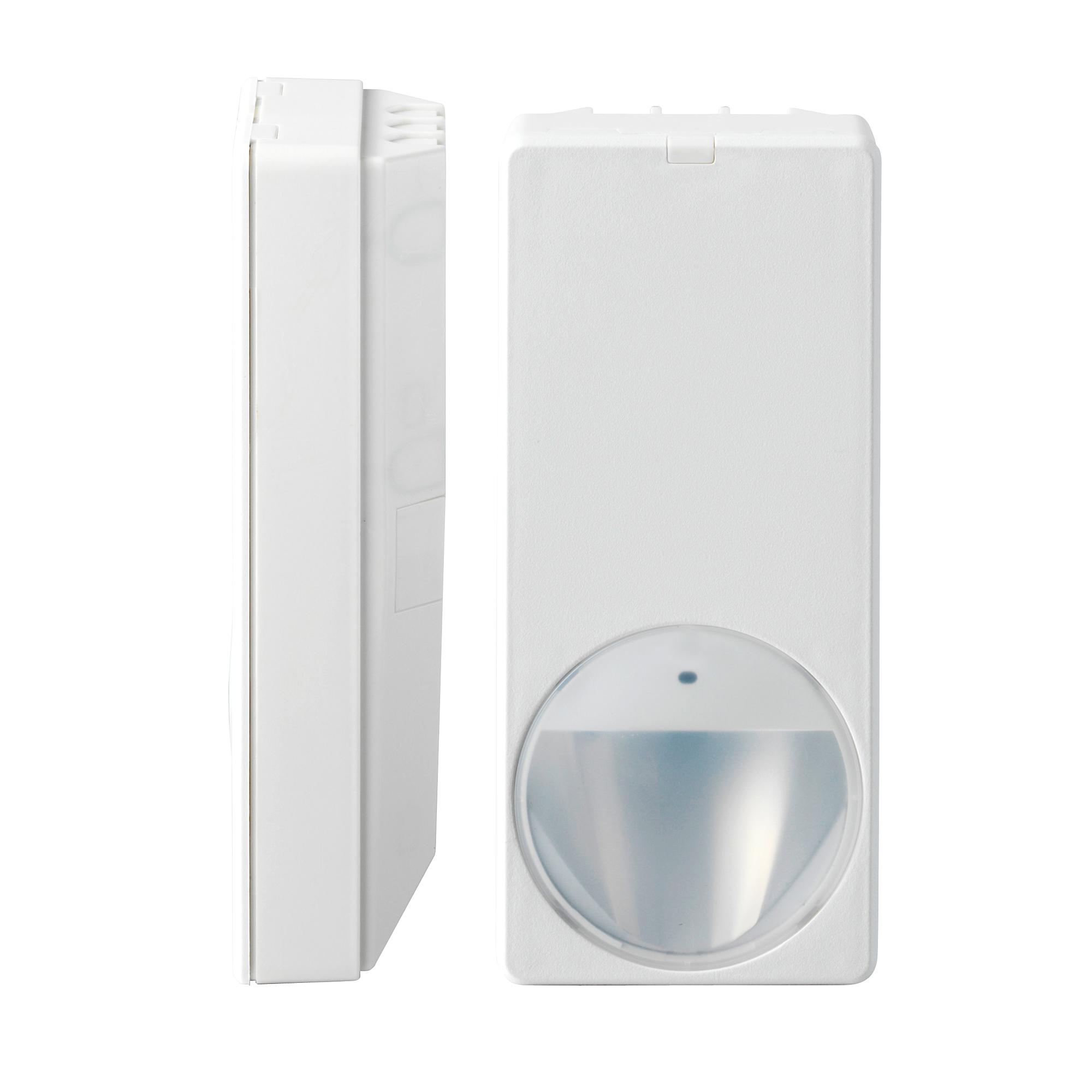

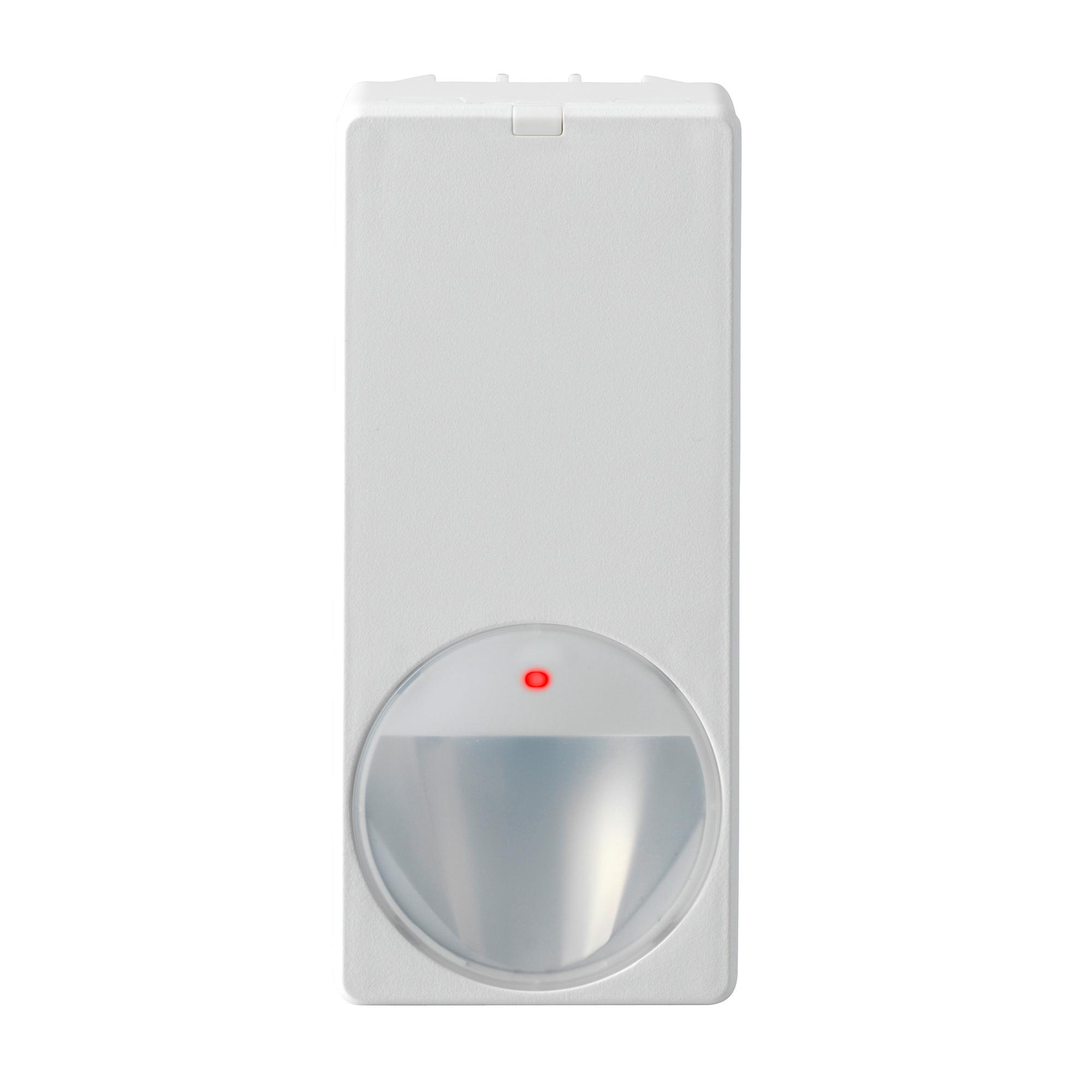

Product information "PDM-I12T PIR AM detector" Multi-pack of 50 pieces of the MAGIC motion detector PDM-I12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error- free due to features like Auto Walktest and new End-of-Line concept (EoL).
Import og eksport
Bruttovekt (KG) 0.1
Kjøp enhet
Mindestabnahme 1
Statistisk kode 85311030
ECCN EAR99
Opprinnelsesland RO
Netto vekt 0.100
Materialkode L54543-F105-A100
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Colour: RAL9003
Current consumption: 3.9mA (rms) 6.6mA (max peak)
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Operating temperature: -10° ~ +55°C
Outputs: 30VDC / 100mA, NC
Sensitivity evaluation mode: 4 settings
Storage temperature: -20°C ~ +60°C
Supply voltage: 9 ~ 16VDC (12V nom.)
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Walking speed: 0.1 ~ 4m/s
Weight: 0.095kg
Dimensions (L x W x H): 57 x 128 x 32 (mm)
Housing protection: IP41 / IK02
Approval: EN50131-2-2 Grade 3 VdS Class C
Air humidity (EN 60721): < 85% RH, non-condensing
Pet immunity: Yes (optional)
Optical system: MAGIC mirror
Range: Volumetric / 12m
Dokumentasjon
