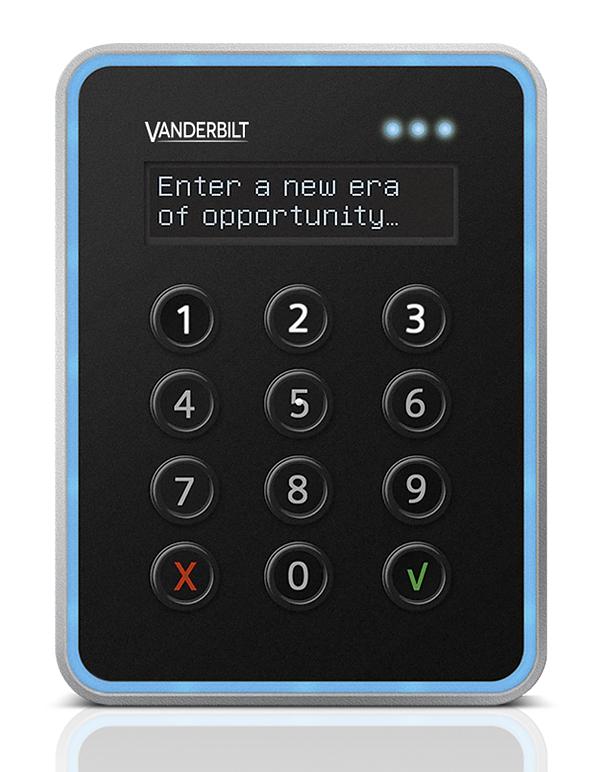

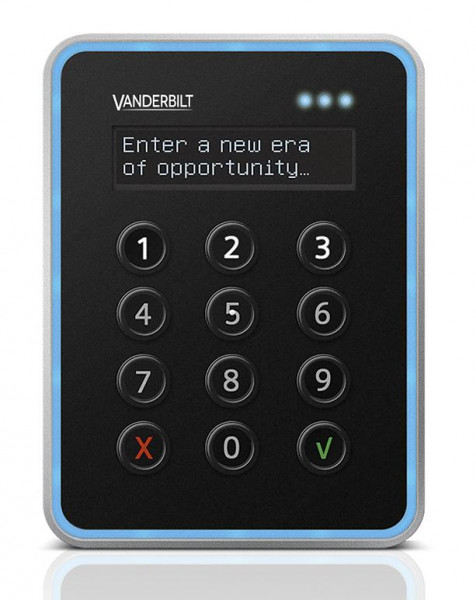

VR40S-MF NGCR MIFARE EV1 Reader +keypad

Forhåndsvisning: VR40S-MF NGCR MIFARE EV1 Reader +keypad Forhåndsvisning: VR40S-MF NGCR MIFARE EV1 Reader +keypad Forhåndsvisning: VR40S-MF NGCR MIFARE EV1 Reader +keypad Forhåndsvisning: VR40S-MF NGCR MIFARE EV1 Reader +keypad
VR40S-MF NGCR MIFARE EV1 Reader +keypad
VR40S-MF NGCR MIFARE EV1 Reader +keypad
VR40S-MF NGCR MIFARE EV1 Reader +keypad
VR40S-MF NGCR MIFARE EV1 Reader +keypad

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54504-F102-A100
  • EAN/UPC Strekkode: 4025515469841
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon Software nyttige lenker
Beskrivelse
Lukk meny
Produktinformasjon "VR40S-MF NGCR MIFARE EV1 Reader +keypad"
Designed for today’s bright, clean interiors, yet robust in service, the VR40S-MF is easy to install, use and maintain. The VR40S-MF has three indicator LEDs and a multi tone buzzer for audio verification. A multicolour light frame enforces access status information. This can be configured to follow the indicator LEDs, or any number of different options. It has a high quality backlight keypad with tactile feedback as well as a graphical OLED display to maximise user interaction with arming, access and recognition messaging etc., resulting in improved and enhanced user interaction “at the door”. Display brilliance is set automatically by an inbuilt light sensor.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.65
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515469841
Mindestabnahme 1
Statistisk kode 84719000
ECCN EAR99
Opprinnelsesland RO
Netto vekt 0.561
Materialkode V54504-F102-A100
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Weight: 0.628kg
Housing material: Zinc casted metal bezel with polycarbonate plastic front
Operation temperature: -40°C to +55°C (surface mounted) -10°C to +55°C (back box mounted)
Keypad: Yes
Display: Yes, graphic monochrome OLED
Current consumption: DC 12V: 60mA (Max: 220mA) DC 24V: 40mA (Max 125mA)
Approval: CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)
Air humidity (EN 60721): 5-95% non-condensing
Housing protection: IP55 (surface mounted) IP3X (back box mounted)
Impact rating: IK08
Indicators: 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame
Power consumption: DC 12V = 60mA (220mA Peak); DC 24V = 40mA (125mA Peak)
Card compatibility: MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only)
Dimensions (W x H x D): Surface mounted: 85 x 114 x 22 (mm) ; Back box mounted: 85 x 114 x 14 (mm)
Environment: Indoor/outdoor use
Colour: Black, matt chrome
Card technology: MIFARE
Interface to controller: RS485 OSDP
Card read distance: Up to 6 cm
Tamper protection: Yes
Operating voltage: 8.5 ~ 30.0 VDC
