SG3200AK/OP Compact alerting

SG3200AK/OP Compact alerting
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: NDE6:9908440013
  • EAN/UPC-Code: 4025515476597
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu

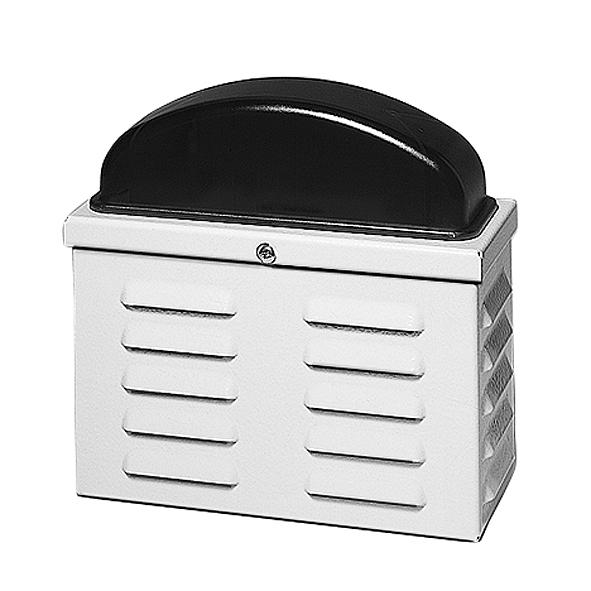

Product information "SG3200AK/OP Compact alerting"
The protective housing is made of powder-coated aluminum (1.5 mm) with corrosion-resistant protective coating, an interior sheet as extra protection against sabotage and a cover contact. The siren is equipped with a range of tones for burglary and fire. Fully assembled and ready to connect to all Sintony and ACP panels.
Certificates
Close menu
Import & Export
Gross weight (KG) 1.31
Purchase unit PCE
EAN/UPC-Code: 4025515476597
Minimum order 1
ECCN N
Material code NDE6:9908440013
Country of origin DE
Net weight 1.245
Statistical code 85311095
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Weight: 1,600 kg
Sound level: 100 dB(A)
Power supply: 12 VDC
Housing material: Aluminium
Frequency: 1,2 Hz
Current consumption: Sirene ca. 350 mA Blitzleuchte ca. 200 mA
Colour: grauweiss (RAL 9002)
Approval: VdS Klasse C; G 199005
Environmental class: IV
Dimensions (L x W x H): 193 x 205 x 88 (mm)
