MK-3400-25 Magn. Kont.,25m,G2

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V54536-F110-A500
EAN/UPC-Code: 4025515478751

Close menu

Product information "MK-3400-25 Magn. Kont.,25m,G2"

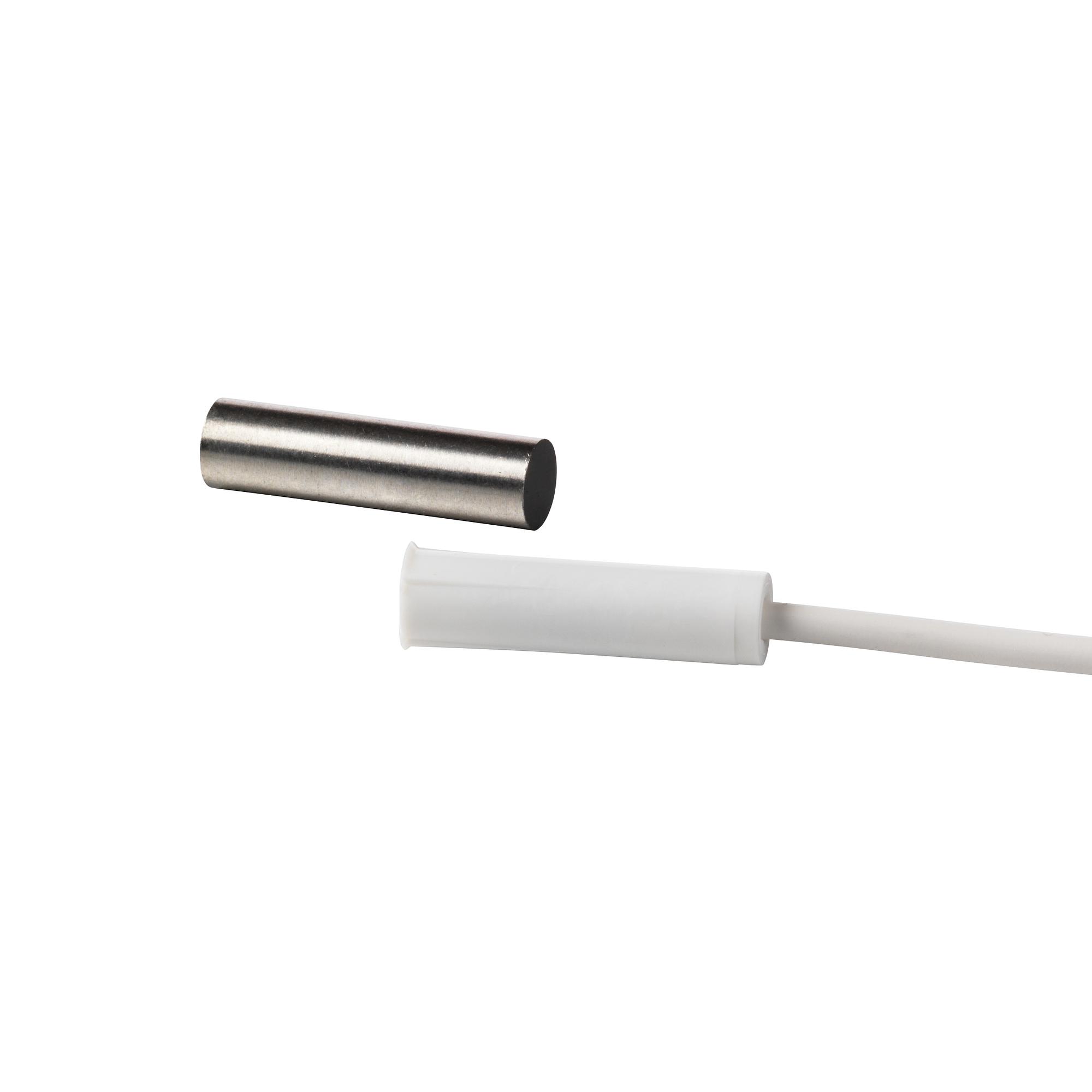

The MK-3000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted in window and door frames of non-magnetic materials or on these. Secondary Packaging: 5 Units

Close menu

Gross weight (KG)	0.415
Purchase unit	PCE
EAN/UPC-Code:	4025515478751
Minimum order	1
ECCN	N
Net weight	0.390
Material code	V54536-F110-A500
Statistical code	85311030
Country of origin	DE

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Cable length:	25 m
Housing material:	ABS
Contact rating:	Max. 5 W
Switching current:	Max. 100 mA
Switching voltage:	Max. 110 VDC
Approval:	VdS Klasse B EN 50131-2-6, Grade 2
Operating temperature:	-40 ~ +70 °C
Environmental class:	III
Housing protection:	IP67
Colour:	White (RAL 9003)
