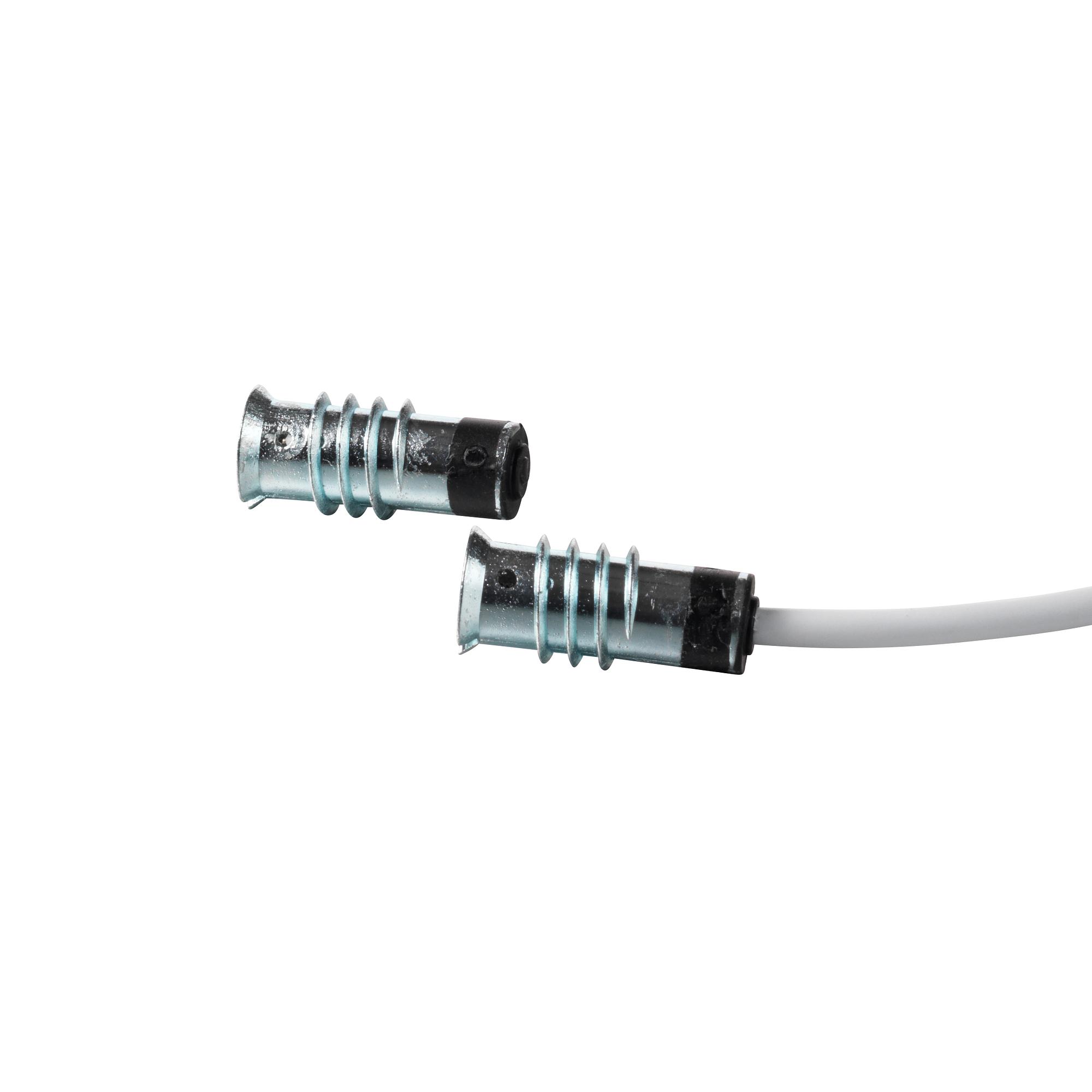

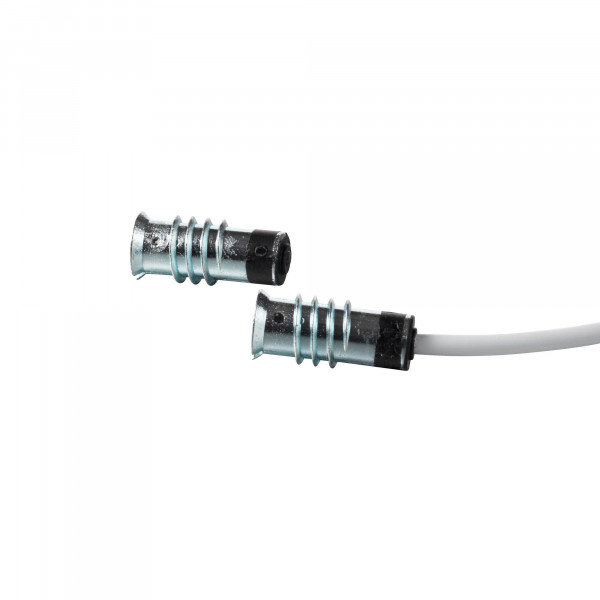

MK-2500-10 Magn. Cont.,10m,G2

Preview: MK-2500-10 Magn. Cont.,10m,G2 Preview: MK-2500-10 Magn. Cont.,10m,G2
MK-2500-10 Magn. Cont.,10m,G2
MK-2500-10 Magn. Cont.,10m,G2

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54536-F107-A300
  • EAN/UPC-Code: 4025515478652
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "MK-2500-10 Magn. Cont.,10m,G2"
The MK-2000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted in window and door frames of non-magnetic materials. Secondary Packaging: 15 Units
Certificates
Close menu
Import & Export
Gross weight (KG) 0.163
Purchase unit PCE
EAN/UPC-Code: 4025515478652
Minimum order 1
ECCN N
Material code V54536-F107-A300
Net weight 0.155
Statistical code 85311030
Country of origin DE
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Contact rating: Max. 10 W
Operating temperature: -40 ~ +70 °C
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Environmental class: III
Housing protection: IP67
Cable length: 6 m
Approval: VdS Klasse B EN 50131-2-6, Grade 2 SBSC Larmklass 1/2
Documentation
Close menu
