SPCN342.000 2G/3G/4G Modulo antena incl.
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54550-B102-A600
- EAN/UPC-Code: 7330082006700

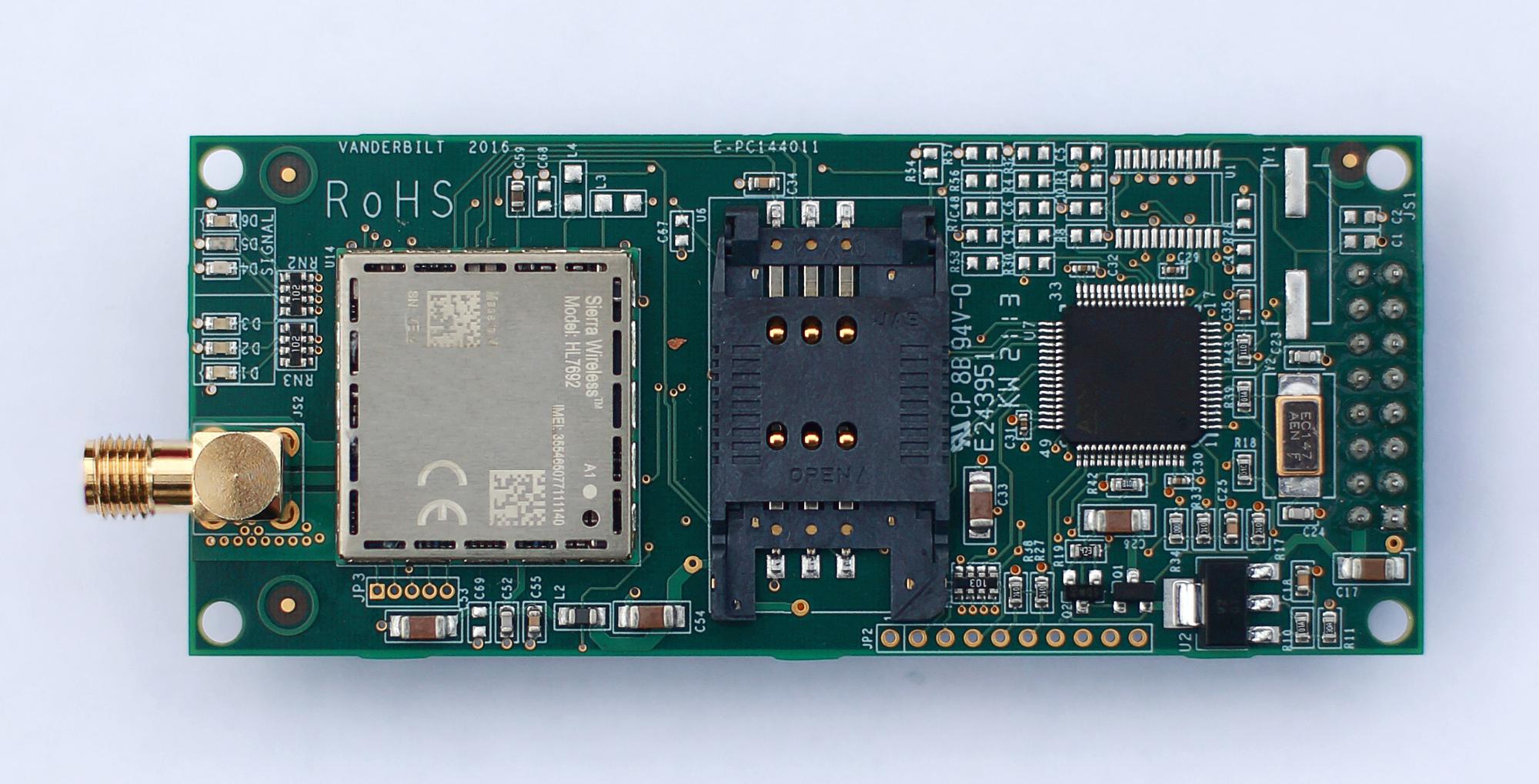

Product information "SPCN342.000 2G/3G/4G Modulo antena incl."
The SPCN342.000 2G/3G/4G module can be assigned to any mobile network by
the insertion of a standard SIM card.
The modem is
compatible with the complete range of acre Intrusion panels and plugs
directly on the main PCB removing the need for any
additional wiring.
The unit comes with an external antenna that fits on the cabinet.
The modem communicates with an alarm
receiving centre (ARC) using IP
based protocols like EDP or FlexC over 2G/3G/4G (FW3.14.1 or later) to
transmit alarm event to
compatible alarm receiving centres.
It also supports PPP connection to acre Intrusion Connect Pro Software for remote
programming
and configuration up-/download.
The SMS feature allows user/engineer to be sent a predefined text when
selected events occur in
the system or receiving of predefined SMS
commands for security system control.
The 2G/3G/4G modem can be used as the primary
source of communication or
as backup to the PSTN modem or IP communication.
Mounting: | Plug on module to acre intrusion controller |
Firmware: | FW3.14.1 or later |
Approval: | EN, VDS |
Relative humidity: | Max. 90 % (non-condensing) |
Operating current: | Max. 130 mA at 12 VDC |
Weight: | 0.130 kg |
Quiescent current: | Max. 40 mA at 12 VDC |
Operating temperature: | -10° ~ +50 °C |
