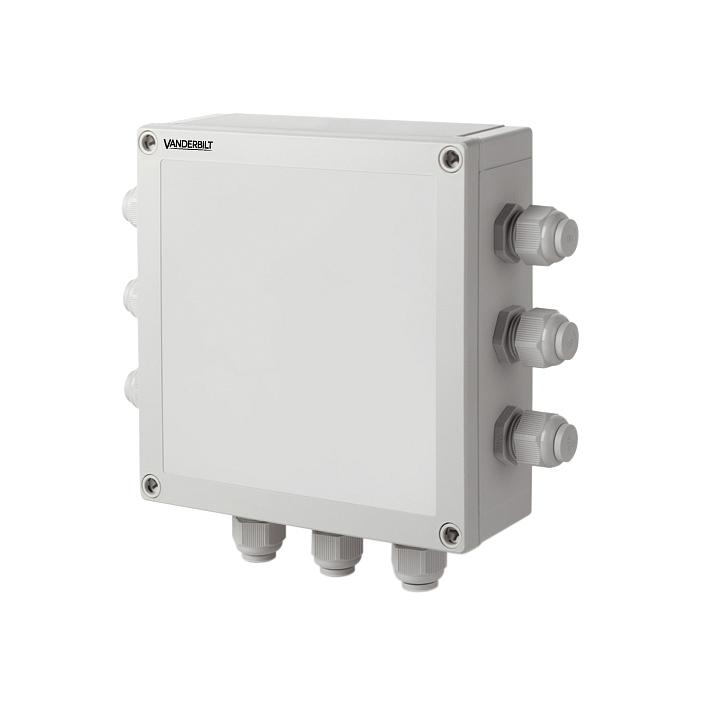

ADD5160 Dual Reader Interface

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • V6FL7820-8CA16
  • 4025515475095
Produkt information "ADD5160 Dual Reader Interface"
The ADD5160 provides an interface between a card reader and the advanced central controller (AC5102 or AC5200) for up to two card readers. When a cardholder presents an access card at an entry or exit reader the ADD5160 reader interface interprets the encoded information and sends this data to the controller. The controller then checks the validity of the cardholder‚ and if the appropriate permissions have been assigned‚ the controller sends a message back to the reader interface allowing it to unlock the door and provide passage. It can also report the status of the door (locked or unlocked) at any time.
Bruttovægt (KG) 1
Købs Enhed PCE
EAN/UPC-Kode: 4025515475095
mindste bestilling 1
Oprindelsesland HU
Materialekode V6FL7820-8CA16
Nettovægt 0.950
Statistisk kode 84733020
Operating voltage: 24 VDC ±20 %
Housing material: Plastic ABS
Interfaces: FLN connection to central controller: RS485 Connection to readers: RS485 bus for max 2 CerPass readers or 2 Clock & Data / Wiegand ports
Weight: 0.5 kg
Indicators: Power, Activity, Communication
Tamper switch: Optional, auxiliary input
Outputs: 1 x Lock output relay (30 VDC, 2 A) 1 x Auxiliary relay (30 VDC, 2 A)
Interface: FLN connection to controller: RS485 To reader: One RS485 bus for up to two RS485 readers (CerPass protocol) OR two Wiegand/Clock&Data ports
Approval: CE
Housing: ABS plastic
Firmware: Flash upgradeable
Inputs: 1 x REX-button 1 x Door contact 3 x Auxiliary All inputs unsupervised or supervised
Power consumption: 25 W
Power output: Reader: 300 mA Ancillary: 1 A
Housing protection: IP66
Dimensions (W x H x D): 180 x 180 x 60 (mm)
