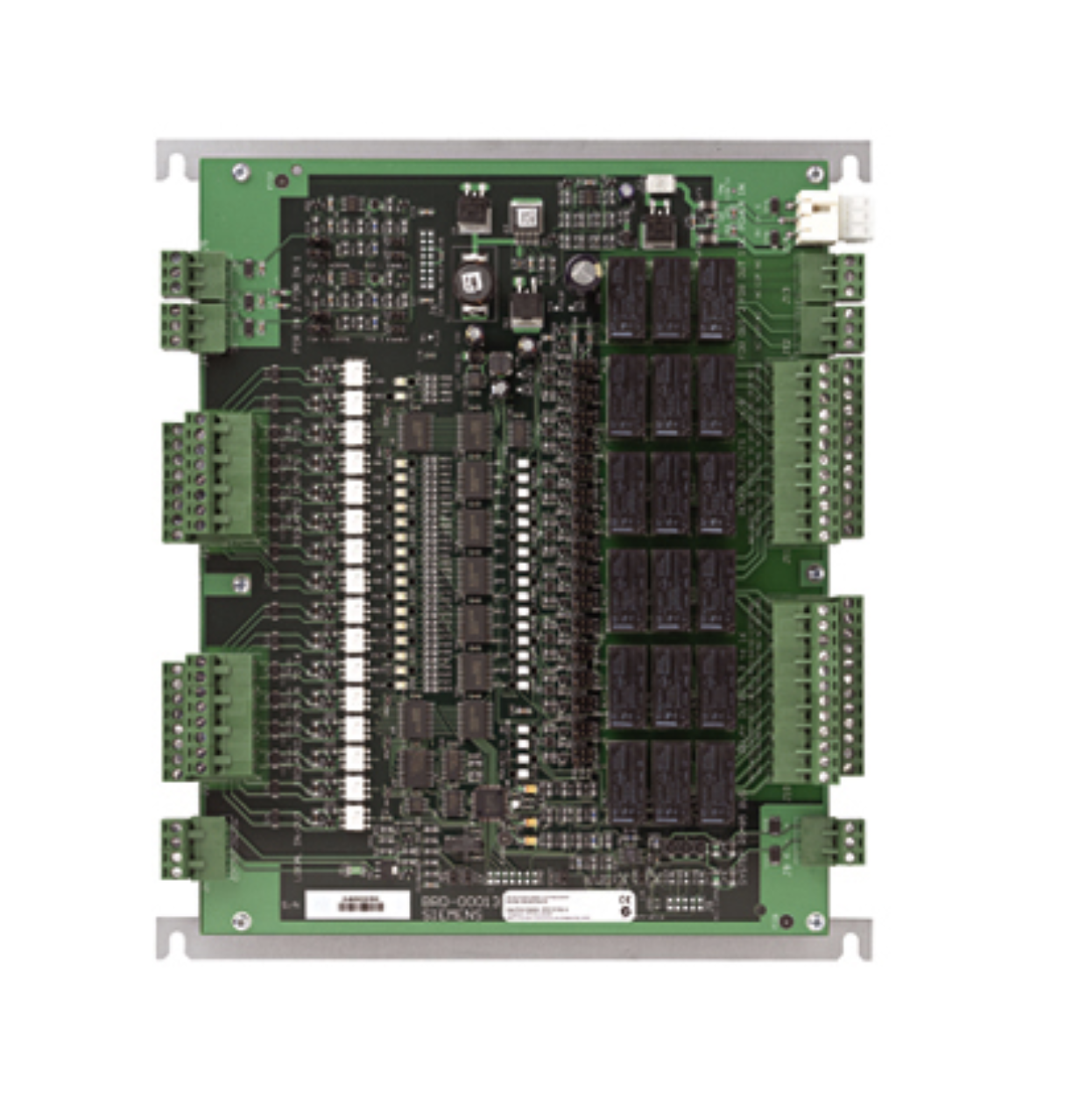

AFO5100 Output Module

AFO5100 Output Module
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V6FL7820-8CC10
  • EAN/UPC-Kode: 4025515475132
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu
Produkt information "AFO5100 Output Module"
The AFO5100 is an advanced‚ multi-purpose module that provides an interface between powered field-level input contact devices (such as elevator buttons) and output devices (such as override mechanisms) to the advanced central controller (AC5100‚ AC5102 or AC5200). It is designed for use in elevators that are integrated within an access control environment. A single AFO5100 can provide access control for up to 16 floors and multiple AFO5100 modules can be combined in an elevator system to provide access control for all floors. The fire override mechanism allows floors to be made automatically accessible during an emergency situation‚ a critical feature for sites where legislation requires strict emergency responses.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 1.47
Købs Enhed PCE
EAN/UPC-Kode: 4025515475132
mindste bestilling 1
Oprindelsesland HU
Materialekode V6FL7820-8CC10
Nettovægt 1.392
Statistisk kode 84733020
ECCN EAR99
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Dimensions (W x H x D): 216 x 267 x 30 mm
Weight: 1.3 kg
Outputs: 16 x Relays (30 VDC‚ 2 A) 1 x Tamper (open-collector 12 VDC‚ 100 mA) 2 x Fire override relays (30 VDC‚ 2 A)
Inputs: 16 x Isolated (unsupervised external voltage required) 1 x Tamper (internally supplied) 2 x Fire override (potential-free or internally supplied)
Indicators: Power‚ Activity‚ Communication Inputs‚ Output Peripheral supplies Fire override
Power consumption: 50 W
Operating voltage: 12 VDC ±10% or 24 VDC ±10%
Interface: To controller: RS485
Interfaces: Al controllore: RS485
Operating temperature: 0 to +50 °C
Approval: CE‚ UL294‚ C-Tick
Firmware: Flash upgradeable
