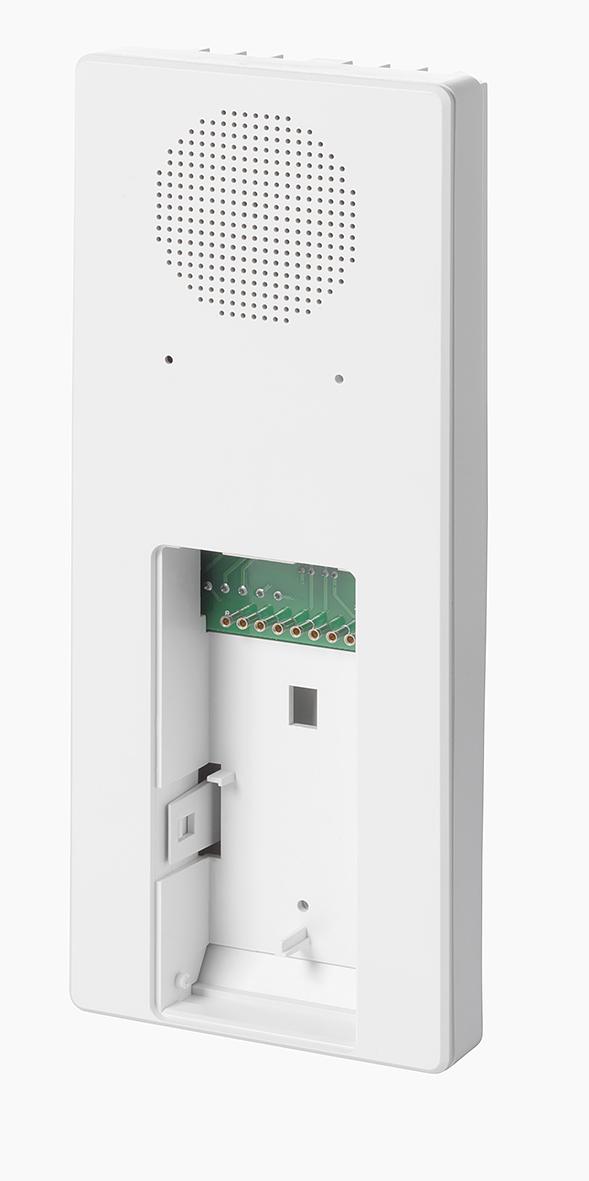

SPCV440.000 Combi Audio Exp. 4 In/1 Out

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • V54542-F118-A100
  • 4025515470908
Produkt information "SPCV440.000 Combi Audio Exp. 4 In/1 Out"
The SPCV440.000 Combi Audio Expander extends the SPC system via X-BUS with an audio verification zone, 4 wired zones and 1 open collector output. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the SPC system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander. In addition any of the MAGIC motion detectors (12m version) seamlessly fit into the prewired device to allow full use of the superb MAGIC motion detector benefits.
Bruttovægt (KG) 0.5
Købs Enhed PCE
EAN/UPC-Kode: 4025515470908
mindste bestilling 1
Statistisk kode 85311030
ECCN 3A991
Materialekode V54542-F118-A100
Nettovægt 0.475
Oprindelsesland RO
Operating temperature: -10 ~ +50 °C
Tamper switch: Front / back spring tamper
Weight: 0.580 kg
Quiescent current: Max. 60 mA at 12 VDC (without satellites or motion detector)
Operating current: Max. 75 mA at 12 VDC (without satellites or motion detector)
Number of on-board zones: 4 (the MAGIC motion detector takes away 1 zone)
Mounting: Flat surface, wall-mounted or corner-mounted at 45 °
Interfaces: X-BUS (in, out), Audio (A+, A-)
Audio: Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators: 1 (red)
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 106 × 261 × 42 (mm)
