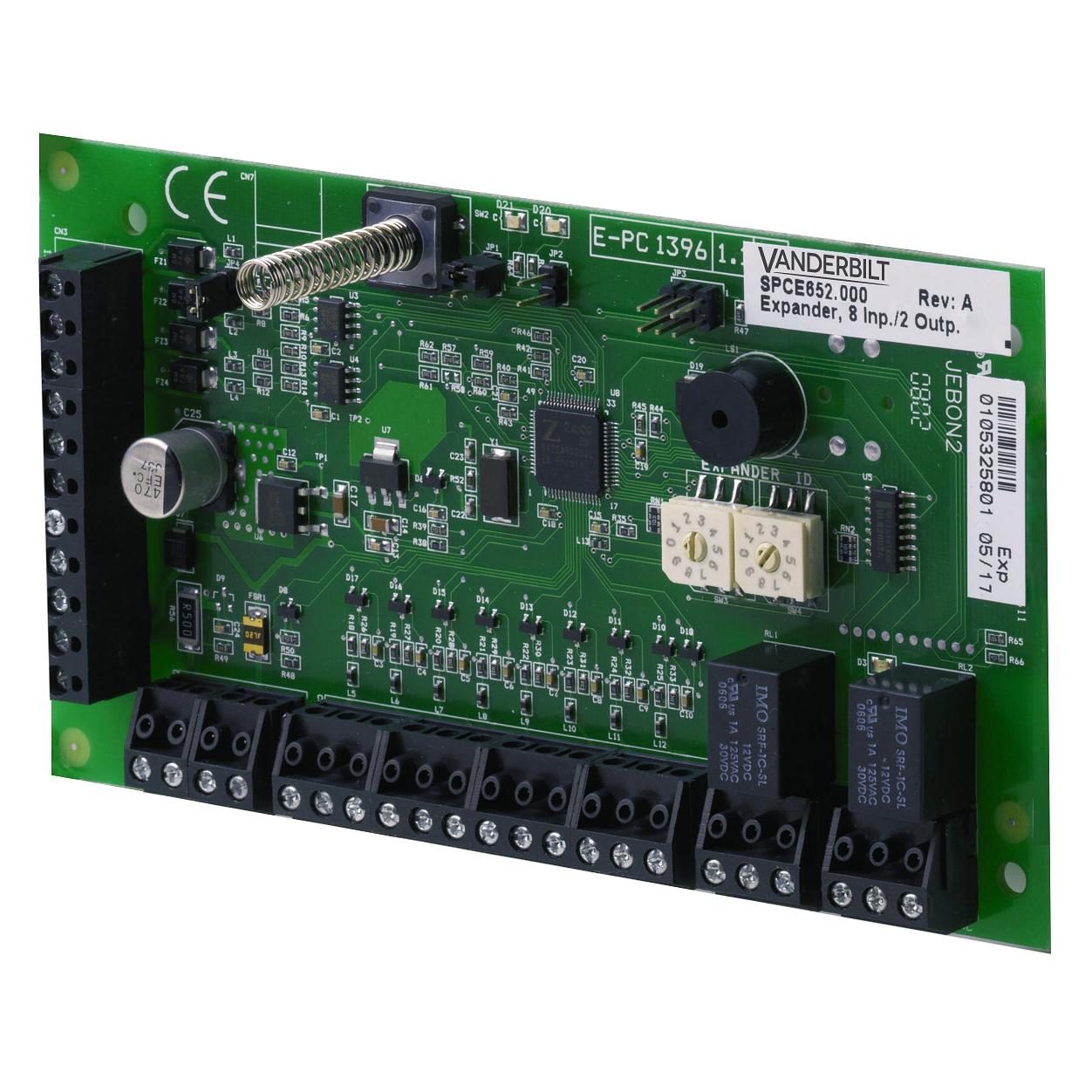

SPCE652.000 Expander board 8 In / 2 Out

SPCE652.000 Expander board 8 In / 2 Out
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54542-F106-A200
  • EAN/UPC-Kode: 4025515479222
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation Software
Beskrivelse
Luk menu
Produkt information "SPCE652.000 Expander board 8 In / 2 Out"
The SPCE652.000 pcb only expander extends the acre Intrusion system via X-BUS with 8 wired zones and 2 fully programmable relay outputs. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander features an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.22
Købs Enhed PCE
EAN/UPC-Kode: 4025515479222
mindste bestilling 1
ECCN N
Materialekode V54542-F106-A200
Statistisk kode 85311030
Nettovægt 0.100
Oprindelsesland PH
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Weight: 0.1000 kg
Mounting: In SPC G2 and G3 cabinets or SPC expander housings
Tamper contact: Front spring tamper, back tamper - provided in kit bag
Quiescent current: Max. 40 mA at 12 VDC
Operating current: Max. 80 mA at 12 VDC (all relays activated)
Interfaces: X-BUS (in, out, branch)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Number of on-board zones: 8
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 150 x 82 x 20 mm (PCB)
