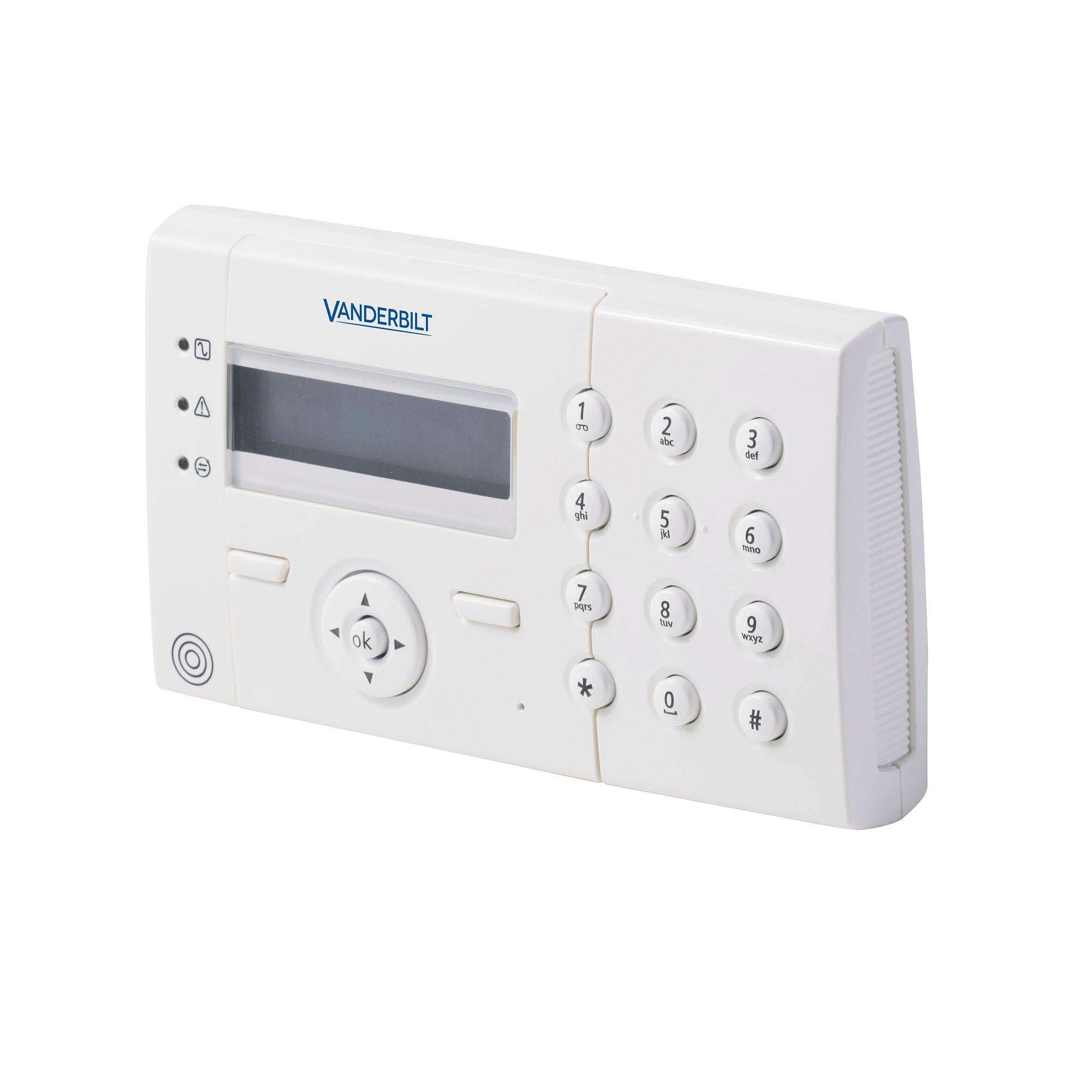

SPCK421.100 LCD keypad.2x16 Char,CR

SPCK421.100 LCD keypad.2x16 Char,CR
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54543-F102-A100
  • EAN/UPC-Kode: 4025515470953
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation Software
Beskrivelse
Luk menu
Produkt information "SPCK421.100 LCD keypad.2x16 Char,CR"
The SPCK421.100 LCD keypad with integrated card reader provides the user with an iconic interface to control the security system. Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key operation and data input directly from the keypad. The card reader enables quick setting / unsetting of areas by use of a proximity card only or in combination with a valid user PIN.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.26
Købs Enhed PCE
EAN/UPC-Kode: 4025515470953
mindste bestilling 1
ECCN N
Materialekode V54543-F102-A100
Statistisk kode 85311030
Nettovægt 0.247
Oprindelsesland PH
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Tamper switch: Front / back spring tamper
Operating temperature: -5 ~ +40 °C
Quiescent current: Max. 80 mA at 12 VDC
Operating current: Max. 110 mA at 12 VDC (backlight, LEDs, sounder, reader operated)
Housing: Plastic housing (ABS)
Weight: 0.210 kg
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Interfaces: X-BUS (in, out)
LED Indicators: 3 status LEDs
LCD Display: 2 x 16 characters
Dimensions (W x H x D): 148 x 85 x 33 (mm)
Dokumentation
Luk menu
Software
Luk menu
