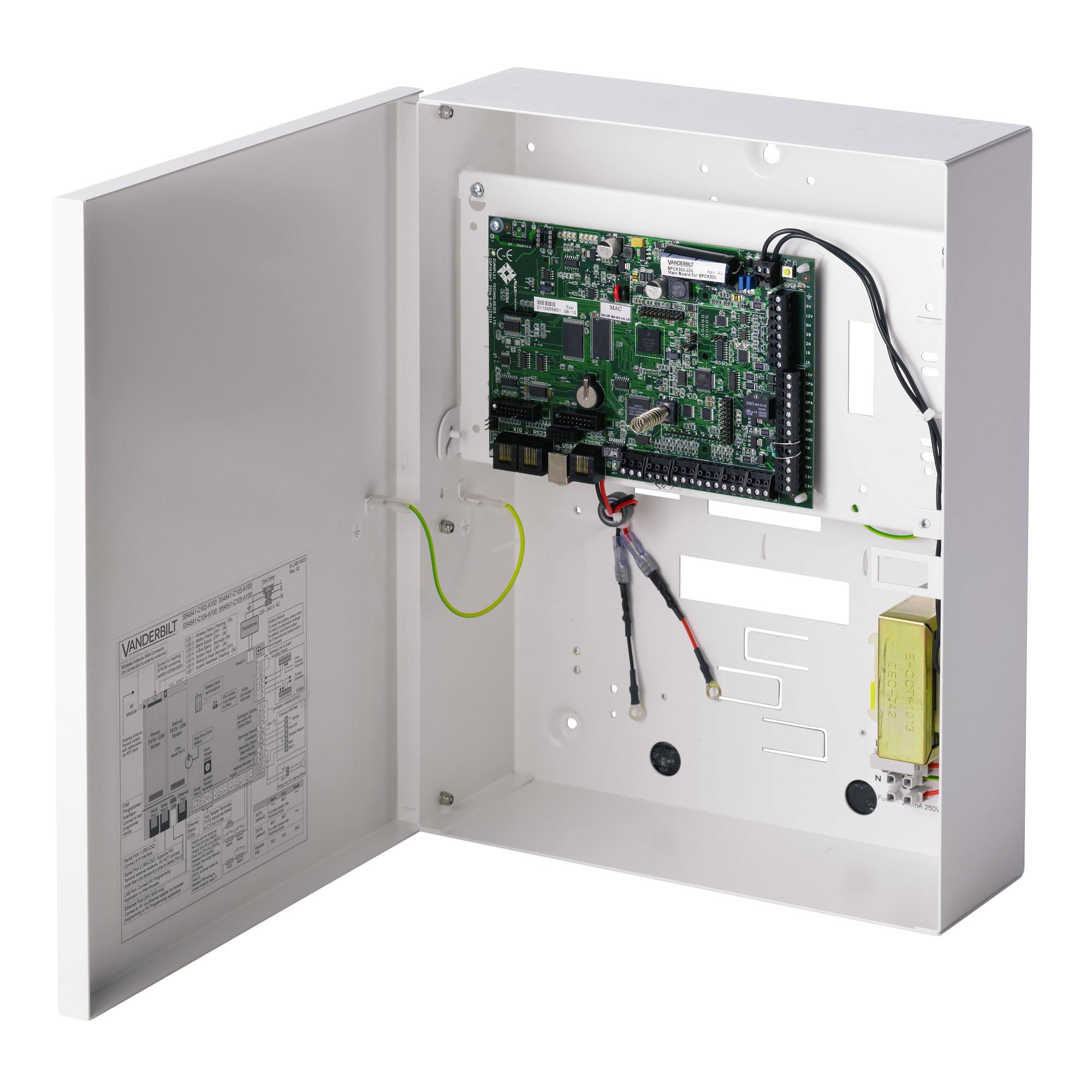

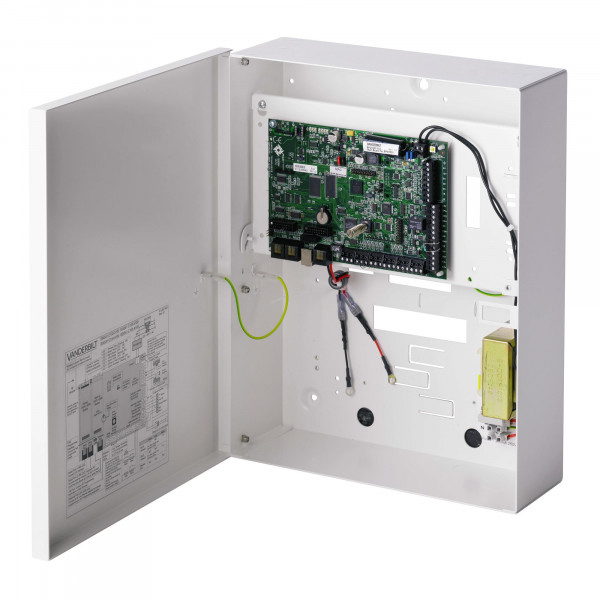

SPC6330.320-L1 Intrusion CP,G3

SPC6330.320-L1 Intrusion CP,G3
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54541-C105-C100
  • EAN/UPC-Kode: 4025515470724
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation Software
Beskrivelse
Luk menu
Produkt information "SPC6330.320-L1 Intrusion CP,G3"
The SPC6330.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 512 zones (8 on-board), 512 outputs (6 on-board), 32 system keypads, 64 doors, 16 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 60 areas, 2500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 64 detectors (mixed with wired zones). The panel comes in a tamper protected and hinged metal housing with space for optional 17 Ah battery and 4 additional expanders.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 7.4
Købs Enhed PCE
EAN/UPC-Kode: 4025515470724
mindste bestilling 1
ECCN N
Nettovægt 7.000
Statistisk kode 85311030
Oprindelsesland PH
Materialekode V54541-C105-C100
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Output voltage: 13-14 VDC in normal conditions (mains powered and fully charged battery)
Verification: 16 verification zones with max. 4 IP-cameras and 16 audio devices.
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.)
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Interfaces: 2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45)
Tamper contact: Front spring tamper, back tamper, 1 auxiliary tamper contact input
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Operating current: Max. 190 mA at 12 VDC
Quiescent current: Max. 170 mA at 12 VDC
Operating temperature: 0 ~ +40 °C
Number of on-board relays: 1 strobe (30 VDC / 1 A resistive switching current)
Weight: 6.400 kg
Housing: Hinged metal housing (1.2 mm mild steel)
Approval: EN50131-1 / EN50131-3 / EN50131-6, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2
Power output: Max. 750 mA bei 12 VDC
IP-Communication: Yes
Max. number of wireless zones: 64 (take away wired zones)
Door capacity: Max. 64 entry doors or 32 entry/exit doors
EOL resistor: Dual 4K7 (default), other resistor combinations selectable
Max. number of hardwired zones: 512
Colour: RAL 9003 (signal white)
Firmware: V3.6
Remote controls: Up to 100
Event memory: 10'000 intrusion events, 10'000 access events
Language: Multi-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv.
Number of on-board zones: 8
Dimensions (W x H x D): 326 x 415 x 114 (mm)
