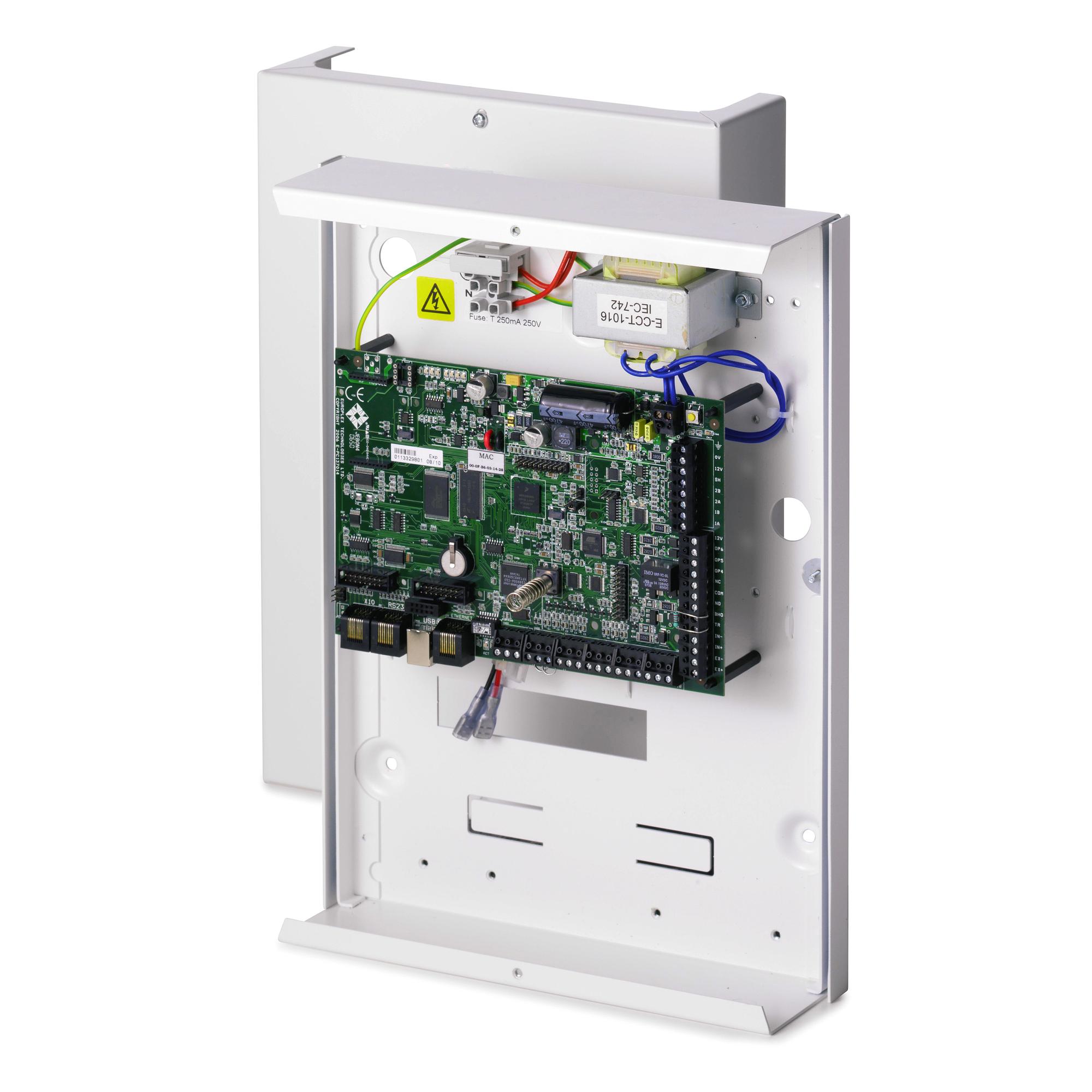

SPC5320.320-L1 Intrusion CP,G2

SPC5320.320-L1 Intrusion CP,G2
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54541-C106-B100
  • EAN/UPC-Kode: 4025515470731
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation Software nyttige links
Beskrivelse
Luk menu
Produkt information "SPC5320.320-L1 Intrusion CP,G2"
The SPC5320.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 128 zones (8 on-board), 128 outputs (6 on-board), 16 system keypads, 16 doors, 8 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 16 areas, 500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 64 detectors (mixed with wired zones). The panel comes in a tamper protected metal housing with space for optional 7 Ah battery and 1 additional expander.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 4.7
Købs Enhed PCE
EAN/UPC-Kode: 4025515470731
mindste bestilling 1
ECCN N
Statistisk kode 85311030
Oprindelsesland PH
Nettovægt 4.465
Materialekode V54541-C106-B100
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Verification: 8 verification zones with max. 4 IP-cameras and 8 audio devices.
Operating current: Max. 190 mA at 12 VDC
Quiescent current: Max. 170 mA at 12 VDC
Output voltage: 13-14 VDC in normal conditions (mains powered and fully charged battery)
Operating temperature: 0 ~ +40 °C
Power output: Max. 750 mA bei 12 VDC
Remote controls: Up to 50
Max. number of hardwired zones: 128
Door capacity: Max. 16 entry doors or 8 entry/exit doors
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.)
Interfaces: 2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45)
Tamper contact: Front spring tamper, 2 auxiliary tamper contact inputs
Weight: 4.500 kg
Housing: Small metal housing (1.2 mm mild steel)
Approval: EN50131-1 / EN50131-3 / EN50131-6, Grade 2, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2
IP-Communication: Yes
Language: Multi-language support (en + 4 imported language files).Available language files: de, en, es, fr, it, nl, sv.
Max. number of wireless zones: 64 (take away wired zones)
Firmware: 3.8.5
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Number of on-board relays: 1 strobe (30 VDC / 1 A resistive switching current)
Colour: RAL 9003 (signal white)
Event memory: 10'000 intrusion events, 10'000 access events
Number of on-board zones: 8
EOL resistor: Dual 4K7 (default), other resistor combinations selectable
Dimensions (W x H x D): 264 x 357 x 81 (mm)
