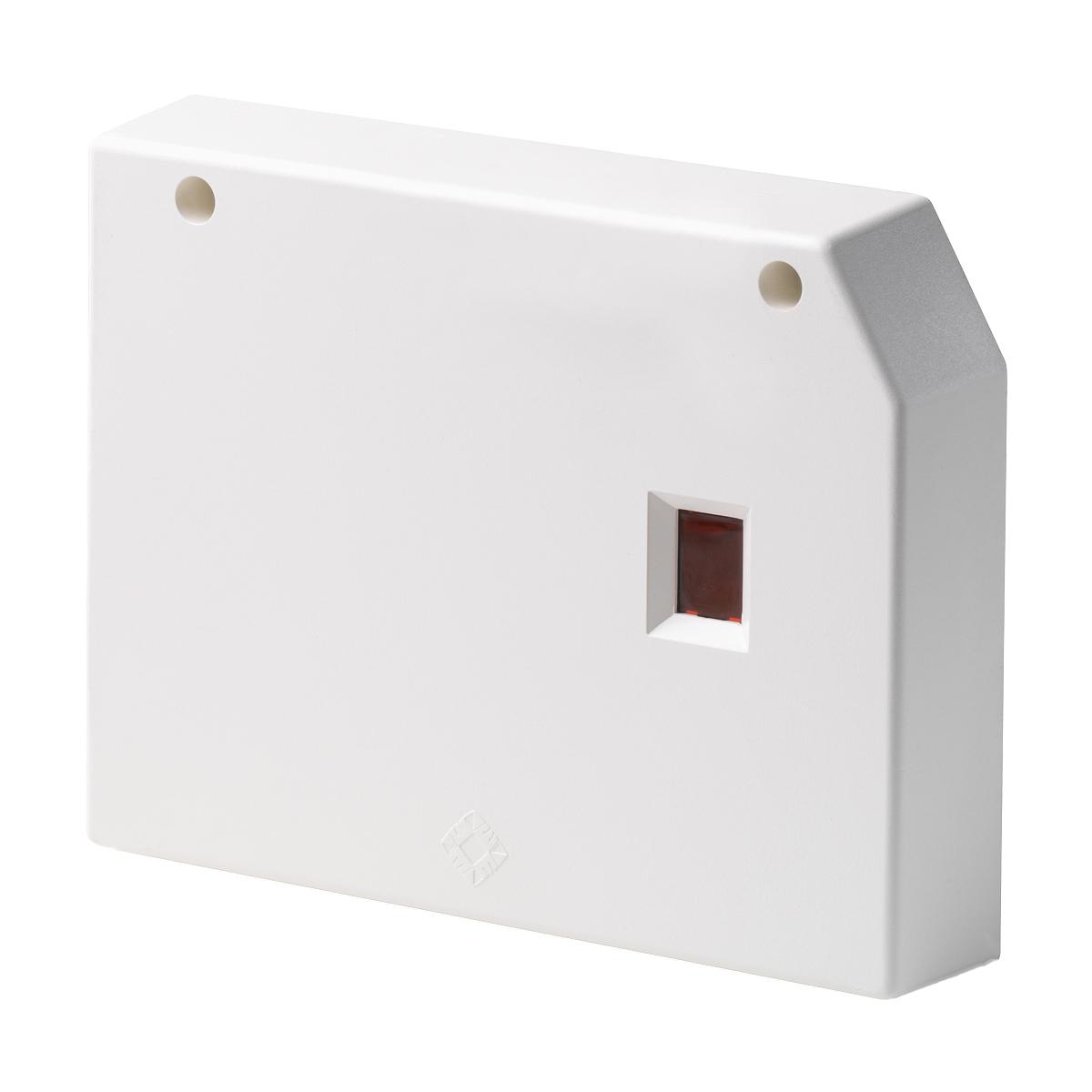

SPCA210.100 2-Door expander

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • V54547-A101-A100
  • 4025515471189
Produkt information "SPCA210.100 2-Door expander"
The SPCA210.100 2-door expander extends the SPC controller with advanced door control functionality for 2 entry doors or 1 entry/exit door. The device features 2 Wiegand/Clock&Data interfaces, 4 LED control outputs (1 void / valid per reader), 4 zones (1 position- and 1 opening switch per door), 2 relay outputs (1 lock per door) and an on-board buzzer to signal "door open too long" events.To allow greatest flexibility, the zones and outputs are freely programmable for other purposes if not used for door control. Up to 512 priority card holders can be stored on the expander for standalone operation in case of communication loss to the control panel. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Bruttovægt (KG) 0.54
Købs Enhed PCE
EAN/UPC-Kode: 4025515471189
mindste bestilling 1
ECCN N
Statistisk kode 85311030
Oprindelsesland PH
Materialekode V54547-A101-A100
Nettovægt 0.513
Tamper switch: Ja
Approval: CH: FFIS bis Kat. 1
Weight: 0.360 kg
Operating current: Max. 80 mA at 12 VDC (all relays activated)
Tamper contact: Front spring tamper
Interfaces: X-BUS (in, out, branch), Reader 1, Reader 2
LED Indicators: 4 outputs (1 void and 1 valid per reader)
Number of on-board relays: 2, for door locks or freely programmable (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Number of on-board zones: 4, for door release switch (DRS) and door position switch (DPS), or freely programmable
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Quiescent current: Max. 45 mA at 12 VDC
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 200 x 153 x 47 mm (housing), 150 x 82 x 20 mm (PCB)
