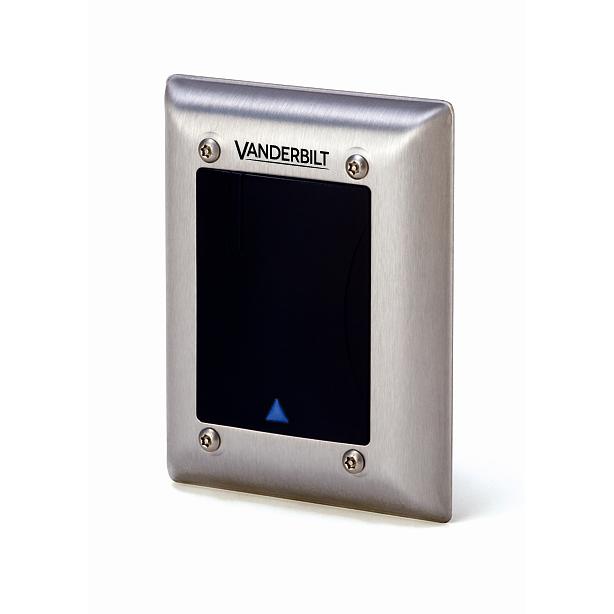

HD500-EM Prox 125kHz Reader Heavy Duty

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • V24246-F3901-A1
  • 4025515473497
Produkt information "HD500-EM Prox 125kHz Reader Heavy Duty"
The HD500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). Vandal-proof and fire-resistant, it is popular both in vulnerable locations and modern office environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Bruttovægt (KG) 0.33
Købs Enhed PCE
EAN/UPC-Kode: 4025515473497
mindste bestilling 1
Oprindelsesland PH
ECCN EAR99
Statistisk kode 84716070
Nettovægt 0.314
Materialekode V24246-F3901-A1
Weight: 0.24 kg
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
Card compatibility: IB41-EM, IB42-EM IB44-EM, IB45-EM
Card read distance: Up to 6 cm
Current consumption: 20 mA @ 12V DC 22 mA @ 24V DC
Colour: Black and stainless steel
Tamper protection: No
Operating voltage: 10.6 to 32 VDC
Housing material: Polycarbonate case, fully encapsulated electronics, stainless steel outer frame
Housing protection (EN 60529): IP65
Housing: Polycarbonate case, fully encapsulated electronics, stainless steel outer frame
Housing protection: IP65
Operating temperature: -30 ~ +50 °C
Environment: Indoor or outdoor use
Tamper switch: No
Keypad: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Dimensions (W x H x D): 100 x 128 x 18 (mm)
