SPCK420.100-N LCD-KP 2x16 Char, Neutr.

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • V54543-F101-B100
  • 4025515470946
Produkt information "SPCK420.100-N LCD-KP 2x16 Char, Neutr."

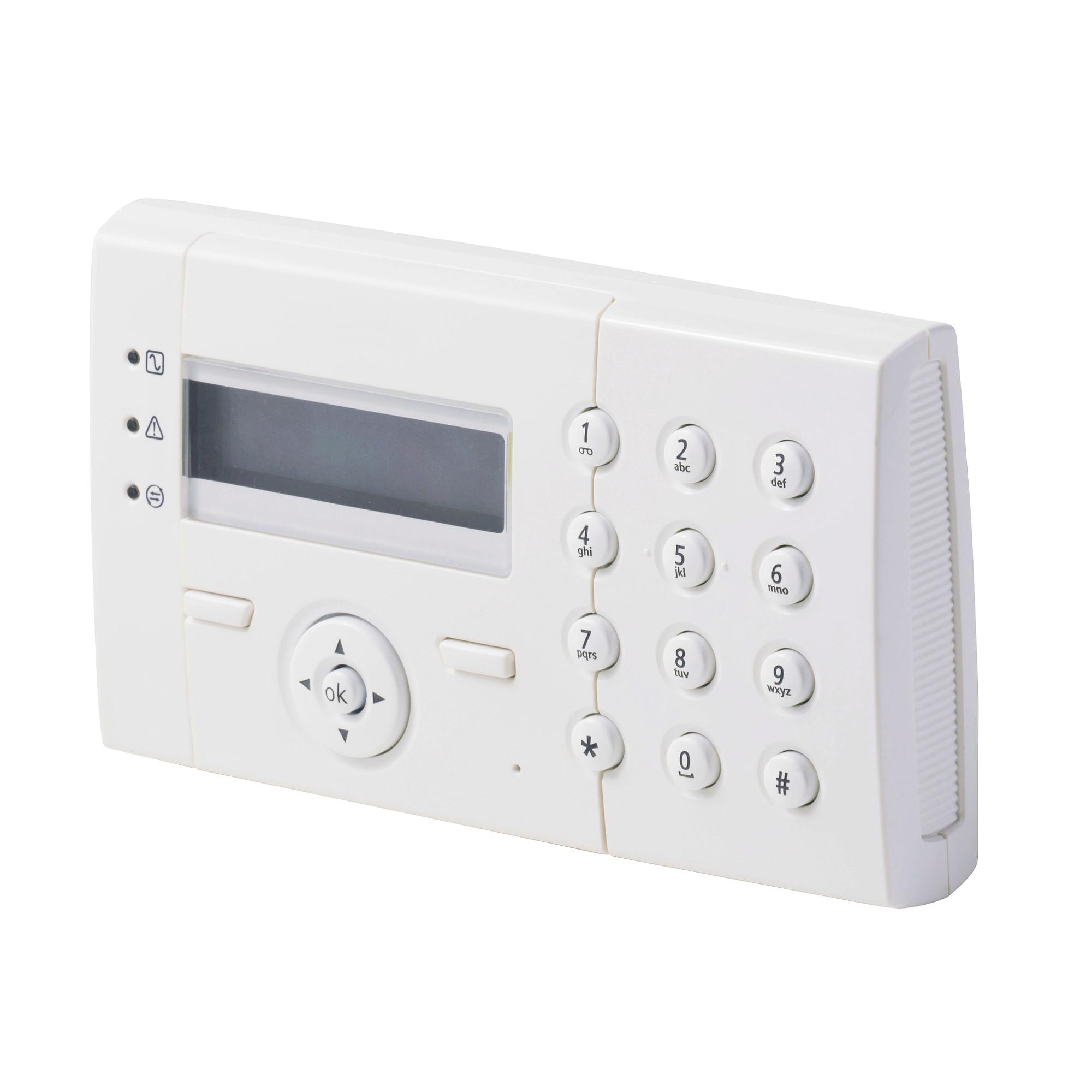

The SPCK420.100 LCD keypad provides the user with an iconic interface to control the security system. Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key operation and data input directly from the keypad. The keypad comes as neutral version without printed logo.
Bruttovægt (KG) 0.25
Købs Enhed PCE
EAN/UPC-Kode: 4025515470946
mindste bestilling 1
ECCN N
Materialekode V54543-F101-B100
Statistisk kode 85311030
Nettovægt 0.238
Oprindelsesland PH
Approval: AT: VSÖ Klasse GS-N, Nr.: GS-N 130603/77 E mit SPC5330.320
Housing: Plastic housing (ABS), no logo
Tamper protection: Front / back spring tamper
Weight: 0.210 kg
Colour: RAL 9003 (signal white)
Operating temperature: 5° ~ +40 °C
Mounting: Flat surface, wall-mounted
Quiescent current: Max. 45 mA at 12 VDC
Operating current: Max. 90 mA at 12 VDC (backlight, LEDs, sounder operated)
Operating voltage: 9.5 ~ 14 VDC
Interfaces: X-BUS (in, out)
LED Indicators: 3 status LEDs
LCD Display: 2 x 16 characters
Dimensions (W x H x D): 148 x 85 x 33 mm
