SPCW130.100 SiWay RF-Expander

Forhåndsvisning: SPCW130.100 SiWay RF-Expander Forhåndsvisning: SPCW130.100 SiWay RF-Expander Forhåndsvisning: SPCW130.100 SiWay RF-Expander Forhåndsvisning: SPCW130.100 SiWay RF-Expander Forhåndsvisning: SPCW130.100 SiWay RF-Expander Forhåndsvisning: SPCW130.100 SiWay RF-Expander Forhåndsvisning: SPCW130.100 SiWay RF-Expander Forhåndsvisning: SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54554-F101-B100
  • EAN/UPC-Kode: 4025515471196
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu
Produkt information "SPCW130.100 SiWay RF-Expander"

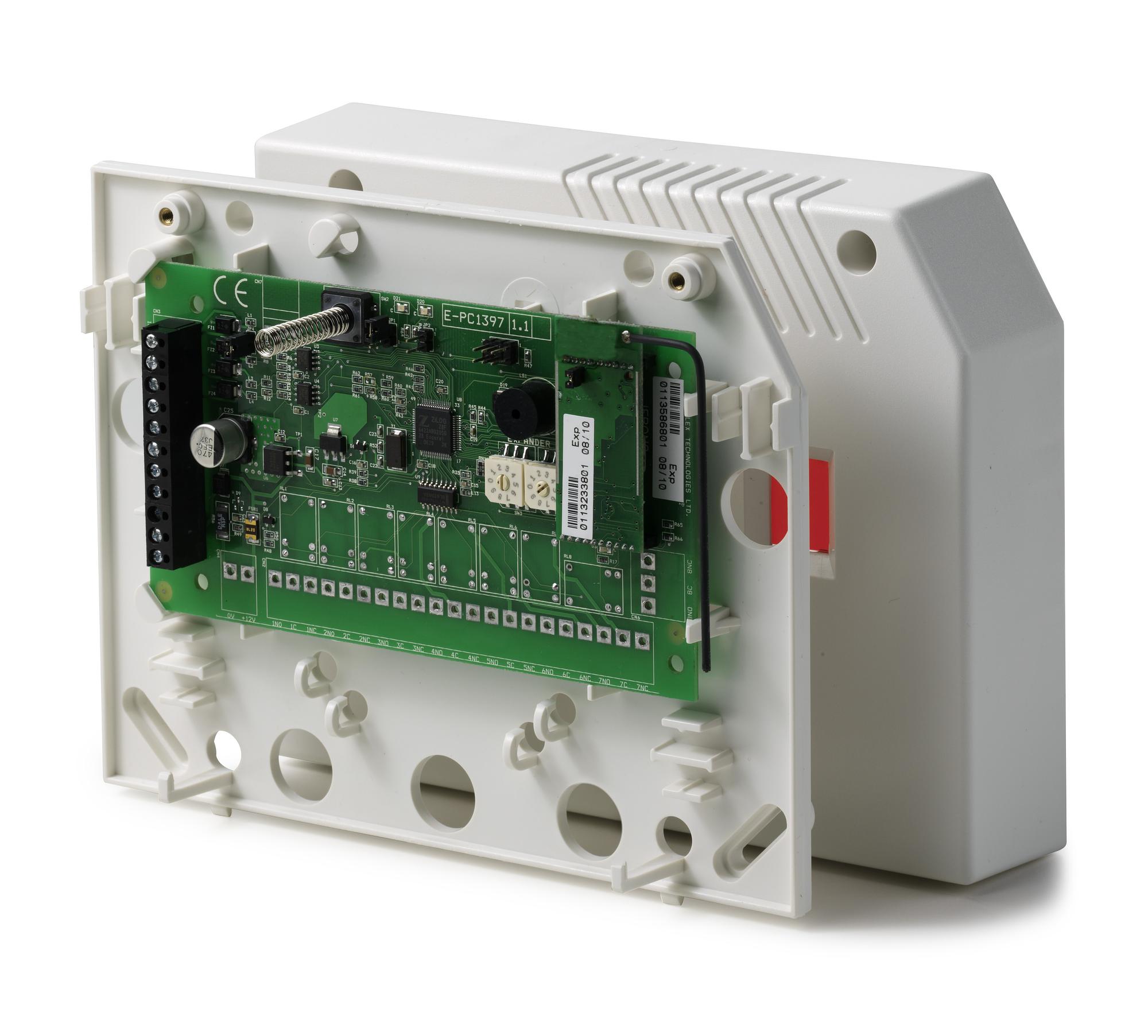

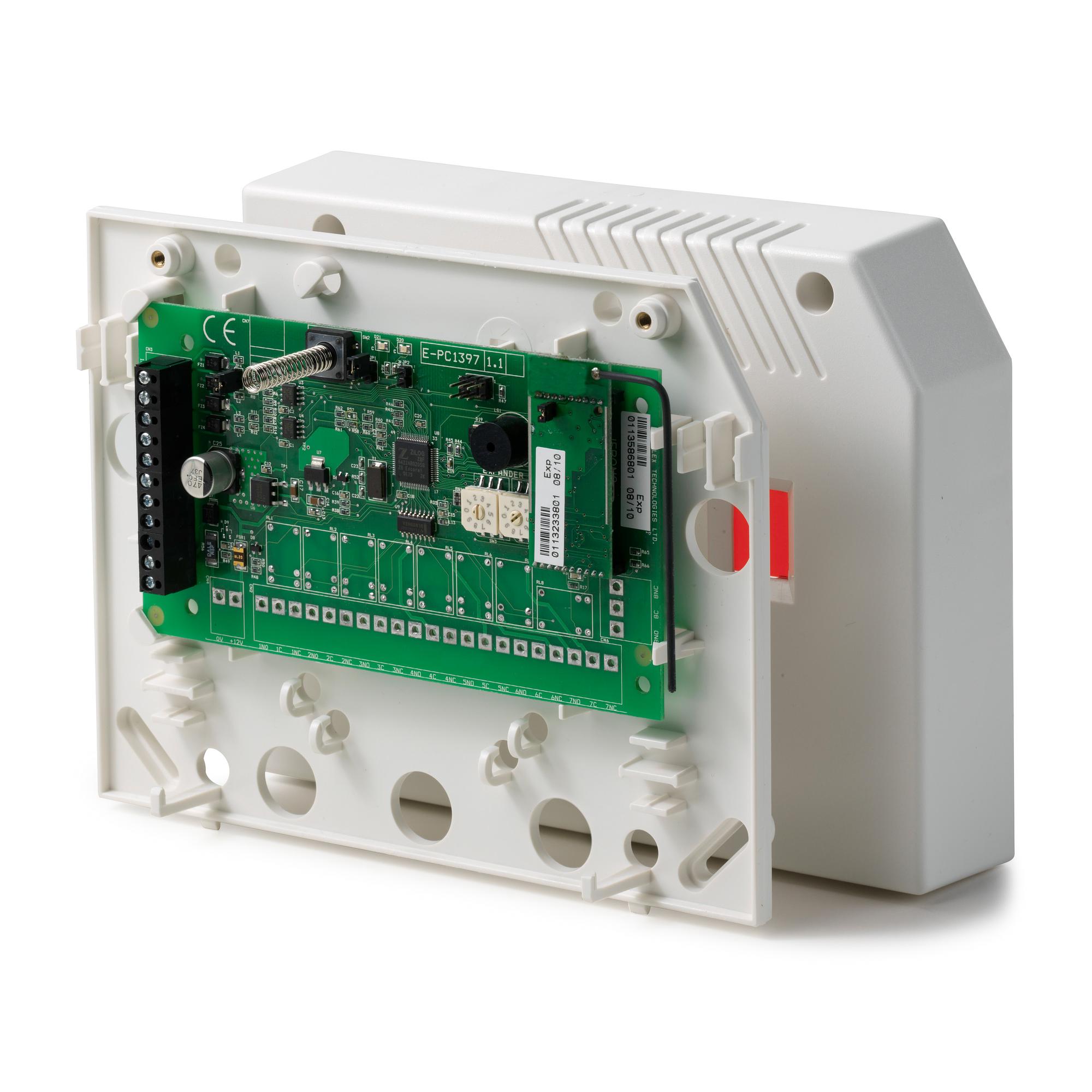

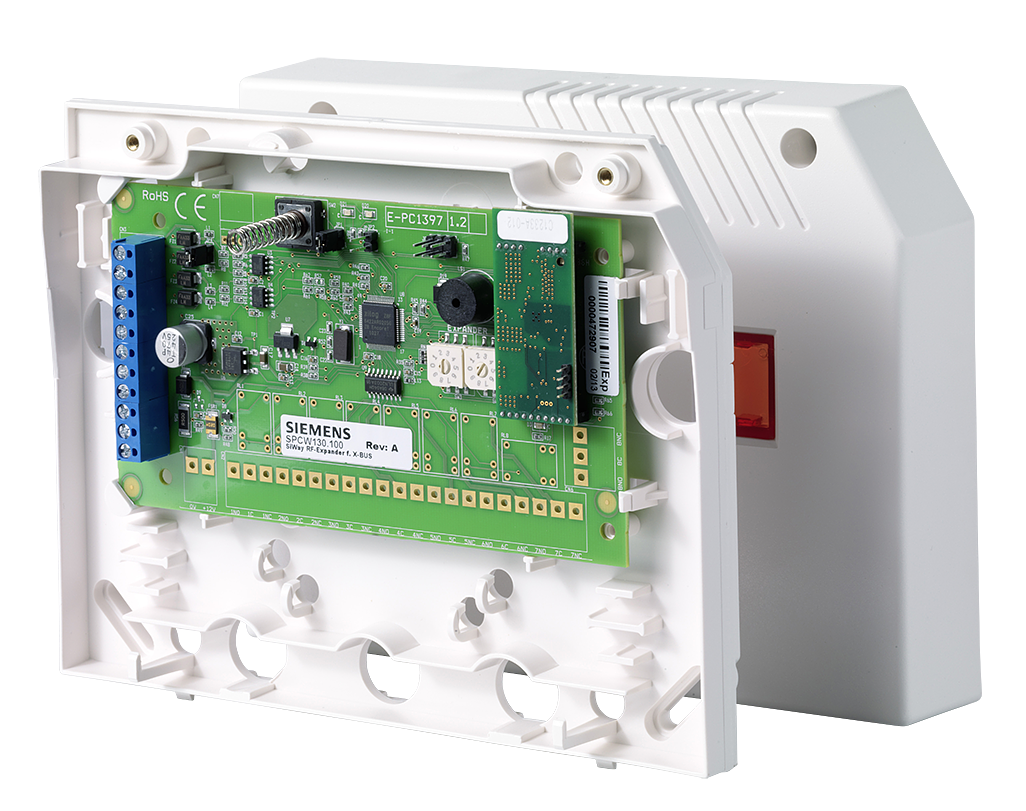

The SPCW130.100 SiWay RF-expander is connected to the X-BUS and provides a wireless access point for the Intrunet wireless detectors and remote controls linked to the system.The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.4
Købs Enhed PCE
EAN/UPC-Kode: 4025515471196
mindste bestilling 1
ECCN N
Materialekode V54554-F101-B100
Statistisk kode 85311030
Nettovægt 0.380
Oprindelsesland PH
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Quiescent current: Max. 60 mA at 12 VDC
Operating current: Max. 60 mA at 12 VDC
Weight: 0.340 kg
Interfaces: X-BUS (in, out, branch)
Tamper contact: Front spring tamper
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Tamper switch: Ja
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 200 x 153 x 47 (mm) (housing),150 x 82 x 20 mm (PCB)
