SPCP332.300 Smart PSU (7AH) w. I/O-Exp.

SPCP332.300 Smart PSU (7AH) w. I/O-Exp.
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54545-C102-A100
  • EAN/UPC-Kode: 4025515471028
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation Software
Beskrivelse
Luk menu
Produkt information "SPCP332.300 Smart PSU (7AH) w. I/O-Exp."

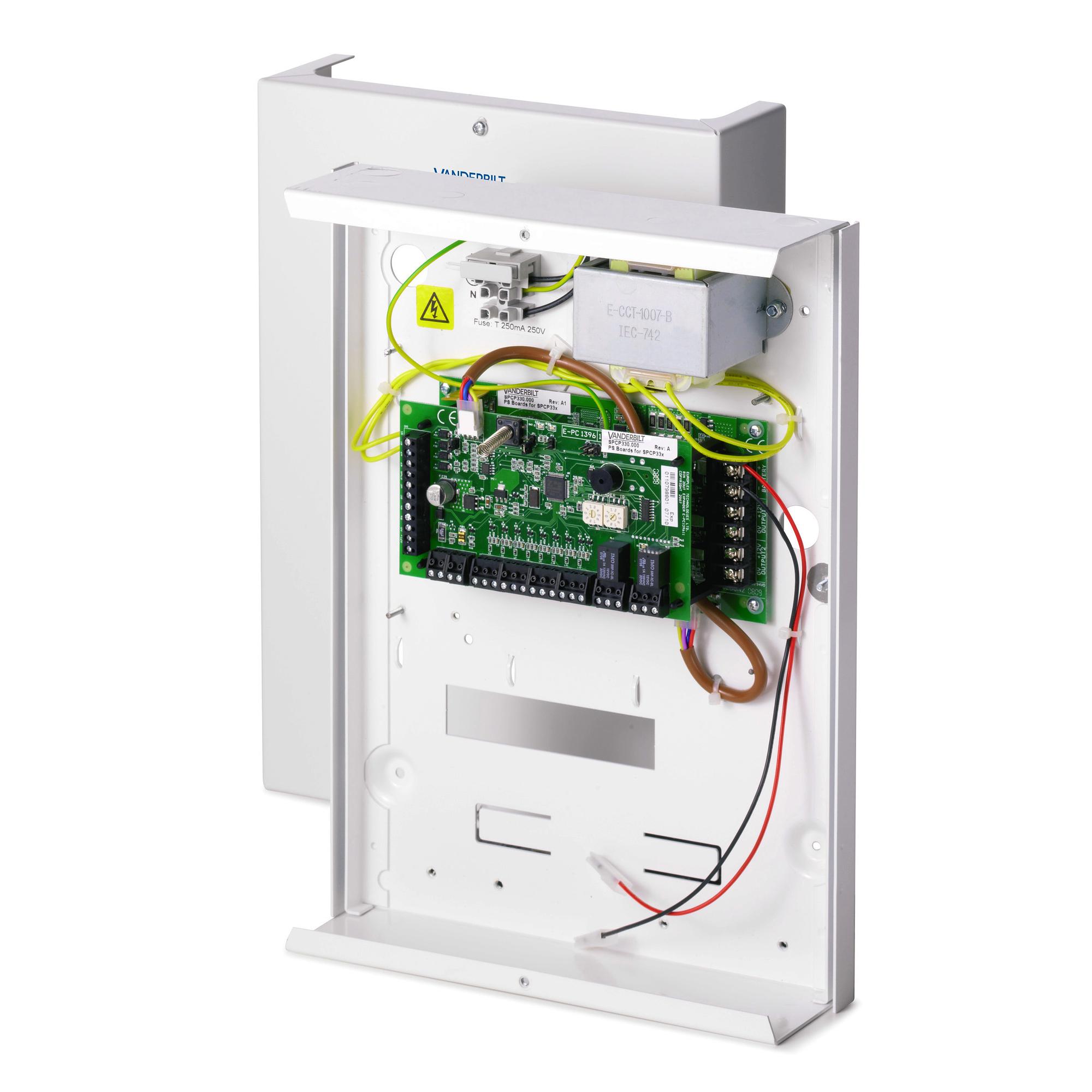

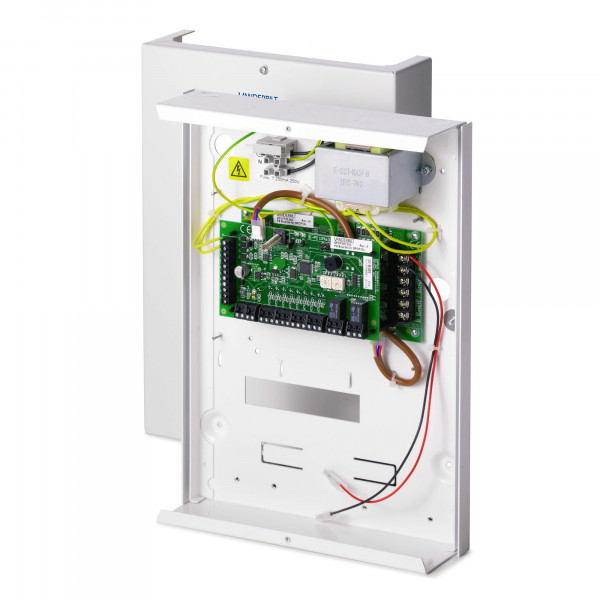

The SPCP332.300 smart power supply expander (PSU) extends the acre Intrusion system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders), 8 wired zones and 2 fully programmable relay outputs. The PSU comes in a tamper protected metal housing with space for an optional 7 Ah battery.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 5.3
Købs Enhed PCE
EAN/UPC-Kode: 4025515471028
mindste bestilling 1
ECCN N
Statistisk kode 85389099
Oprindelsesland PH
Materialekode V54545-C102-A100
Nettovægt 5.035
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Weight: 4.700 kg
Quiescent current: Max. 77mA at 12 VDC
Output voltage: 11-14 VDC in normal conditions (mains powered and fully charged battery)
Operating current: Max. 117 mA at 12 VDC (all relays activated)
Number of on-board relays: 2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Interfaces: X-BUS (in, out, branch)
Power output: Max. 1500 mA bei 12 VDC (750 mA pro Ausgang)
Tamper contact: Front spring tamper
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Housing: Small metal housing (1.2 mm mild steel)
Operating temperature: 0 ~ +40 °C
Number of on-board zones: 8
Colour: RAL 9003 (signal white)
Dimensions (W x H x D): 264 x 357 x 81 mm
