SPCE120.100 Indication Expander w. CR

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • V54542-F105-A100
  • 4025515470847

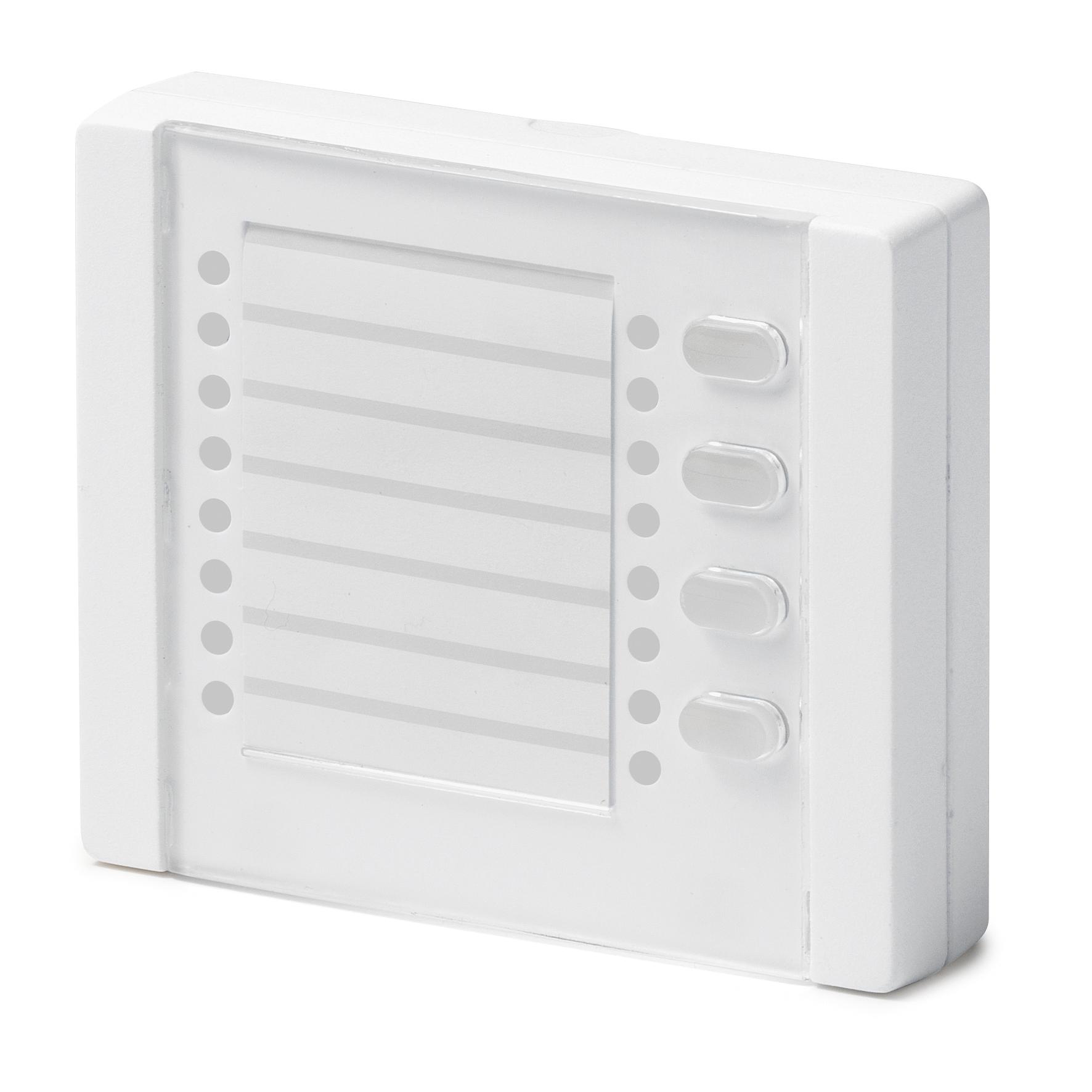

Produkt information "SPCE120.100 Indication Expander w. CR"
The SPCE120.100 is a universal display expander with 16 tri-color LEDs, 4 keys, integrated card reader and buzzer. In linked mode with a keypad the LEDs indicate the status of 4 areas in one glance and the areas can be directly set or unset with the assigned function keys. In flexible mode the freely programmable user interface indicates the configured status information with LEDs (e.g. open zones, area setting states) and enables activation of application specific processes by pressing the assigned function keys (e.g. setting of an area, open or close a gate). With the integrated card reader the indication or operation can be enabled for authorised users only by presenting a valid proximity card. The expander also provides one freely programmable zone which can be configured for different zone monitoring requirements.
Bruttovægt (KG) 0.41
Købs Enhed PCE
EAN/UPC-Kode: 4025515470847
mindste bestilling 1
Materialekode V54542-F105-A100
Statistisk kode 85311030
Nettovægt 0.390
Oprindelsesland PH
Operating temperature: -10 ~ +50 °C
Weight: 0.190 kg
Operating current: Max. 70 mA at 12 VDC (LEDs operated)
LED Indicators: 16 tri-colour LEDs
Number of on-board zones: 1
Quiescent current: Max. 30 mA at 12 VDC
Approval: EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C
Housing: Plastic housing (Polycarbonate)
Tamper contact: Front / back tamper
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Interfaces: X-BUS (in, out)
Dimensions (W x H x D): 112 x 92 x 28 (mm)
